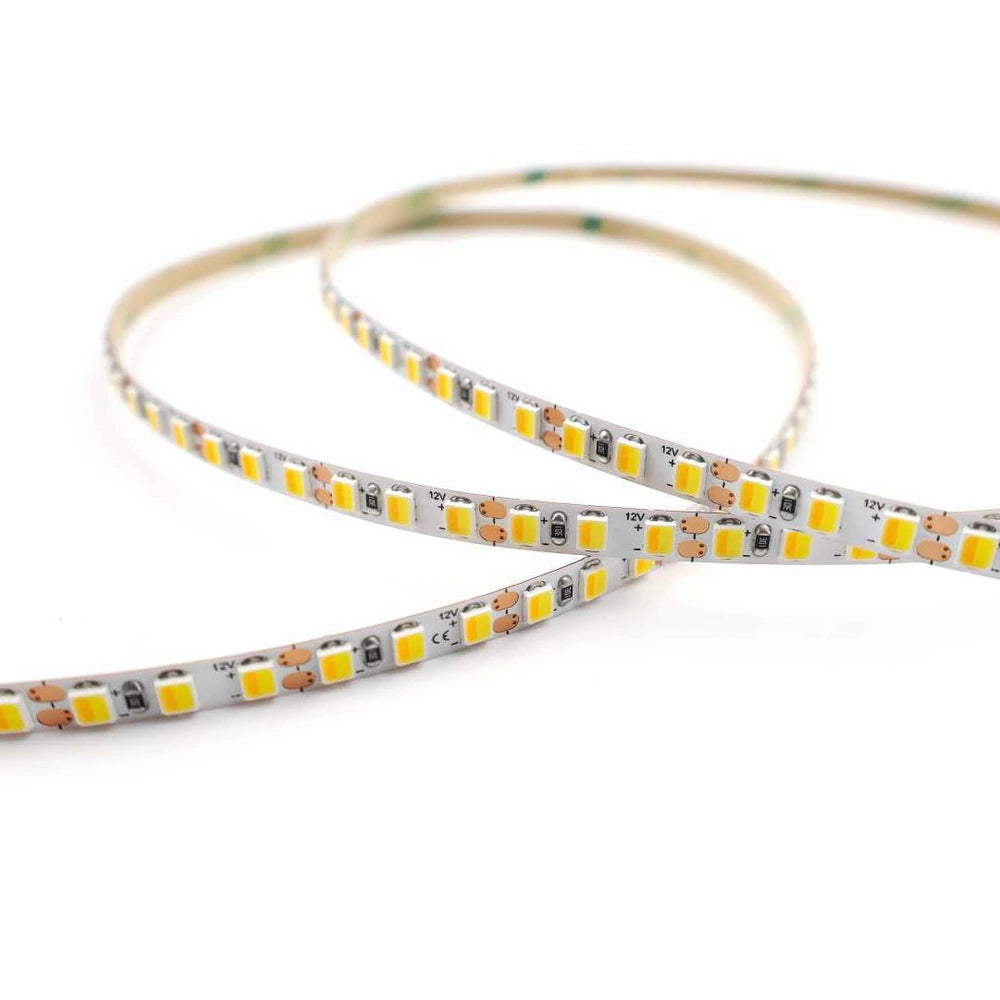

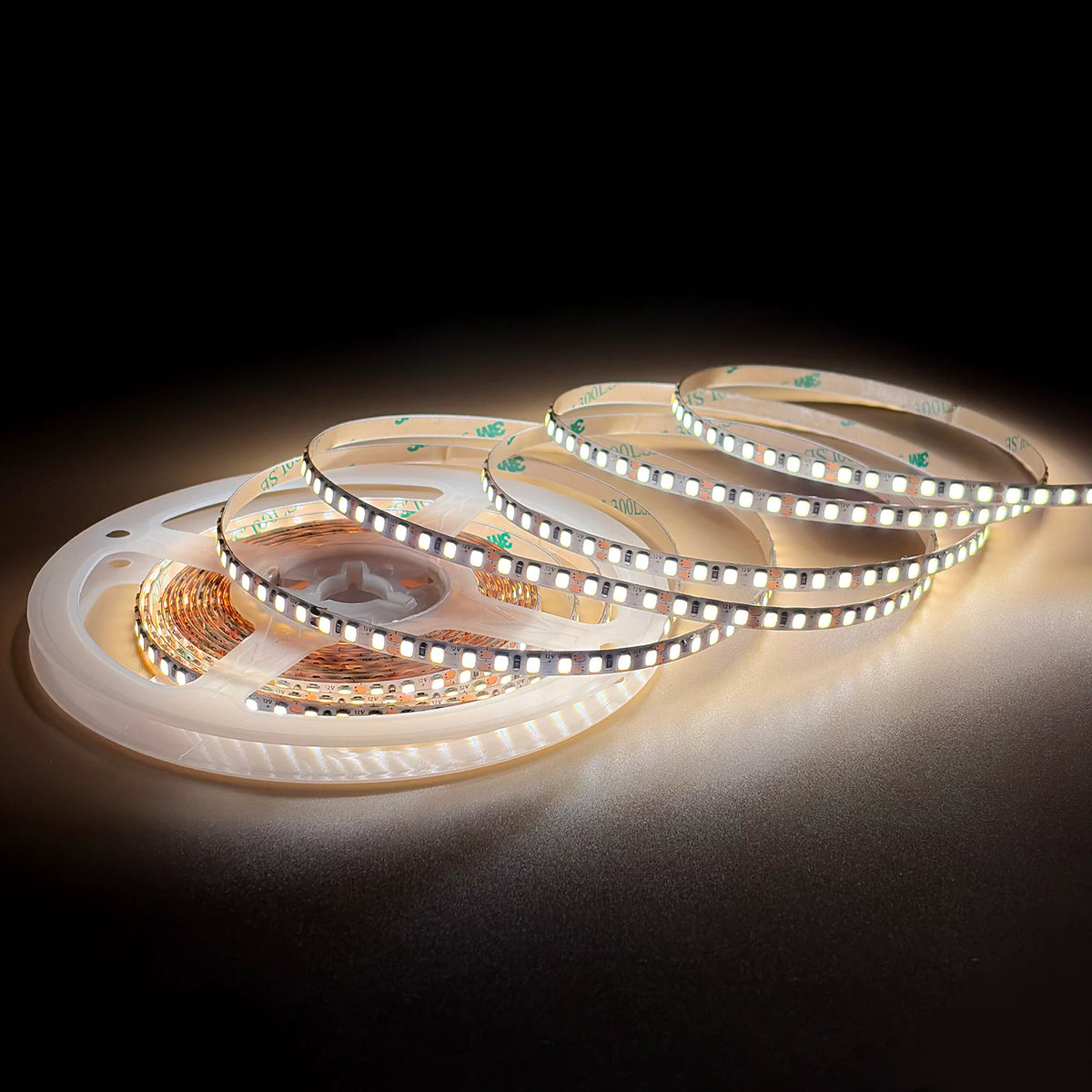

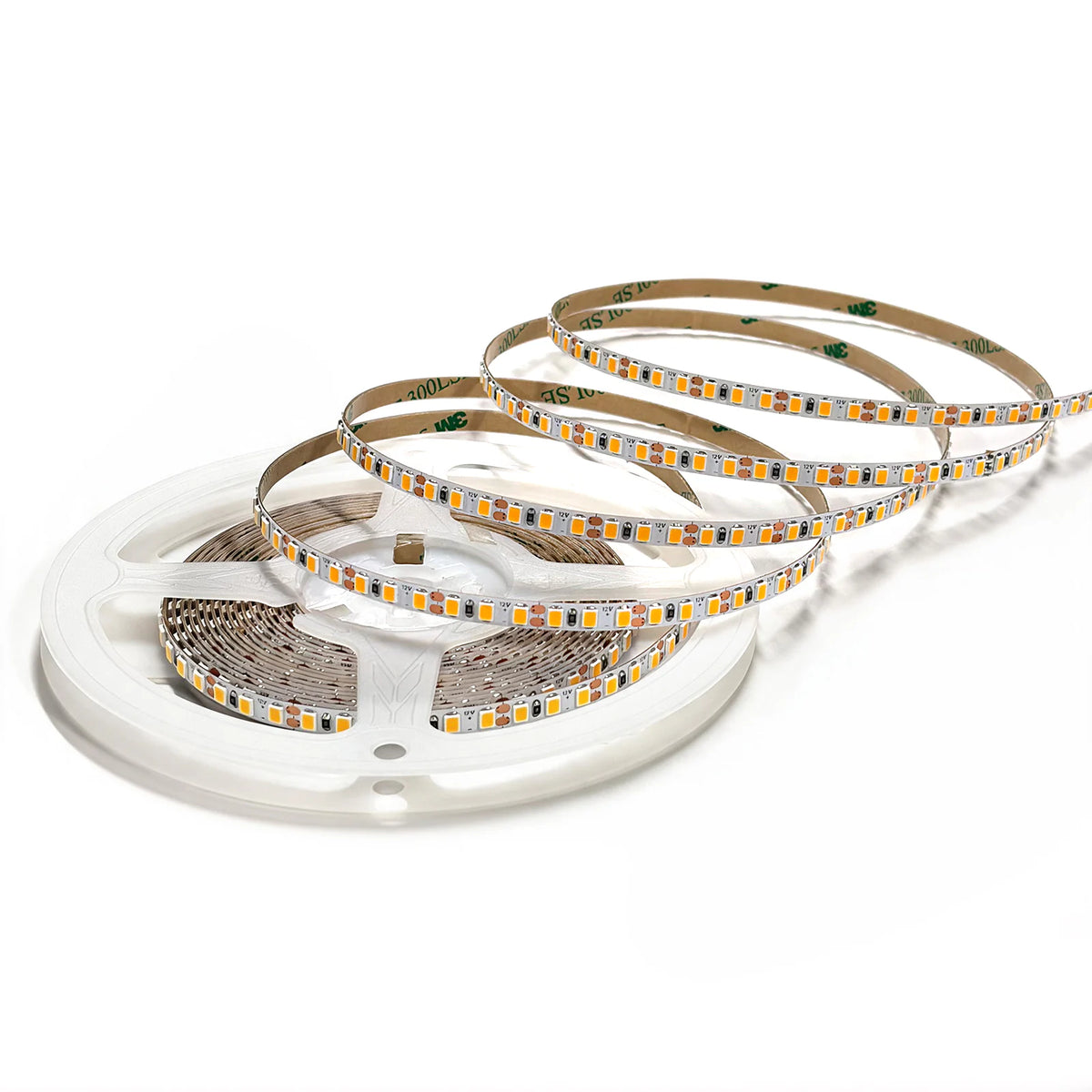

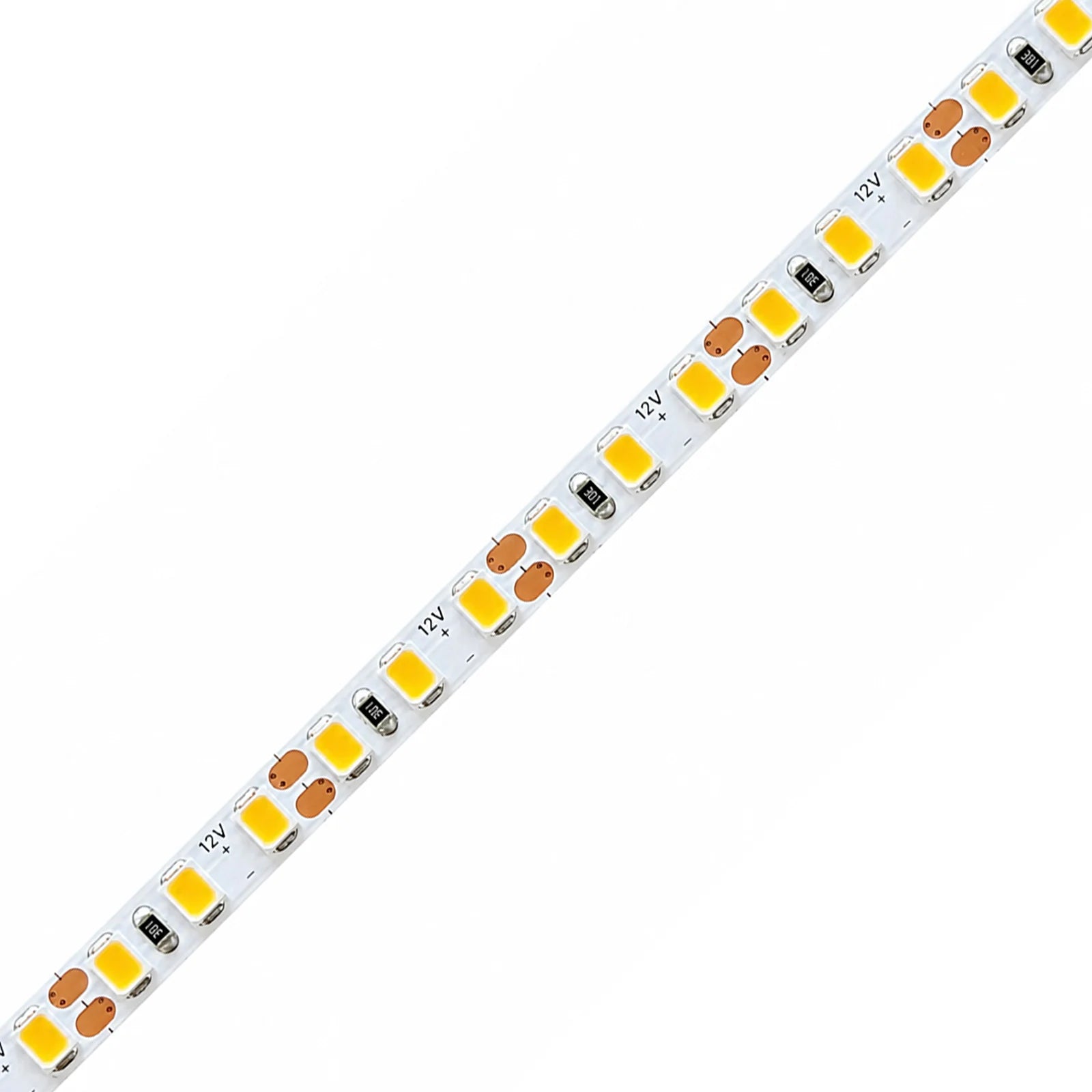

At 5mm wide, this ultra-thin 2-wire 2-in-1 tunable white LED strip light runs 168 LEDs/m of 2835 chips — a slim, even option for reveals, shelves, and under-cabinet lines. Running on 12V/24V constant voltage, it dims from warm to cool white with a compatible CCT controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Warm-to-cool tunable white: Two white channels on one strip adjust from 2700K to 6500K with a CCT controller — warm ambient, neutral, or cool task light on demand.
- Ultra-thin 5mm profile: A slim 5mm board fits narrow channels, reveals, and slim under-cabinet edges where wider strips won't sit.
- High-density 168 LEDs/m: Tightly spaced 168 LEDs/m minimize hot spots for an even, dot-free line of light, even close to a diffuser.
- 12V/24V operation: Constant-voltage 12V/24V input works with standard 12V drivers, dimmers, and low-voltage lighting systems.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-168-5mm-12V-CCT |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V/24V |
| Power | 8.5W+8.5W/m |
| Luminous Output | 810/889lm/m |
| Color Rendering | 90 |
| Color / CCT | 2700K-6500K Tunable White |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Connect the strip to a compatible CCT controller and the specified constant-voltage power supply, observing the channel and polarity markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

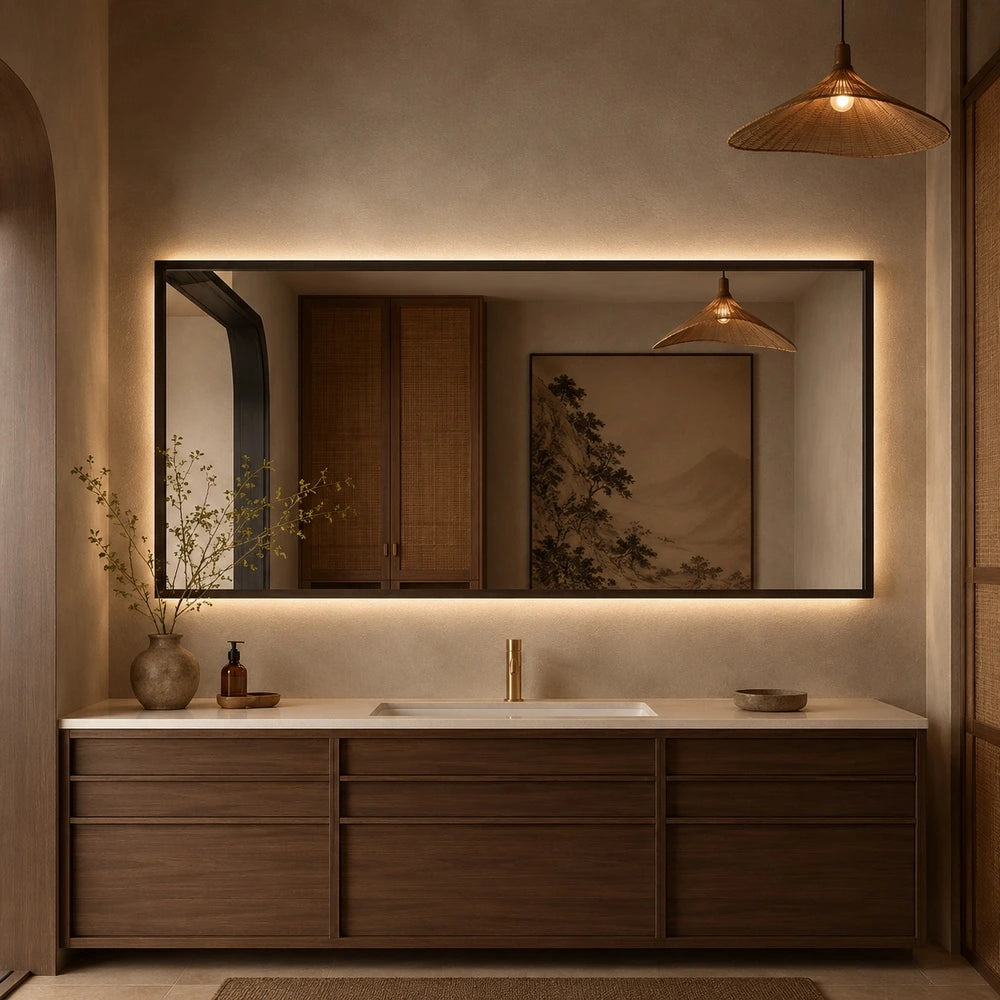

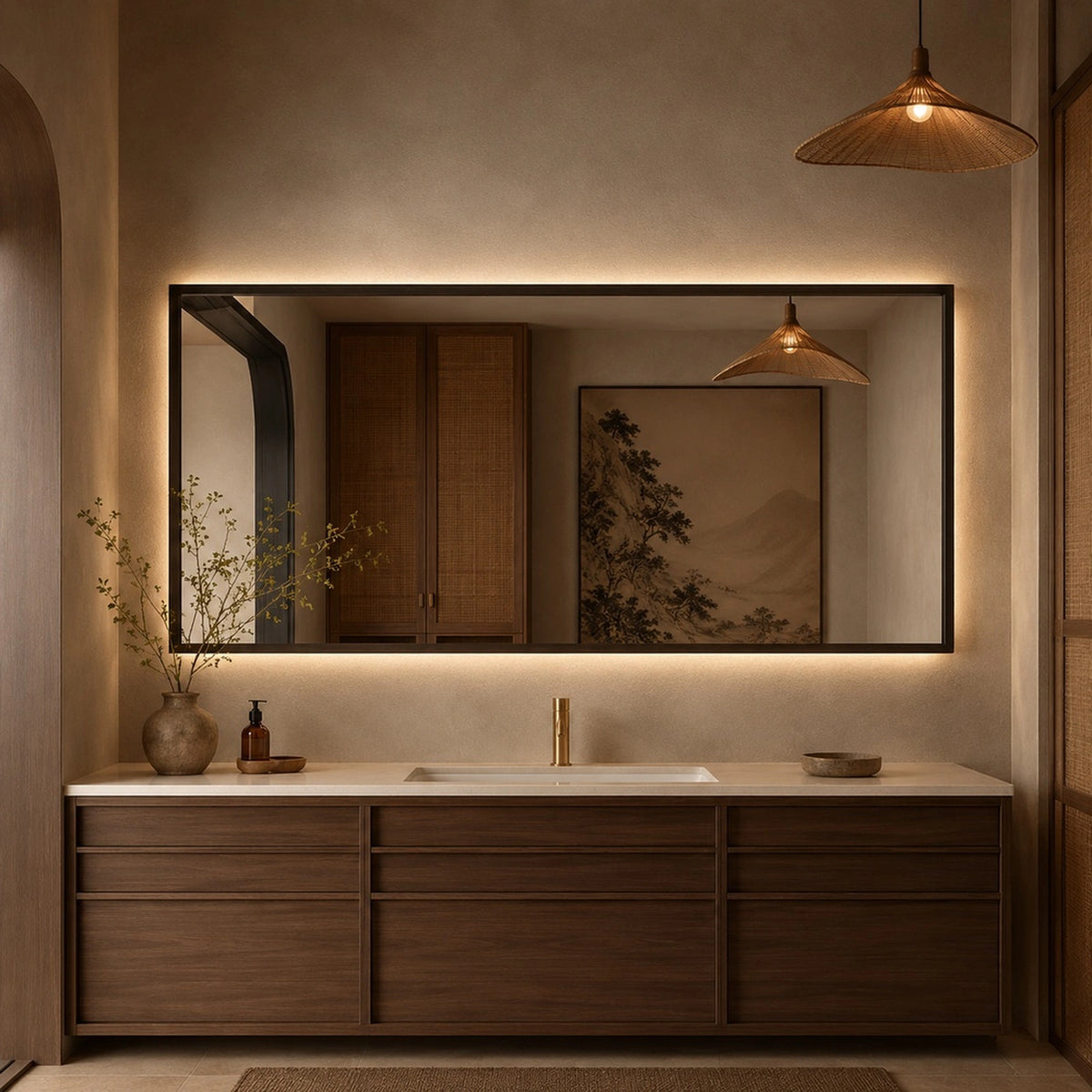

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and led light strips for shelves
- Led shelf light strips
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT range, voltage, PCB width, controller and connector arrangement, reel length, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
