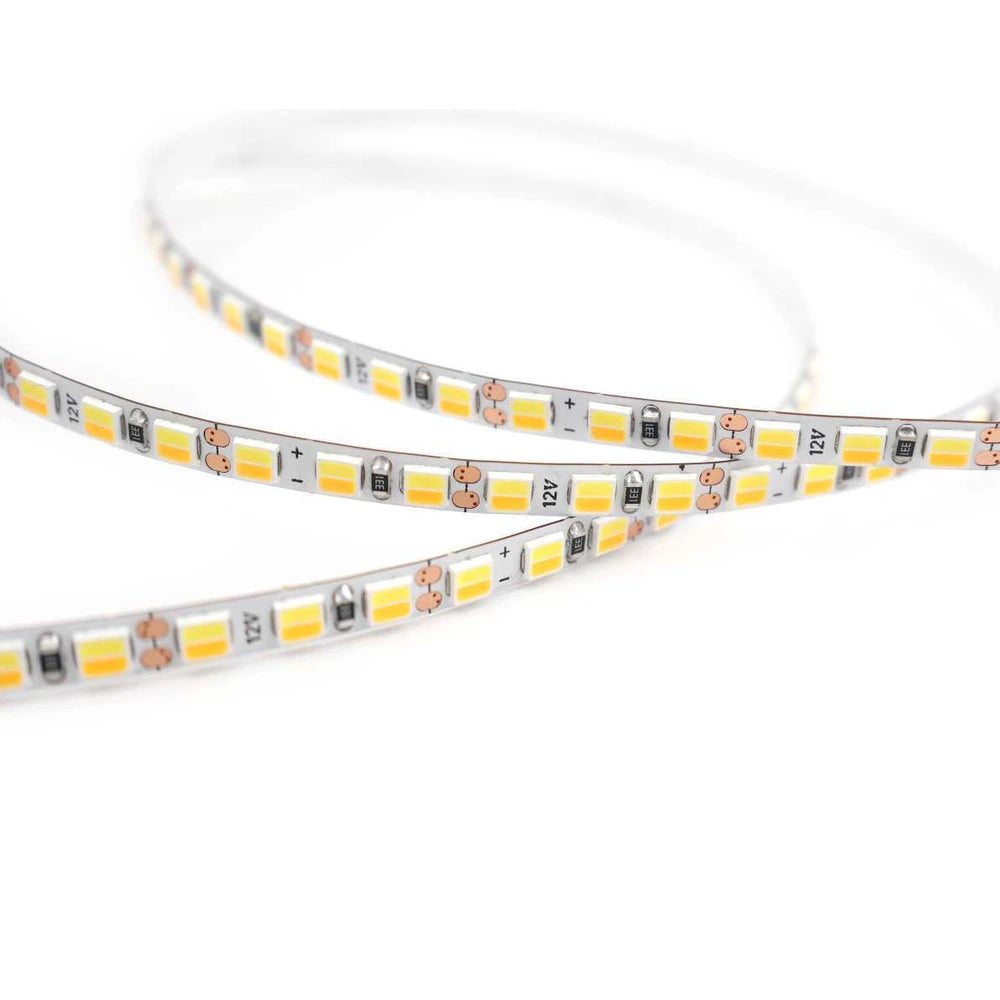

4mm SMD 2835 2-in-1 Tunable White LED Strip Light, 162 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
At 4mm wide, this ultra-thin 2-in-1 tunable white LED strip light runs 162 LEDs/m of 2835 chips — a slim, even option for reveals, shelves, and under-cabinet lines. Running on 12V constant voltage, it dims from warm to cool white with a compatible CCT controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Warm-to-cool tunable white: Two white channels on one strip adjust from 3000K to 6500K with a CCT controller — warm ambient, neutral, or cool task light on demand.
- Ultra-thin 4mm profile: A slim 4mm board fits narrow channels, reveals, and slim under-cabinet edges where wider strips won't sit.
- 162 LEDs/m layout: A 162 LEDs/m spacing gives smooth coverage for general and accent lighting.
- 12V operation: Constant-voltage 12V input works with standard 12V drivers, dimmers, and low-voltage lighting systems.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-162-4mm-12V-CCT |
|---|---|
| LED Type | 2835 |
| LED Density | 162 LEDs/m |
| PCB / Product Width | 4mm |
| Input Voltage | DC12V |
| Power | Up to 14W/m |
| Luminous Output | 683/752lm/m |
| Color Rendering | 90 |
| Color / CCT | 3000K-6500K Tunable White |
| Standard Length | 5m Reel / 16.4ft |

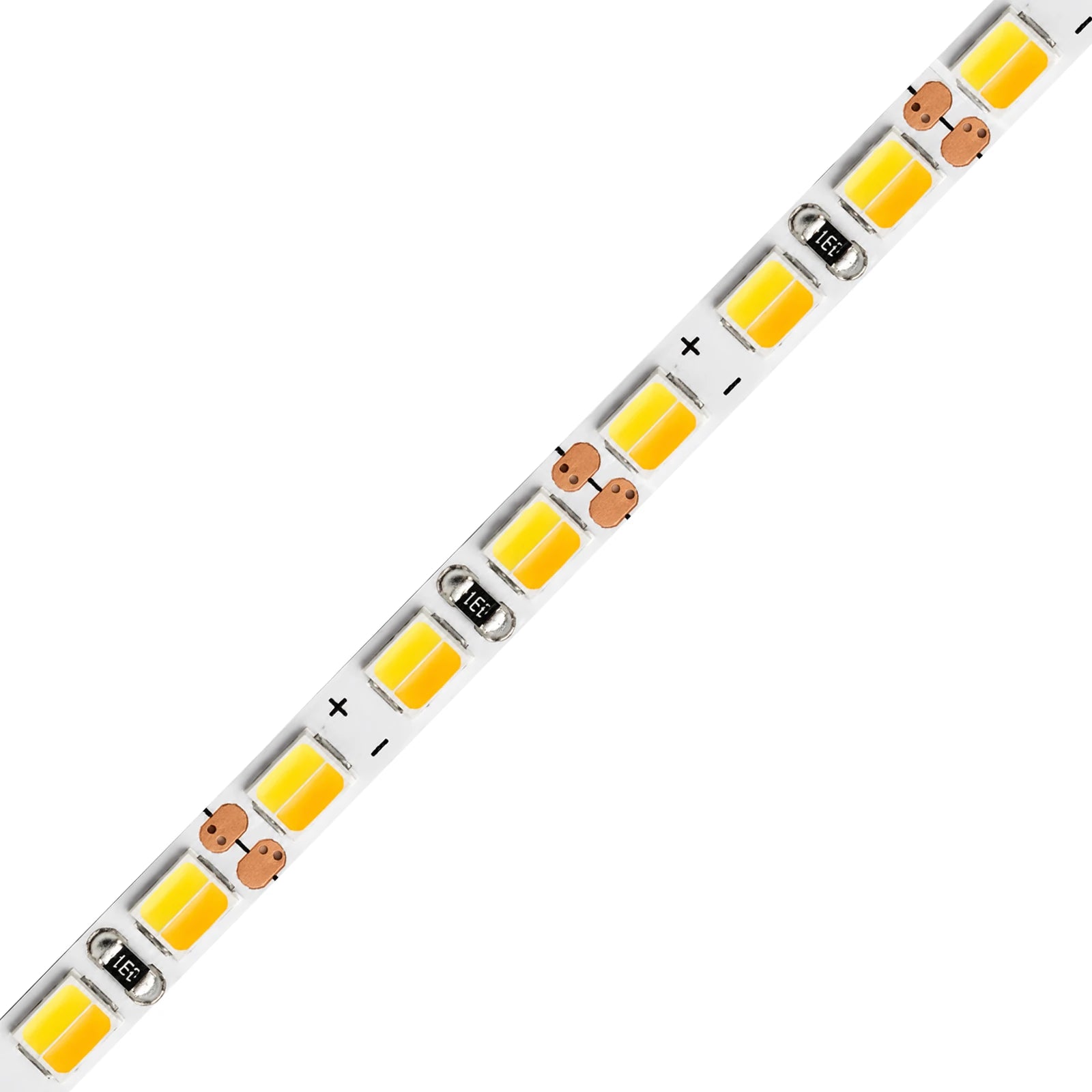

| Cutting Interval | 18.5mm / 0.73in (3 LEDs per cut) |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
The strip can be cut every 18.5mm / 0.73in (3 LEDs per cut) at the marked cut points. Connect the strip to a compatible CCT controller and the specified constant-voltage power supply, observing the channel and polarity markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

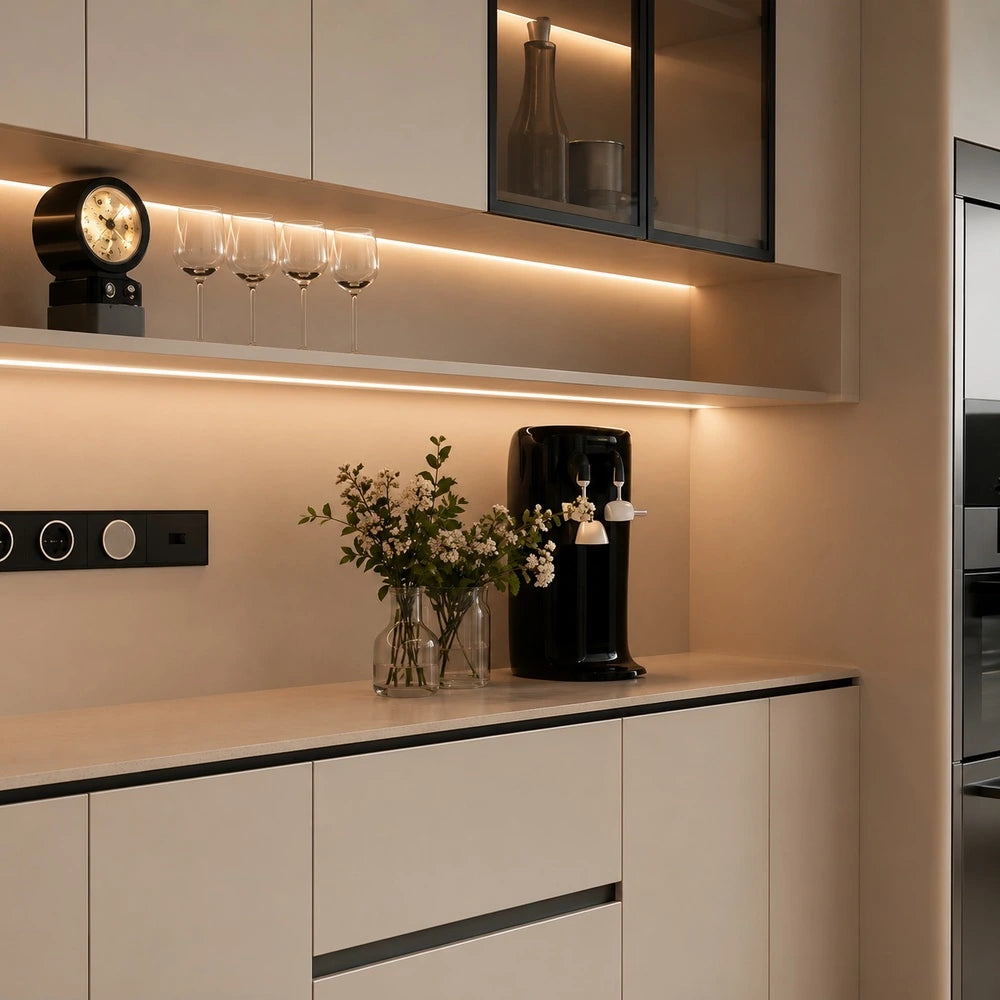

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and led strip lights bookshelf
- Led strip lights for cabinets
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT range, voltage, PCB width, controller and connector arrangement, reel length, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
