8mm SMD 2835 Black-PCB 3-Wire 2-in-1 Tunable White LED Strip Light, 120 LEDs/m, 12V/24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

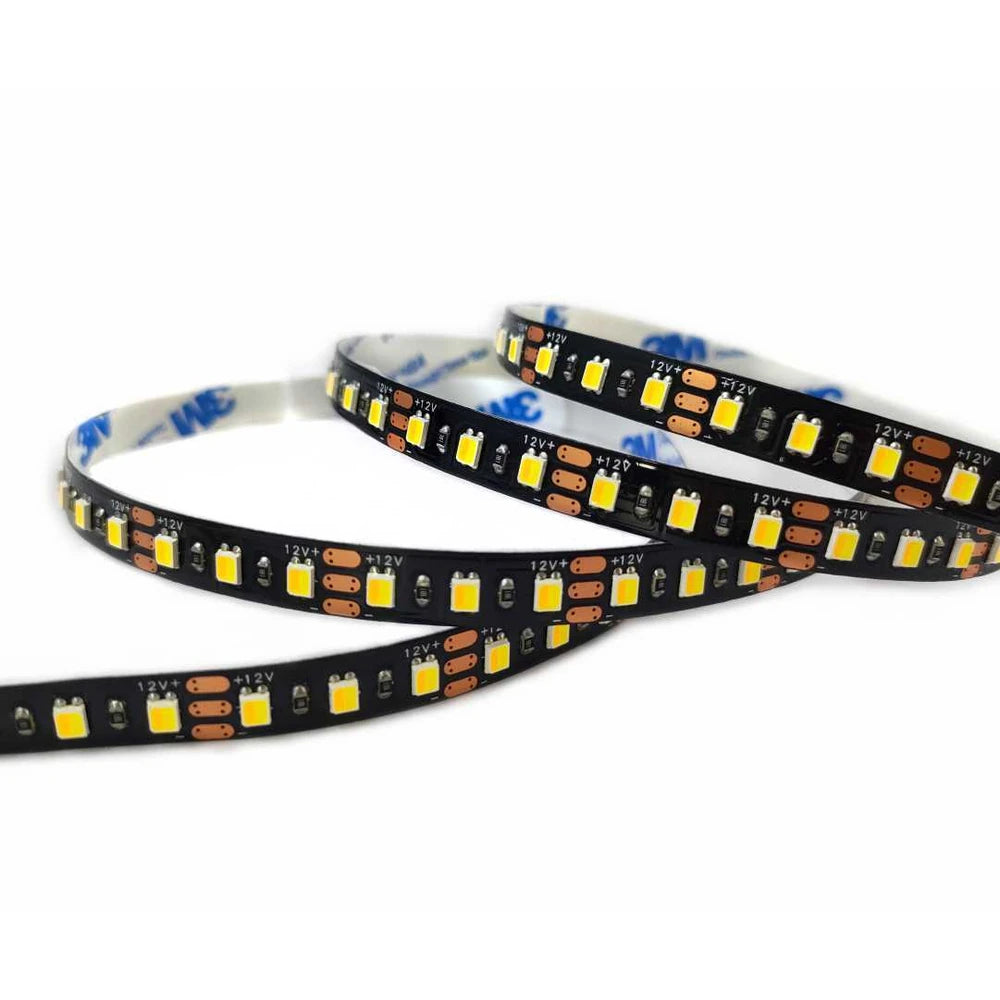

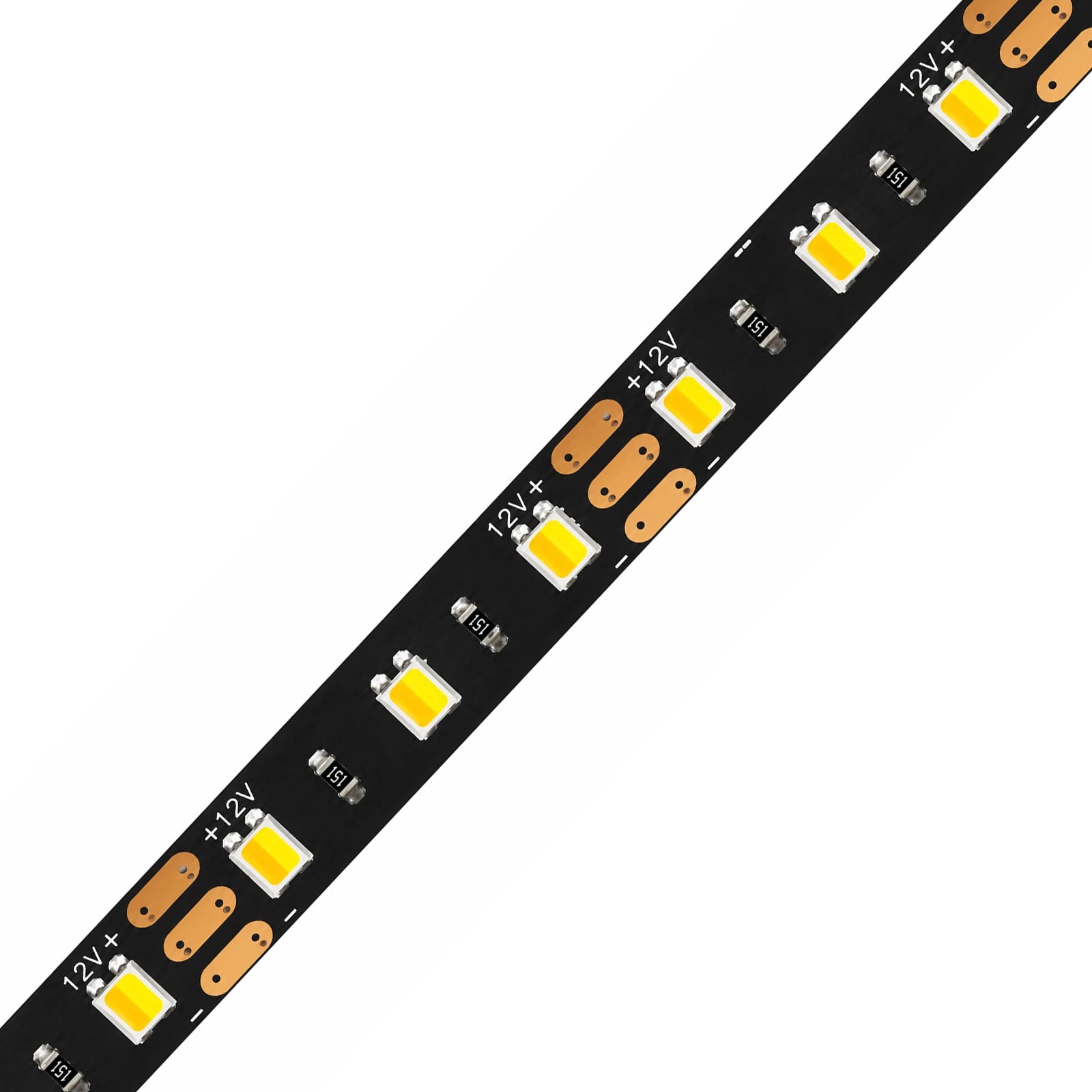

This black-PCB 3-wire 2-in-1 tunable white LED strip light hides its board against dark channels and edges while delivering 120 SMD 2835 LEDs per meter. Running on 12V/24V constant voltage, it dims from warm to cool white with a compatible CCT controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Warm-to-cool tunable white: Two white channels on one strip adjust from 2700K to 6500K with a CCT controller — warm ambient, neutral, or cool task light on demand.
- 8mm width: The 8mm 2835 board balances output and a low-profile footprint for clean, hidden installs.
- 120 LEDs/m layout: A 120 LEDs/m spacing gives smooth coverage for general and accent lighting.
- 12V/24V operation: Choose the voltage version that matches your compatible 12V or 24V constant-voltage power supply and CCT controller.
- Black PCB: The black board disappears against dark surfaces and channels when the strip is off.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Reference | 2835-120-8mm-12V CCT |
|---|---|
| LED Type | 2835 |
| Wiring | 3-Wire |
| LED Density | 120 LEDs/m |
| PCB Width | 8mm |
| PCB Construction | Black PCB |
| Input Voltage | DC12V/DC24V |
| Power | Up to 19.2W/m |
| Color Rendering Index | 90 |
| Luminous Output | 1024/1082lm/m |
| Color / CCT | 2700K-6500K Tunable White |
| LED Pitch | 8.3mm |
| Cutting Interval | 25mm / 0.98in (3 LEDs per cut) |
| Standard Length | 5000mm / 5m / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

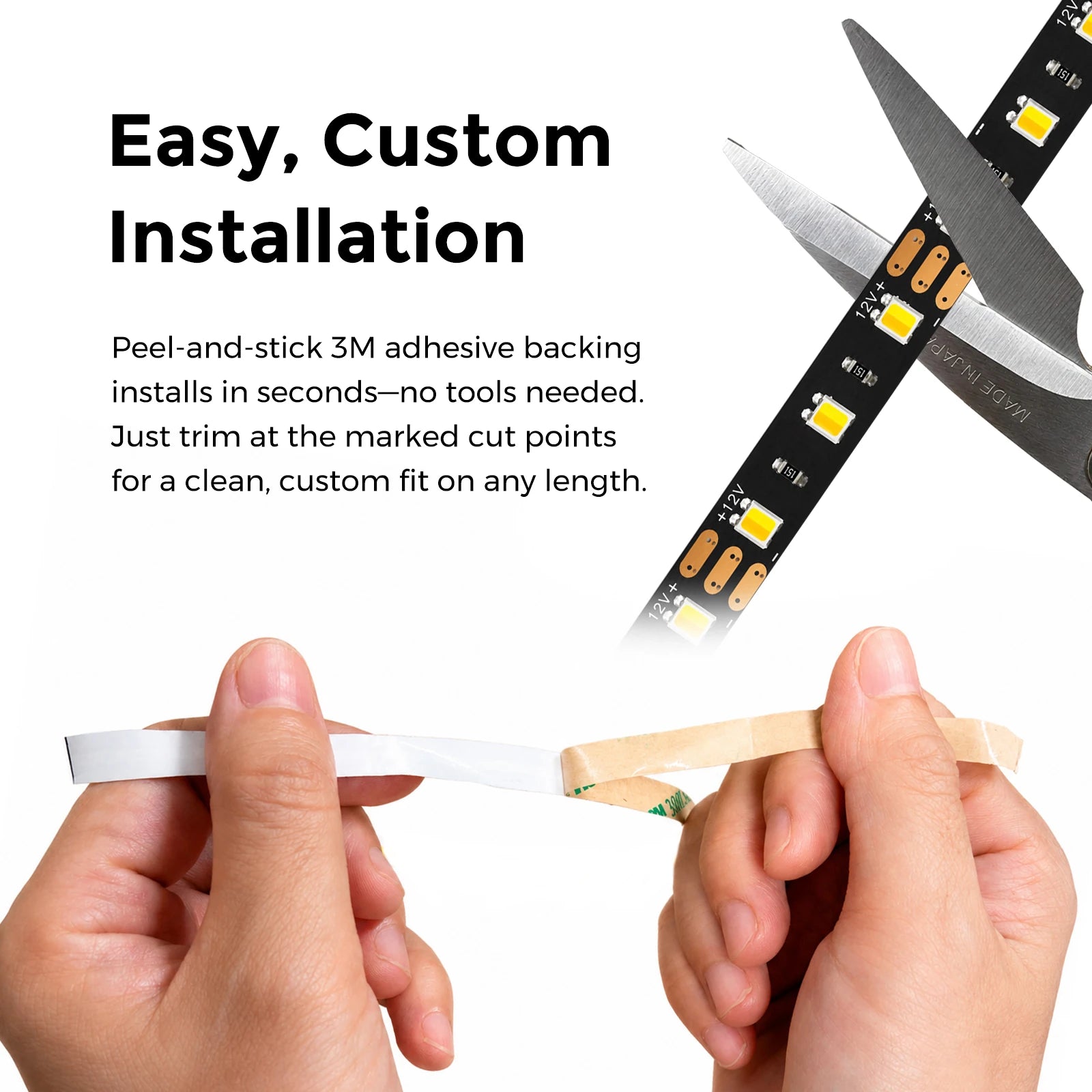

Cutting and Installation
The strip can be cut every 25mm / 0.98in (3 LEDs per cut) at the marked cut points. Connect the strip to a compatible CCT controller and the specified constant-voltage power supply, observing the channel and polarity markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

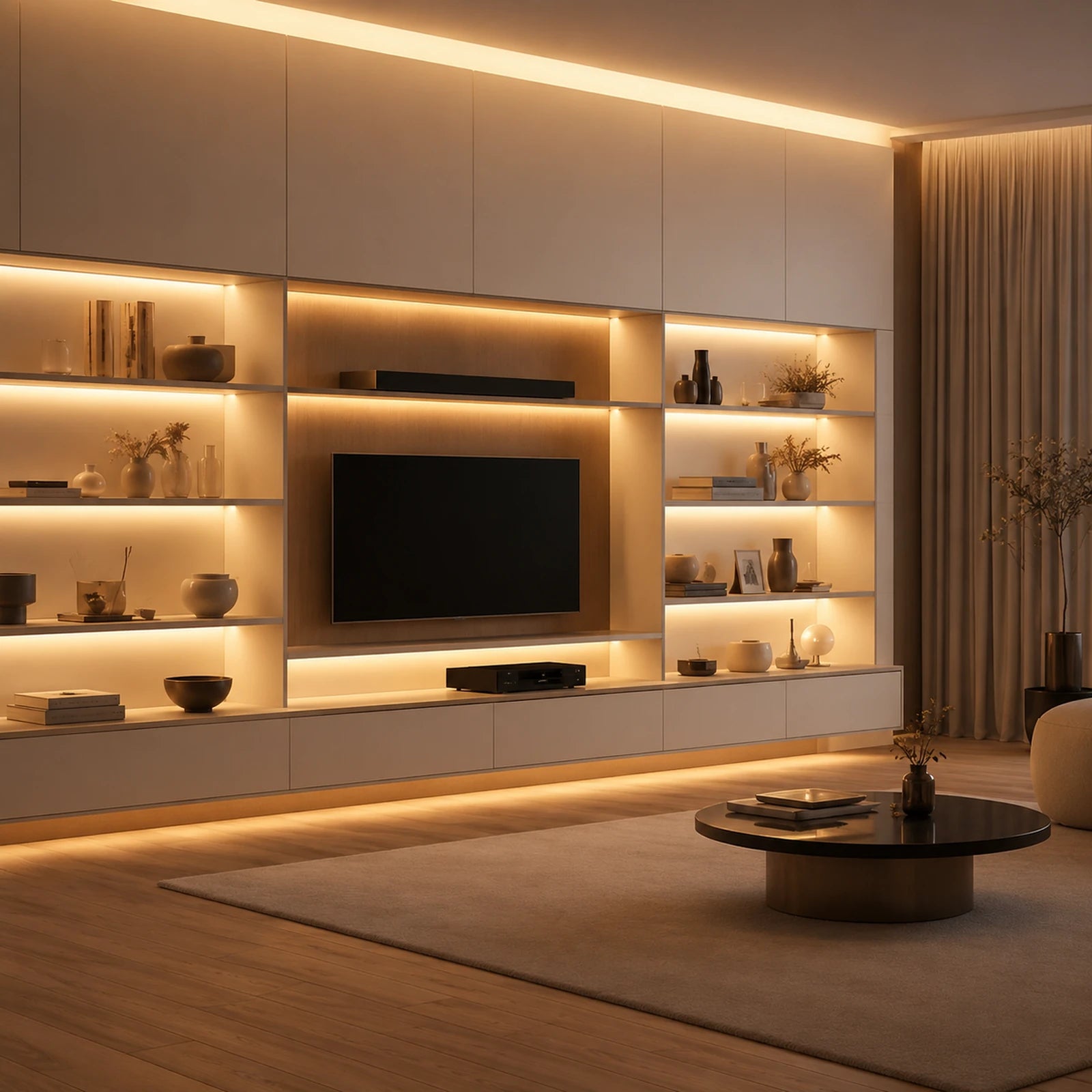

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and closet led strip light
- Kitchen cabinet led strip lighting
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5000mm / 5m / 16.4ft. We can quote CCT range, voltage, PCB width, controller and connector arrangement, reel length, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
