2mm COB Single Color LED Strip Light, 480 LEDs/m, 5V/12V, 5W/m
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
At just 2mm wide, this is the narrowest COB LED strip in our range — thin enough to drop into a slot where a standard 8mm tape will not fit. It packs 480 LEDs/m for a dot-free line of light, draws 5W/m, and is available in 5V or 12V with eleven light colors, including CRI 90 warm, neutral and cool white. Typical uses are ultra-narrow aluminum channels, channel letters and logo outlines, display and shelf edges, cabinets, and scale models.
Why Choose These LED Strip Lights?

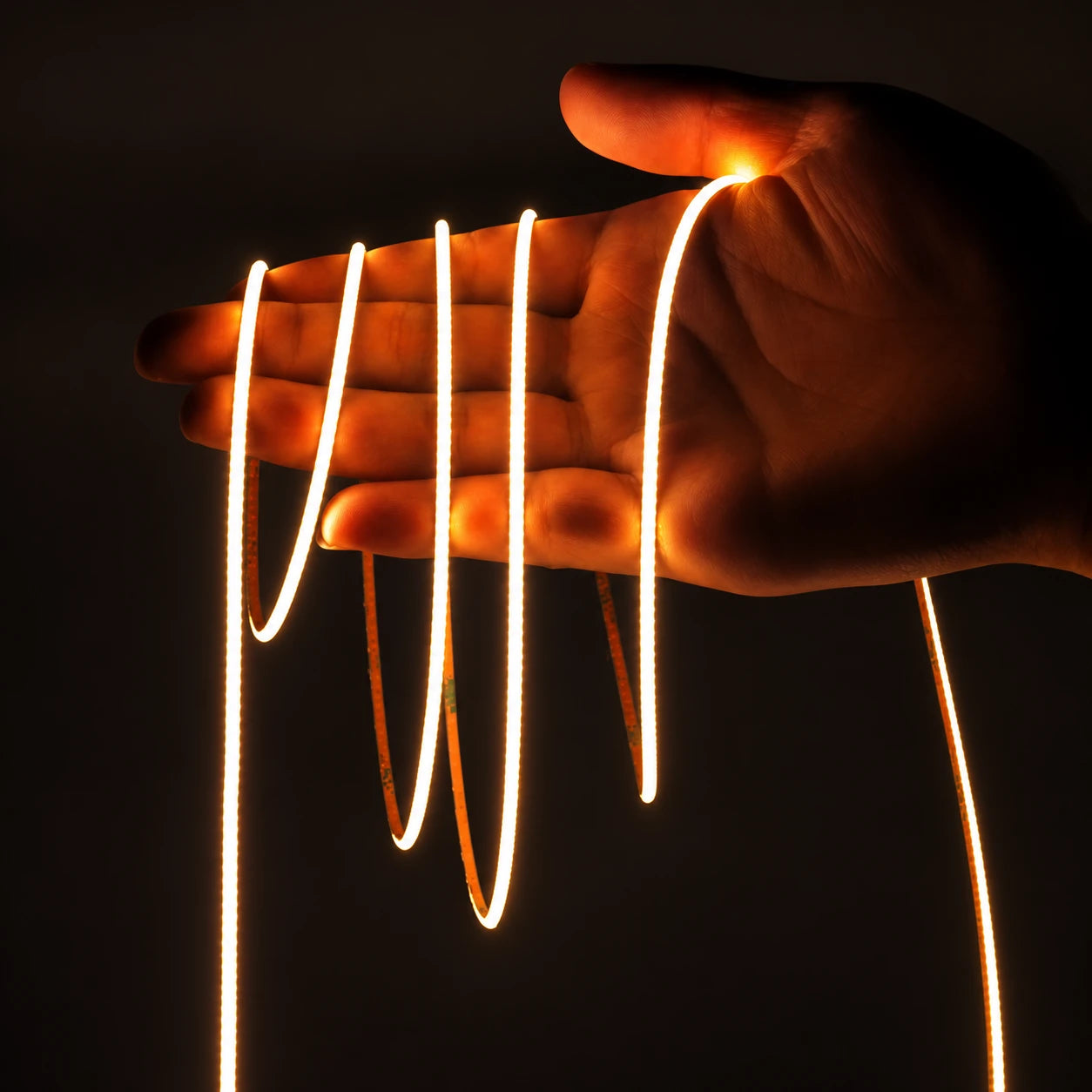

- Ultra-narrow 2mm width: Fits compact channels, thin profiles, letters, models, and narrow decorative details.

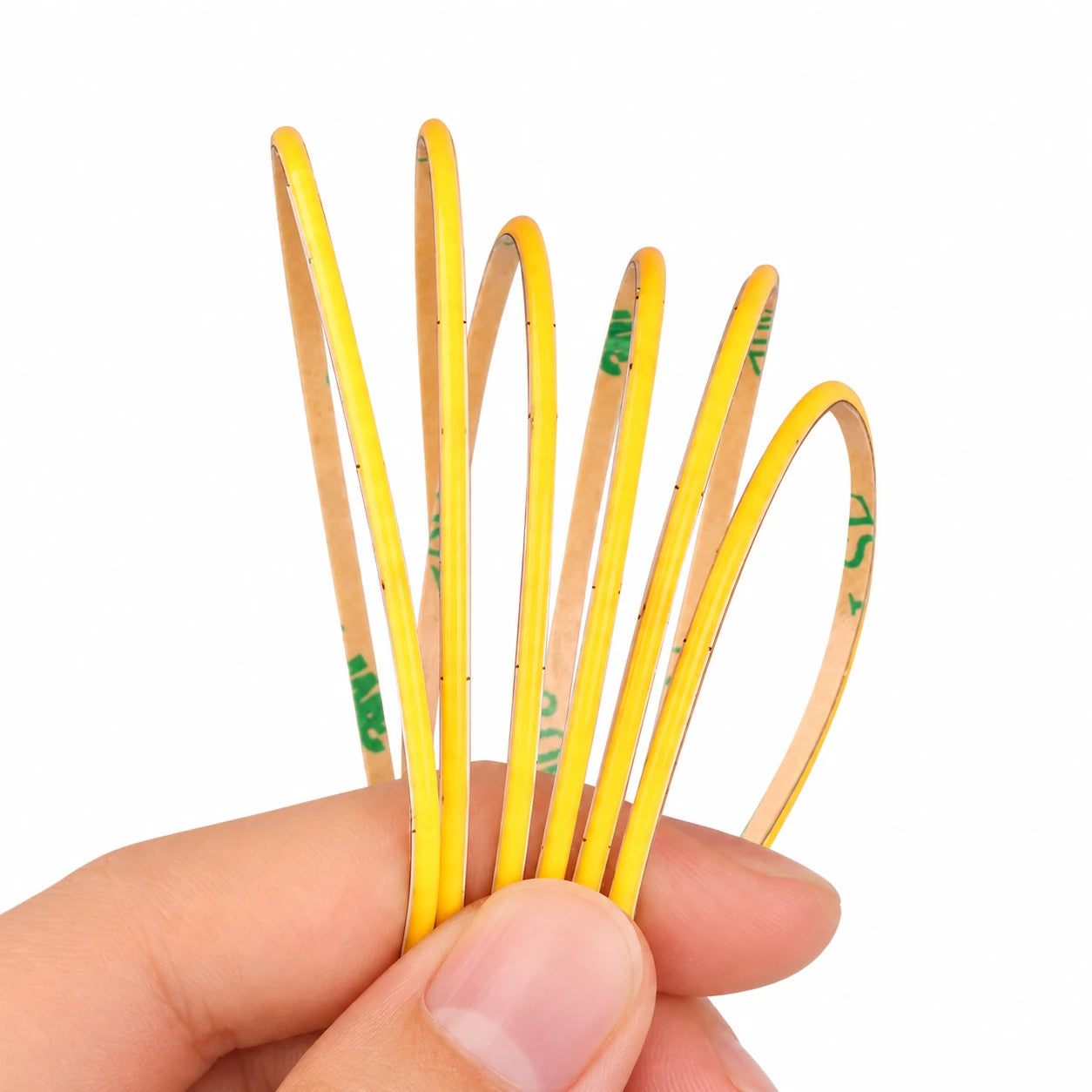

- 480 LEDs/m COB density: High-density COB construction produces a smooth, continuous line of light with reduced visible light spots.
- 5V or 12V options: Choose the voltage that matches your power supply and installation requirements.
- Low power consumption: Rated at 5W/m for efficient accent and decorative lighting.
- Wide 180° beam angle: Provides broad, even light distribution.

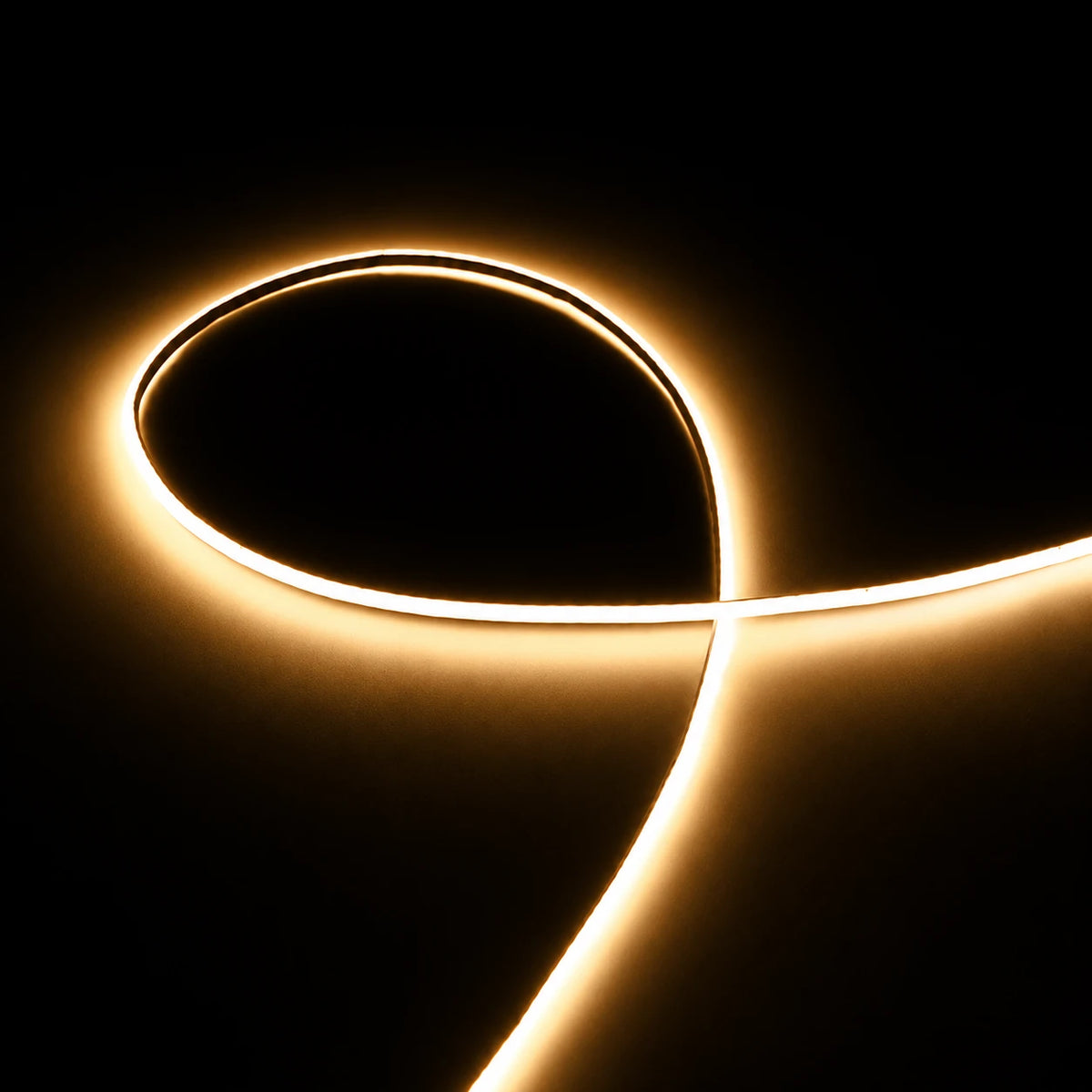

- CRI 90 white versions: The 3000K, 4000K and 6500K options render color accurately for display, decorative and interior lighting. CRI does not apply to the single-color options.
- Dimmable: Brightness can be adjusted with a compatible constant-voltage dimmer/controller.

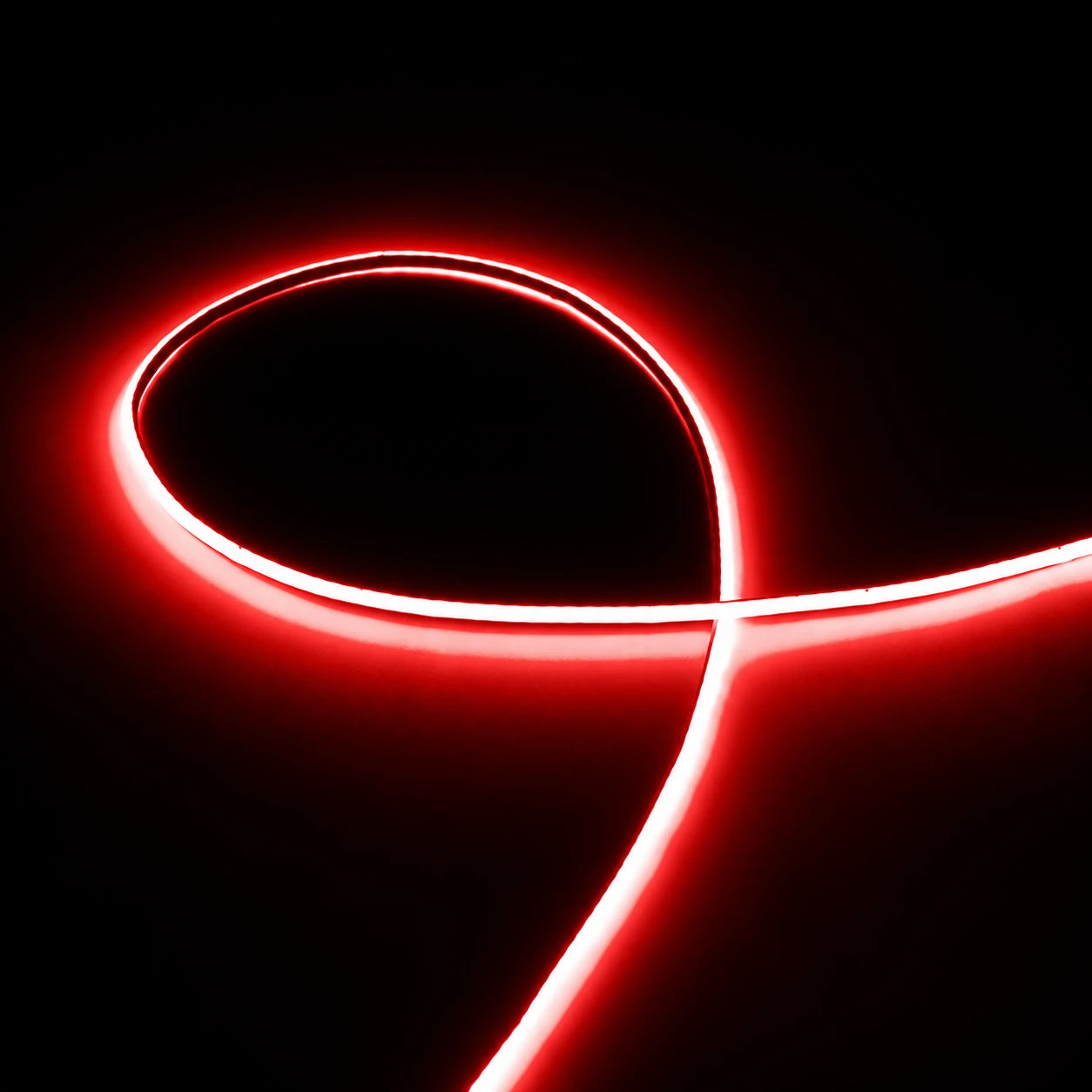

- Multiple light colors: 3000K, 4000K, 6500K, Blue, Pink, Red, Green, Ice Blue, Orange, Yellow, and Purple.
Technical Specifications
| Model No. | BTL-COB480-2MM |
|---|---|
| LED Type | COB |
| LED Density | 480 LEDs/m |
| PCB / Product Width | 2mm |
| Input Voltage | DC5V / DC12V |
| Power | 5W/m |
| Luminous Efficacy | 110 lm/W |
| Luminous Flux | Approx. 550 lm/m (about 2,750 lm per 5m reel) |
| Beam Angle | 180° |
| Color Rendering Index | CRI 90 for the 3000K, 4000K and 6500K white versions; CRI does not apply to the single-color (non-white) options |
| Dimmable | Yes |
| Rated Lifetime | 50,000 hours |

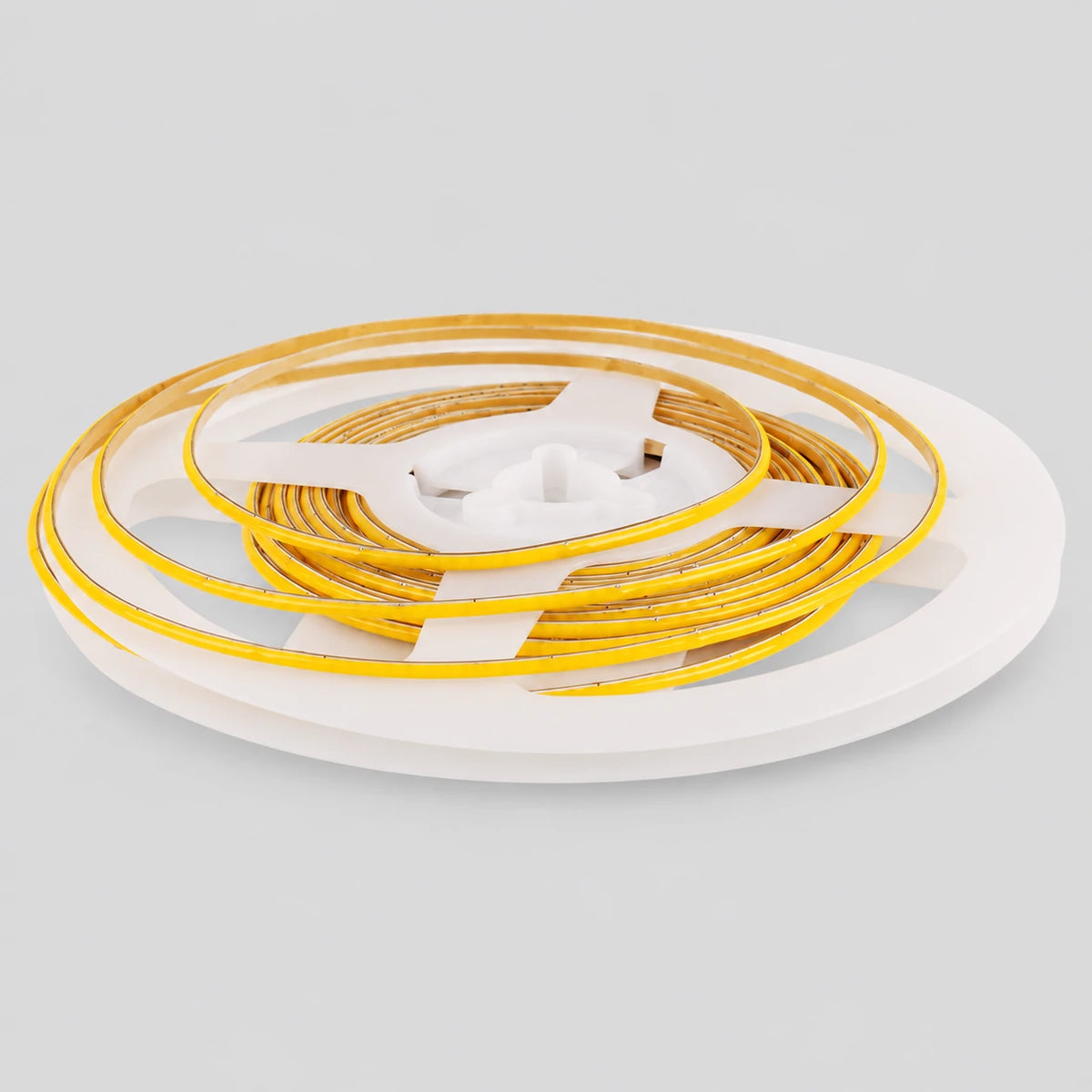

| Standard Length | 5m Reel / 16.4ft |
| Light Color Options | 3000K, 4000K, 6500K, Blue, Pink, Red, Green, Ice Blue, Orange, Yellow, Purple |
Recommended Applications
- Ultra-narrow aluminum channels and compact lighting profiles
- Signs, lettering, logo outlines, and display contours
- Cabinets, shelves, showcases, and decorative edge lighting
- Models, crafts, DIY projects, and other space-limited installations
Purchase Options
The standard package is one 5m / 16.4ft reel. Select the required light color and either the 5V or 12V version before ordering. Use a compatible constant-voltage power supply and dimmer/controller for the selected voltage.
