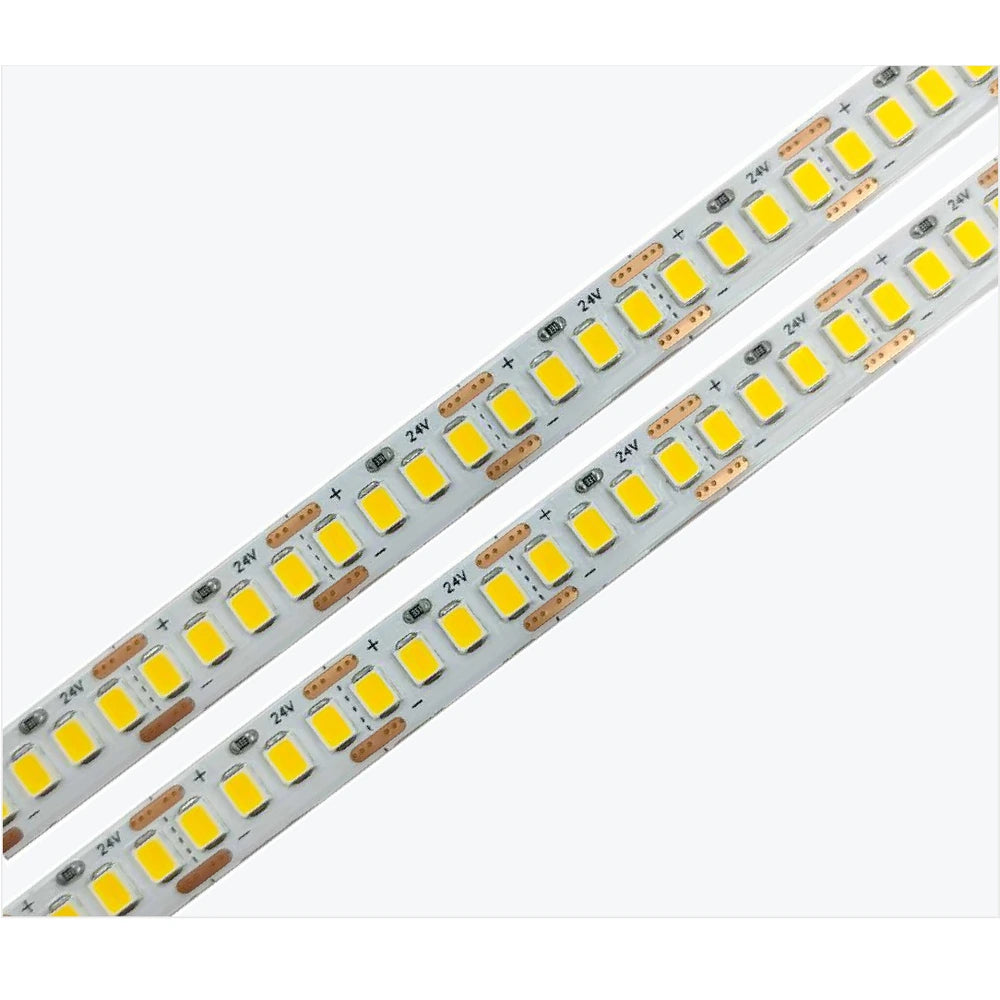

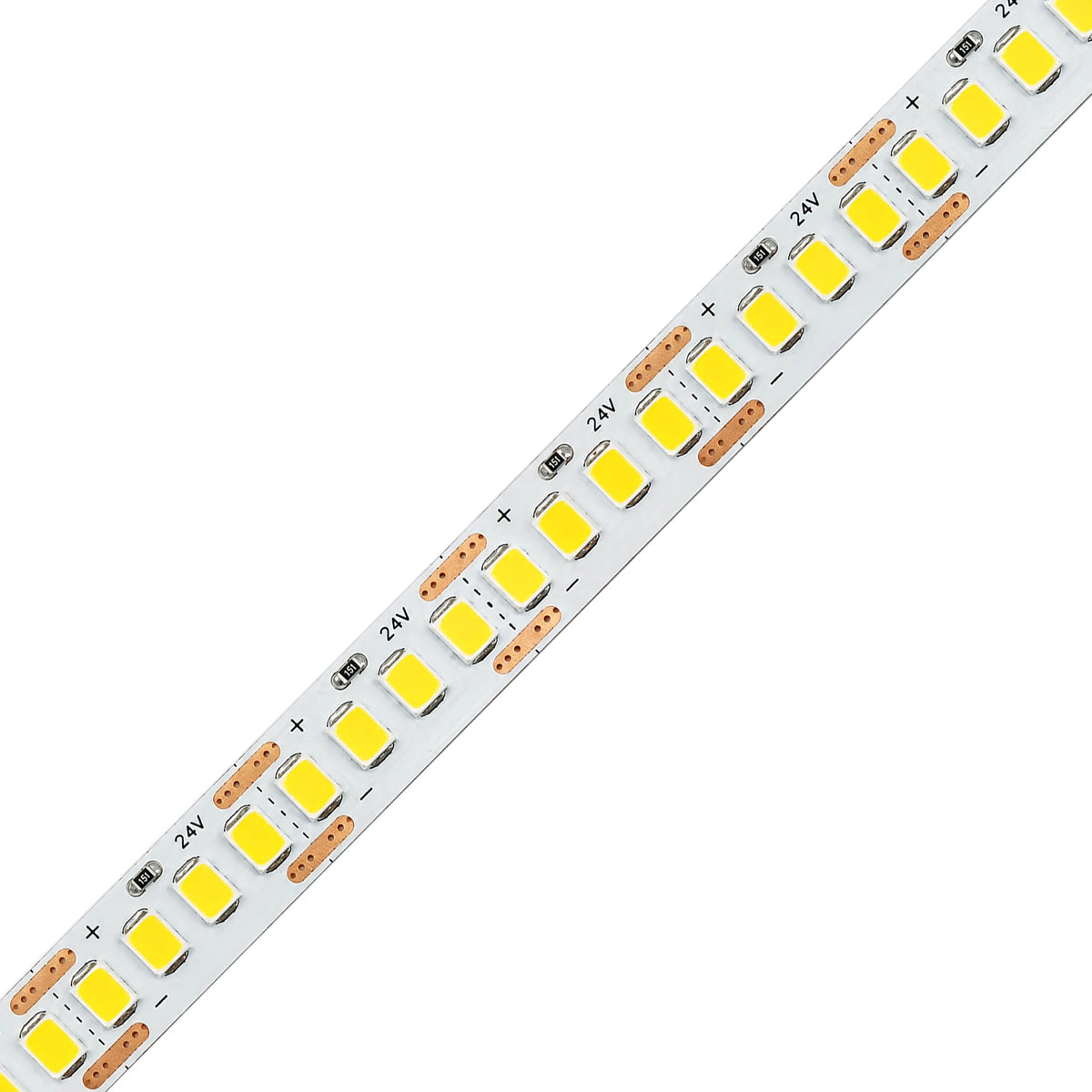

The 2835-240-8mm-24V-WHITE is a 24V constant-voltage white LED strip — chosen for longer runs, lower current draw, and reduced voltage drop compared to 12V, making it the preferred choice for commercial and architectural installations. With 240 LEDs/m SMD 2835 LEDs on a 8mm PCB and 24V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K.
Why Choose These LED Strip Lights?
- 24V for longer runs: 24V DC halves the current at the same wattage, reducing resistive losses and allowing longer uninterrupted runs before voltage drop becomes visible.
- 8mm PCB width: The 8mm board fits standard aluminum extrusion channels and surface-mount profiles.
- 240 LEDs/m LED density: 240 LEDs/m provides smooth, even white-light output for general and accent lighting.
- SMD 2835 chip technology: SMD 2835 LEDs deliver consistent white output and long operating life at 24V.
- White-light CCT selection: Available from 2200K warm white to 6500K daylight — match the CCT to the visual requirement.
- IP20 or IP67 options: Open PCB for dry locations; encapsulated construction for damp and outdoor-adjacent environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial projects.
- Custom project supply: Custom CCT, length, power, connector, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-240-8mm-24V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 240 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | 12 W/m |
| Luminous Output | 1108 lm/m |
| Color Rendering | 90 / 97 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Use a 24V constant-voltage driver with at least 20% reserve capacity. 24V strips support longer runs — still add feed points on very long continuous runs to maintain consistent brightness.

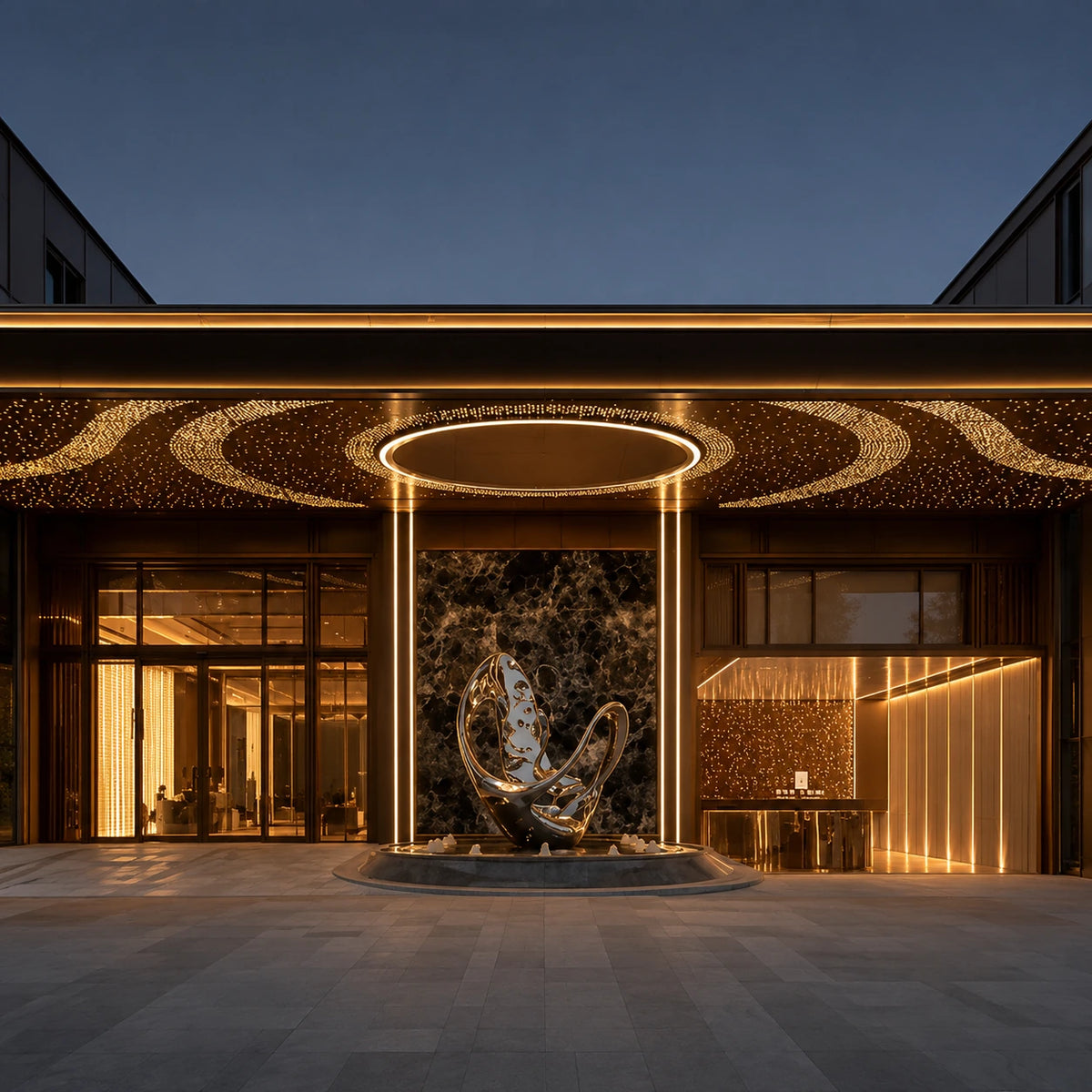

Recommended Applications
- Commercial cove lighting, perimeter lighting, and long-run architectural linear installations
- Retail environments, hotel corridors, and office spaces where minimal voltage drop over distance is required
- Residential and hospitality cabinet, display, and accent lighting on 24V DC systems
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
