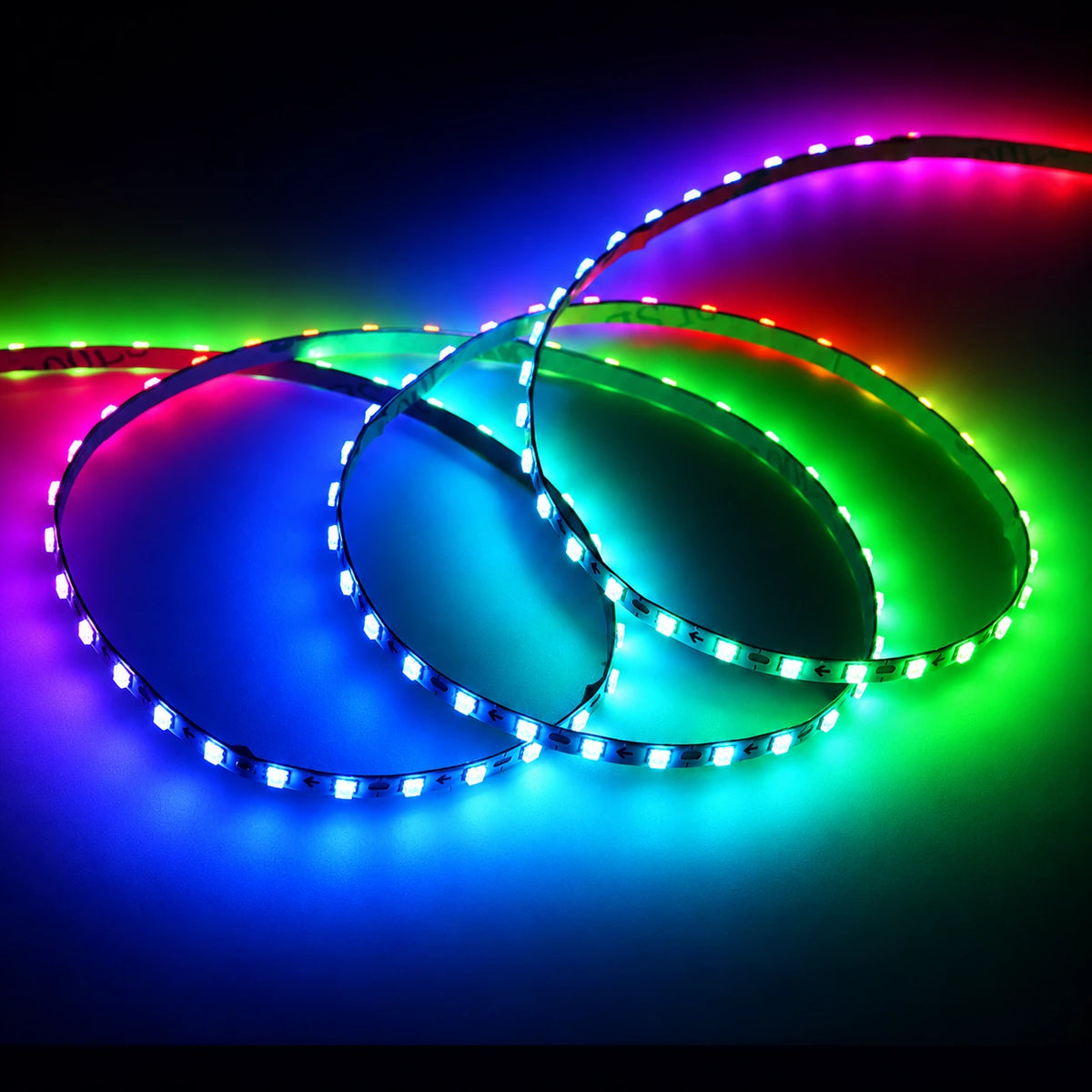

2.7mm Ultra Narrow Addressable RGB SMD LED Strip Lights, 160 LEDs/m, 5V/12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 2.7mm ultra-narrow addressable RGB LED strip is designed for tight installations where standard-width LED strips will not fit. With 160 LEDs/m, single-point addressable control, a built-in IC, and a slim 2.7mm PCB, it is suitable for narrow grooves, cabinets, mirrors, stairs, displays, gaming setups, bars, and other decorative lighting projects.
Why Choose This Ultra-Narrow Addressable RGB LED Strip?
- Ultra-narrow 2.7mm PCB: Ideal for slim channels, narrow grooves, compact displays, and space-limited installations.

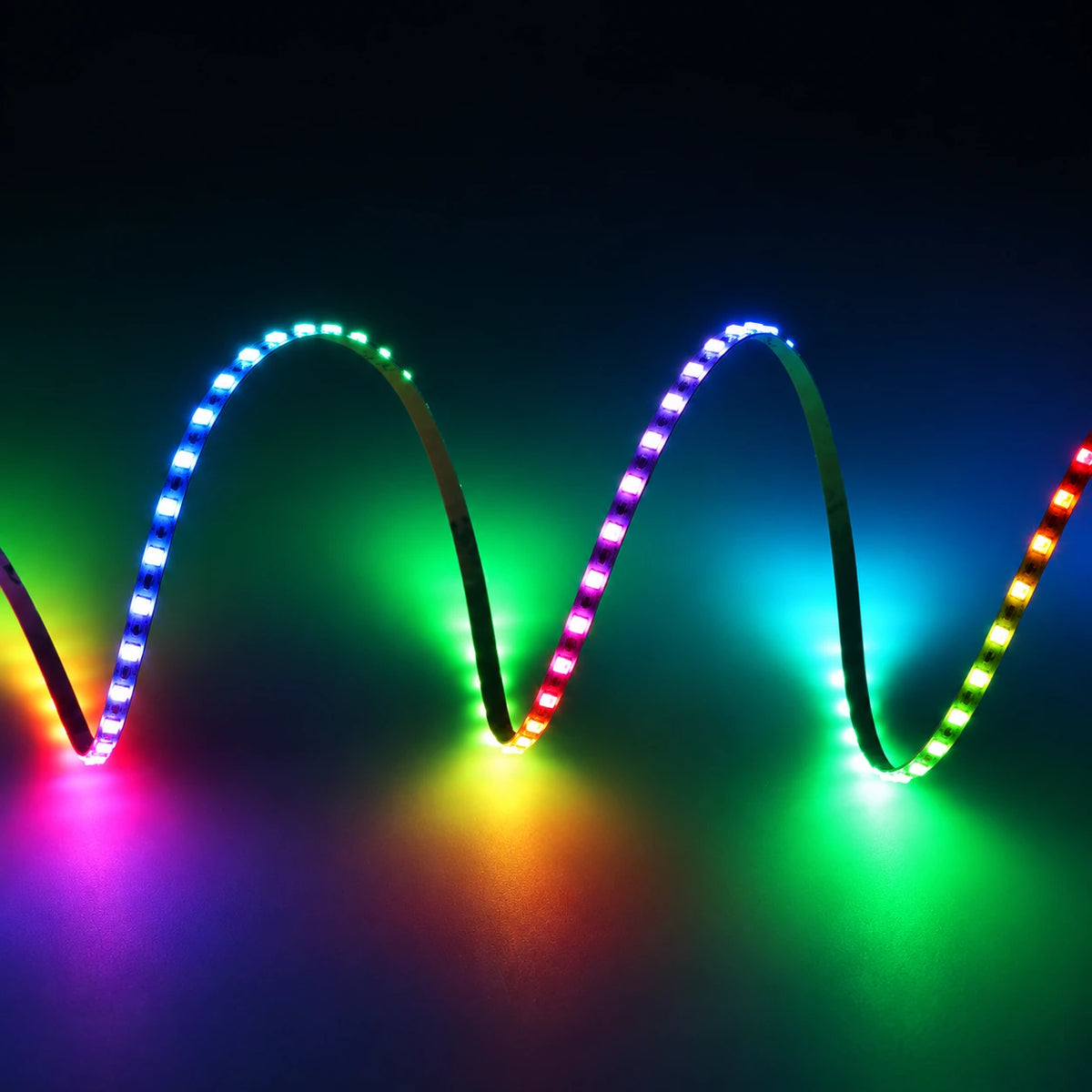

- Individually addressable: Single-point control enables chasing, flowing, rainbow, and programmable dynamic RGB effects.
- Built-in IC: Integrated addressable control design for programmable RGB effects.
- 160 LEDs/m: High LED density for smooth and detailed dynamic lighting effects.
- 12.5mm cutting interval: Fine cut spacing makes it easier to fit precise installation lengths.
- 5V and 12V options: Choose the voltage configuration that best matches your project.
Technical Specifications
| Catalog Model | ADDR-RGB-160-2.7MM-5V12V |
|---|---|
| Color | Addressable RGB |
| Input Voltage | DC5V / DC12V |
| Power | 6W/m (5V) / 5W/m (12V) |
| LED Density | 160 LEDs/m |
| PCB Width | 2.7mm |
| Control | Individually Addressable / Single-Point Control |
| Built-in IC | Yes |
| Programmable | Yes |
| Cutting Interval | 12.5mm / 0.49in |
| Beam Angle | 180° |
| Dimmable | Yes |
| CRI | 90 |
| Power Factor | 0.9 |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Rating | Non-Waterproof |
| LED Chip Brand | Sanan Optoelectronics |
| Rated Life | 50,000 Hours |
| Compliance | RoHS |
Cutting and Installation

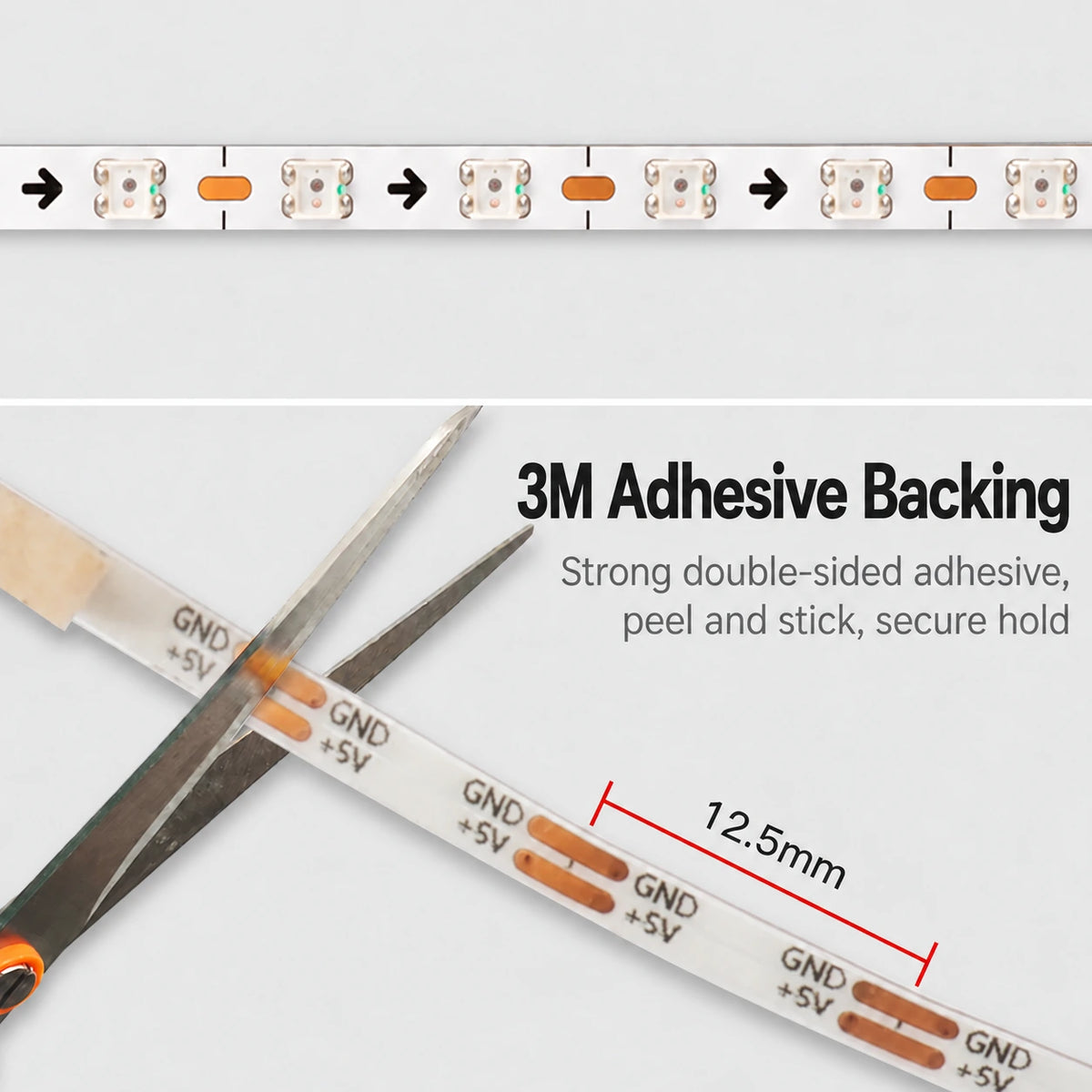

Cut only at the marked 12.5mm / 0.49in cutting points. Use a compatible addressable RGB controller and the correct regulated DC power supply for the selected 5V or 12V version. For longer runs, plan power distribution according to the installation length and load.
Recommended Applications
- KTV rooms, bars, and entertainment lighting
- Mirror, stair, cabinet, and shelf lighting
- Gaming setups and TV ambient lighting
- Automotive decorative lighting
- Retail displays and programmable decorative lighting
Purchase Information

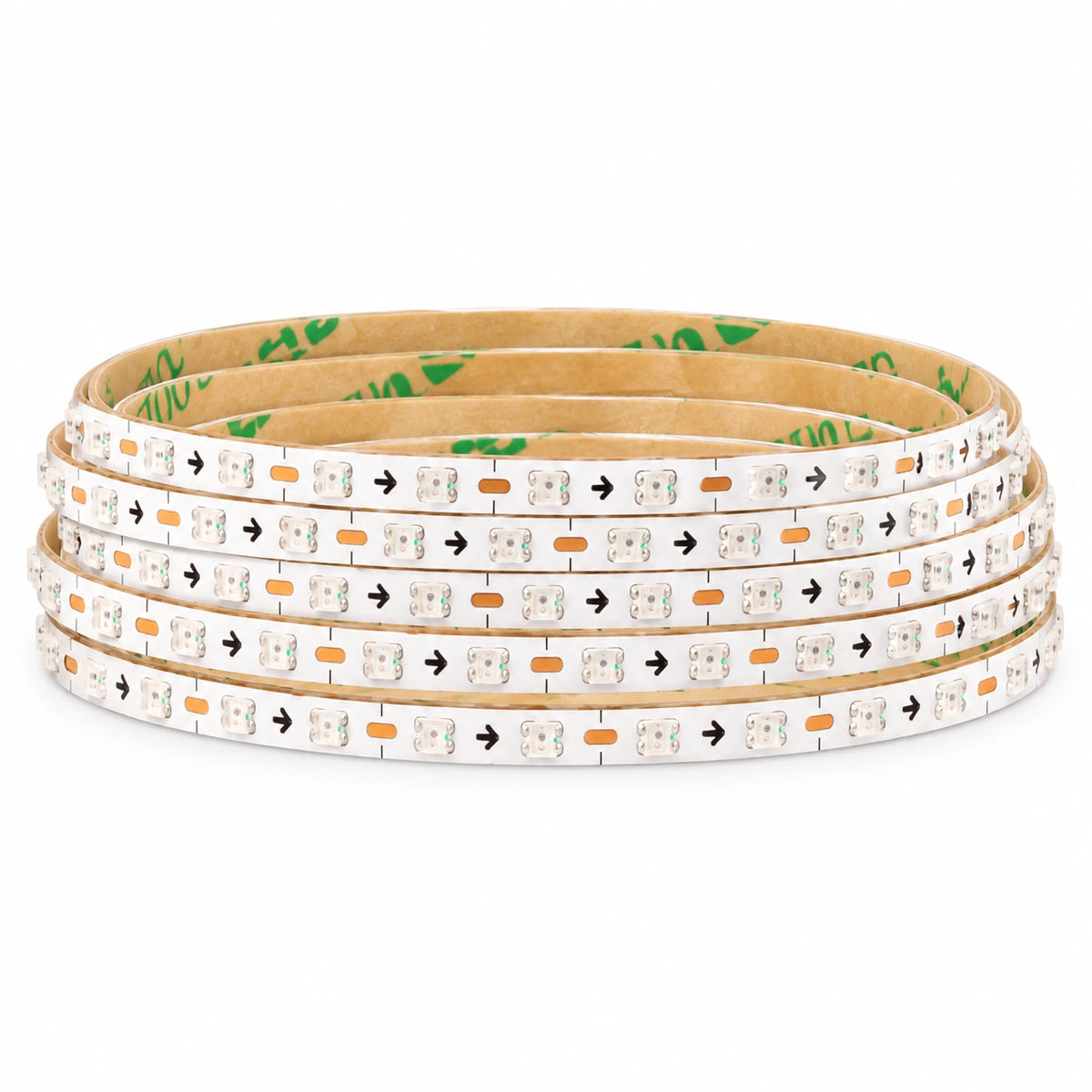

Standard length is 5m Reel / 16.4ft. Available in 5V 6W/m and 12V 5W/m configurations.
Compliance
RoHS compliant.
