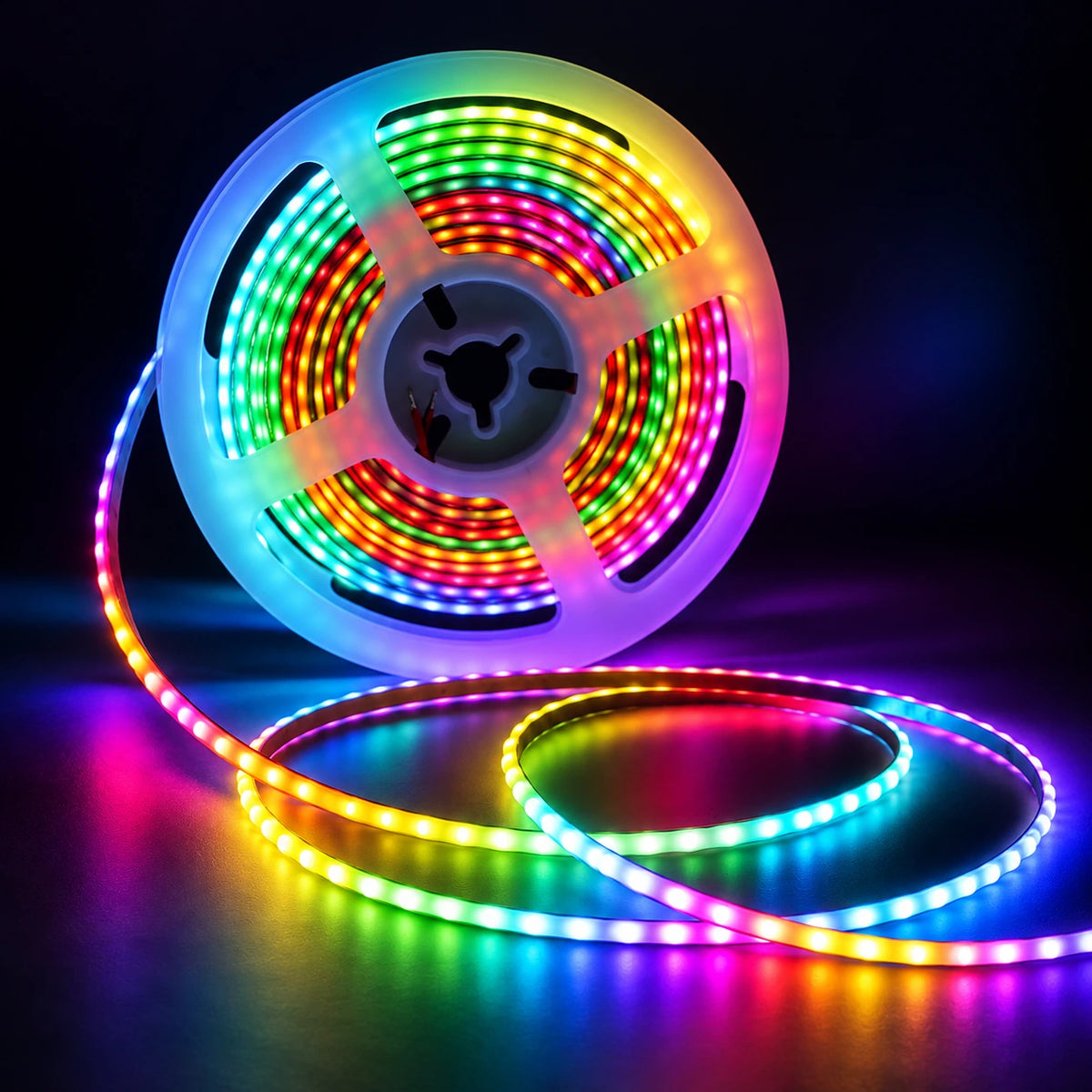

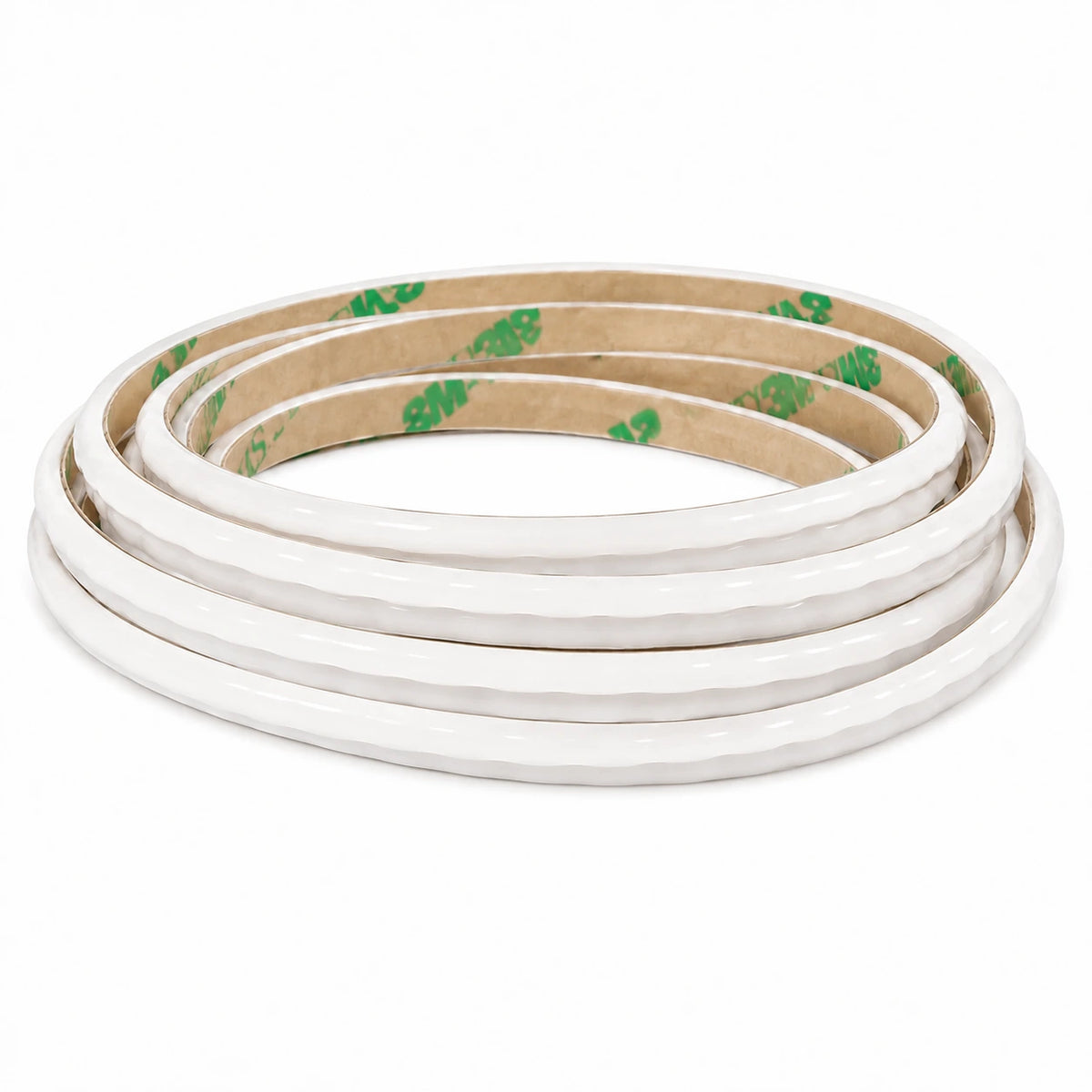

2.7mm Ultra Narrow 5V WS2812 Addressable RGB COB LED Strip Lights, 160 LEDs/m
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

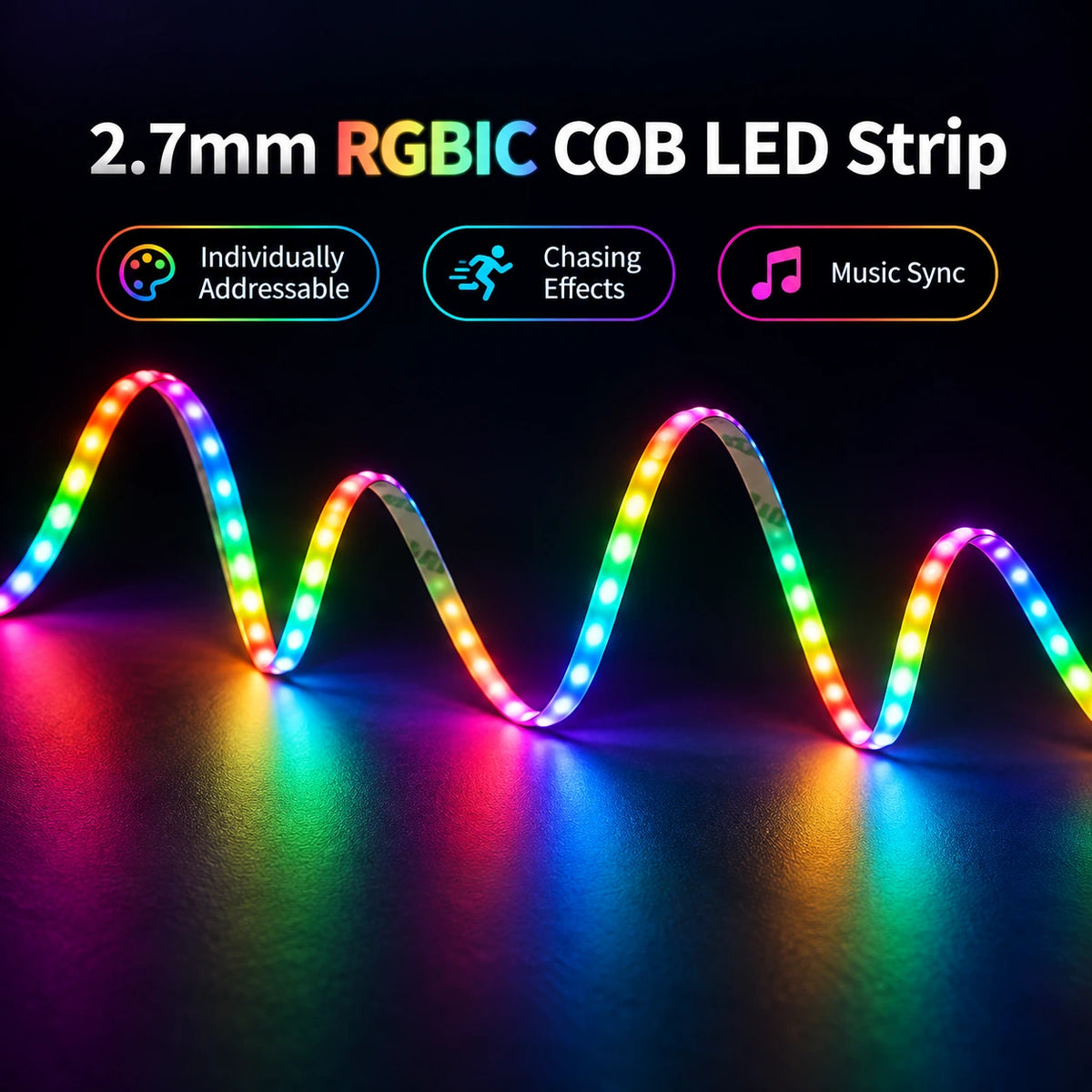

This 2.7mm ultra-narrow 5V WS2812 addressable RGB COB LED strip is designed for installations where standard-width LED strips are too wide. With 160 LEDs/m, individually addressable control, and a slim 2.7mm PCB, it delivers smooth dynamic RGB effects in tight channels, narrow grooves, compact displays, and other space-limited lighting projects.
Why Choose This Ultra-Narrow Addressable COB LED Strip?
- Ultra-narrow 2.7mm PCB: Fits narrow aluminum channels, slim grooves, cabinets, mirrors, display edges, and other compact installations.
- Individually addressable: Single-point control lets each LED be controlled independently for chasing, flowing, rainbow, pixel, and programmable effects.
- WS2812 control: Built-in WS2812 IC with a simple 3-wire +5V / Data / GND connection.
- 160 LEDs/m: High-density COB construction helps create a smooth, continuous-looking RGB light line.
- 12.5mm cut length: Fine cutting intervals make it easier to fit short or precise installation lengths.
- Low-voltage 5V operation: Works with compatible WS2812 controllers and regulated 5V DC power supplies.
Technical Specifications
| Catalog Model | WS2812-160-2.7MM-5V-ADDRESSABLE-COB |
|---|---|
| LED Type | 1010 COB |
| IC Type | WS2812 |
| Color | Addressable RGB |
| Input Voltage | DC5V |
| Power | 12W/m |
| LED Density | 160 LEDs/m |
| PCB Width | 2.7mm |
| Control | Individually Addressable / Single-Point Control |
| Wire Type | 3-Wire: +5V / Data / GND |
| Cutting Interval | 12.5mm / 0.49in |
| Beam Angle | 180° |
| Dimmable | Yes |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Rating | IP20 Non-Waterproof |
| LED Chip Brand | Sanan Optoelectronics |
| Rated Life | 50,000 Hours |
| Compliance | RoHS |
Cutting and Installation
Cut the strip only at the marked 12.5mm / 0.49in cutting points. Connect +5V, Data, and GND to a compatible WS2812 addressable controller and a regulated 5V DC power supply. For longer runs or high-brightness operation, additional power injection may be required to reduce voltage drop.
Recommended Applications
- Ultra-narrow aluminum channels and recessed grooves
- Cabinet, shelf, mirror, and display-edge lighting
- Gaming rooms, PC setups, and TV ambient lighting
- KTV rooms, bars, and entertainment spaces
- Retail displays, signs, and programmable decorative lighting
Purchase Information
Standard length is 5m Reel / 16.4ft. A compatible WS2812 controller and regulated 5V DC power supply are required for operation.
Compliance
RoHS compliant. Contact us for project-specific product documentation or technical support.
