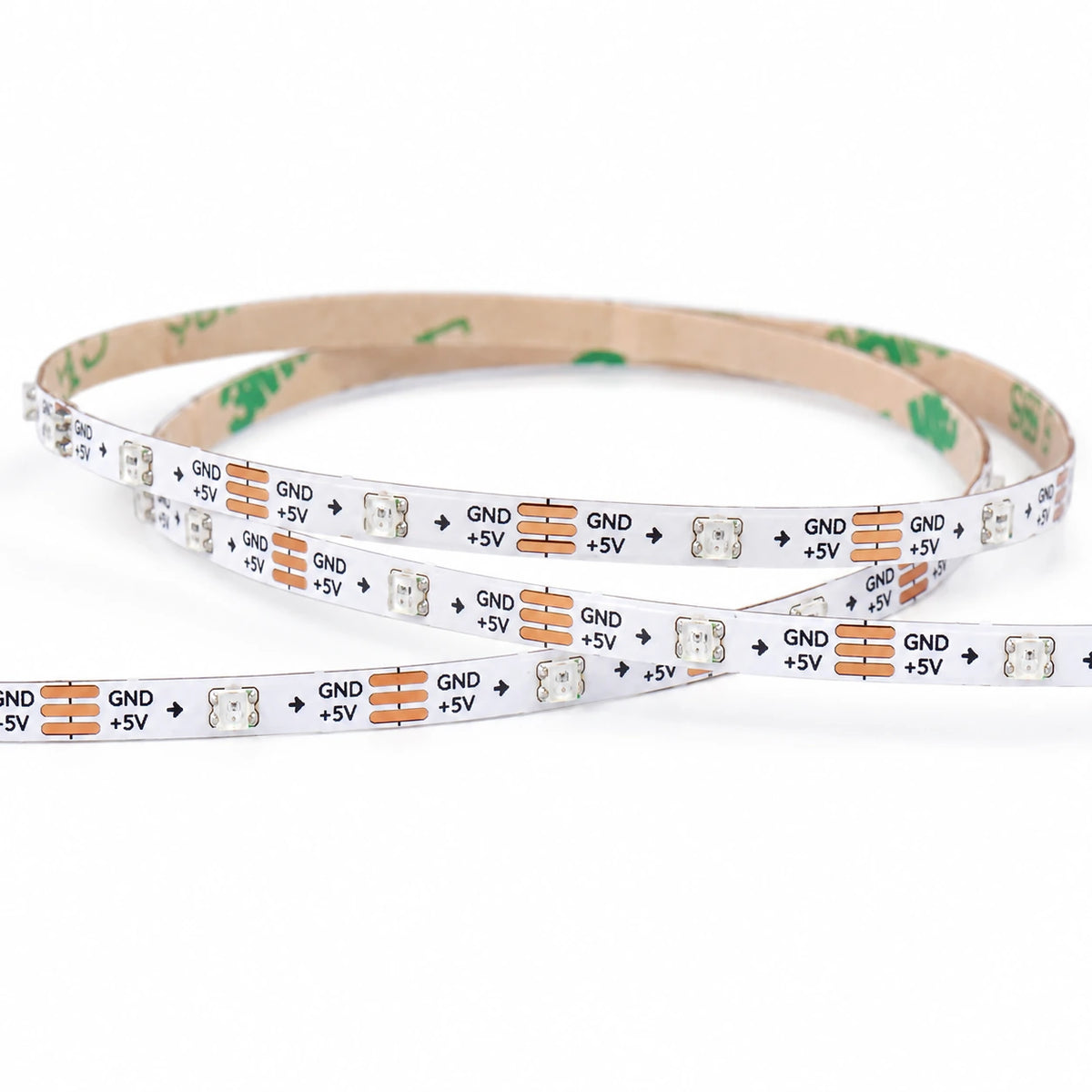

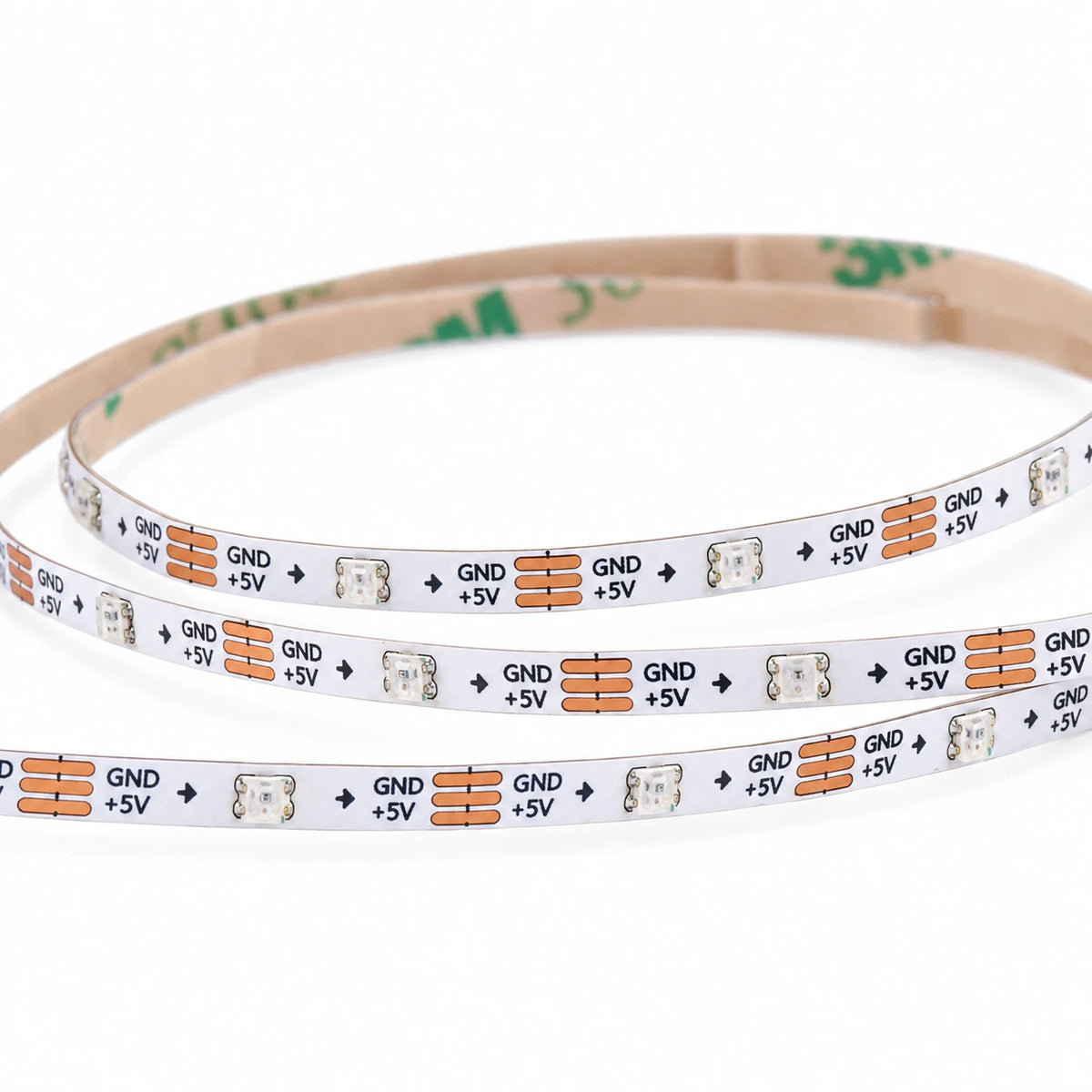

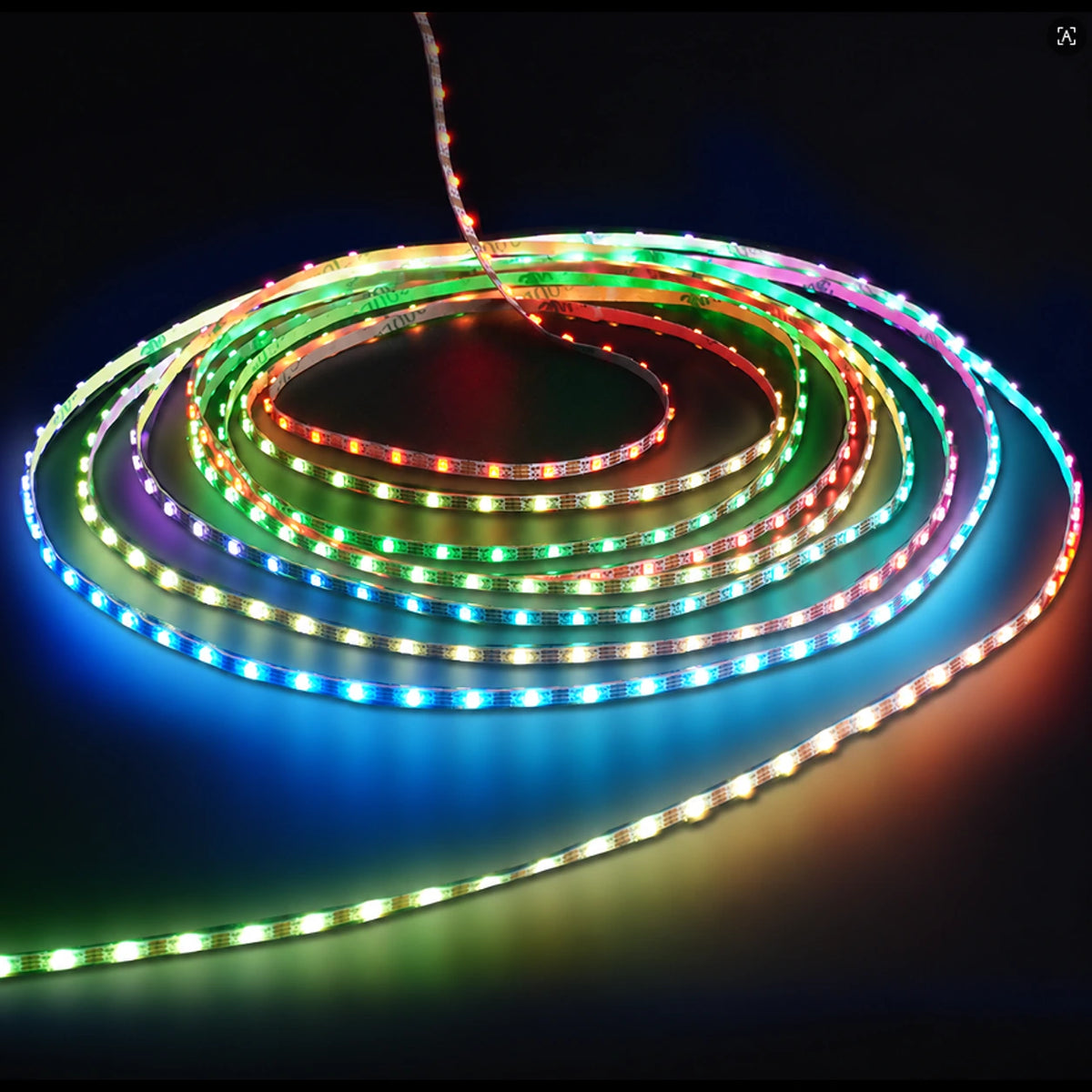

2.7mm Ultra Narrow 5V WS2812 Addressable RGB SMD LED Strip Lights, 60 LEDs/m
Regular price
$19.90
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 2.7mm ultra-narrow 5V WS2812 addressable RGB LED strip is designed for tight installations where standard-width LED strips are too wide. With 60 LEDs/m, 1 LED 1 IC control, and a slim 2.7mm PCB, each LED can be controlled independently for chasing, flowing, rainbow, and other programmable RGB effects.
Why Choose This Ultra-Narrow Addressable RGB LED Strip?
- 2.7mm ultra-narrow PCB: Ideal for narrow grooves, slim channels, mirrors, cabinets, displays, and compact installations.
- Individually addressable: 1 LED 1 IC allows each LED to be controlled independently.
- WS2812 built-in IC: Supports programmable chasing, flowing, rainbow, and dynamic RGB effects.
- 60 LEDs/m: Suitable for decorative and ambient addressable lighting projects.
- 17mm cutting interval: Cut at the marked points for project-specific installation lengths.
- Low-voltage 5V operation: Designed for compatible WS2812 controllers and regulated 5V DC power supplies.
Technical Specifications
| Catalog Model | WS2812-60-2.7MM-5V-ADDRESSABLE-RGB |
|---|---|
| IC Type | WS2812 |
| Color | Addressable RGB |
| Input Voltage | DC5V |
| Power | 5W/m |
| LED Density | 60 LEDs/m |
| PCB Width | 2.7mm |
| Control | Individually Addressable / 1 LED 1 IC |
| Built-in IC | Yes |
| Programmable | Yes |
| Cutting Interval | 17mm / 0.67in |
| Beam Angle | 120° |
| Dimmable | Yes |
| Power Factor | 0.9 |
| Waterproof Rating | IP20 Non-Waterproof |
| LED Chip Brand | Sanan Optoelectronics |
| Standard Length | 5m Reel / 16.4ft |
| Rated Life | 50,000 Hours |
| Compliance | RoHS |
Cutting and Installation
Cut only at the marked 17mm / 0.67in cutting points. Use a compatible WS2812 addressable RGB controller and a regulated 5V DC power supply. This IP20 version is intended for dry indoor installations.
Recommended Applications
- Gaming and TV ambient lighting
- KTV rooms, bars, and entertainment spaces
- Mirror, cabinet, stair, and display lighting
- Automotive decorative lighting
- Programmable RGB accent lighting
Purchase Information
Standard length is 5m Reel / 16.4ft.
Compliance
RoHS compliant.
