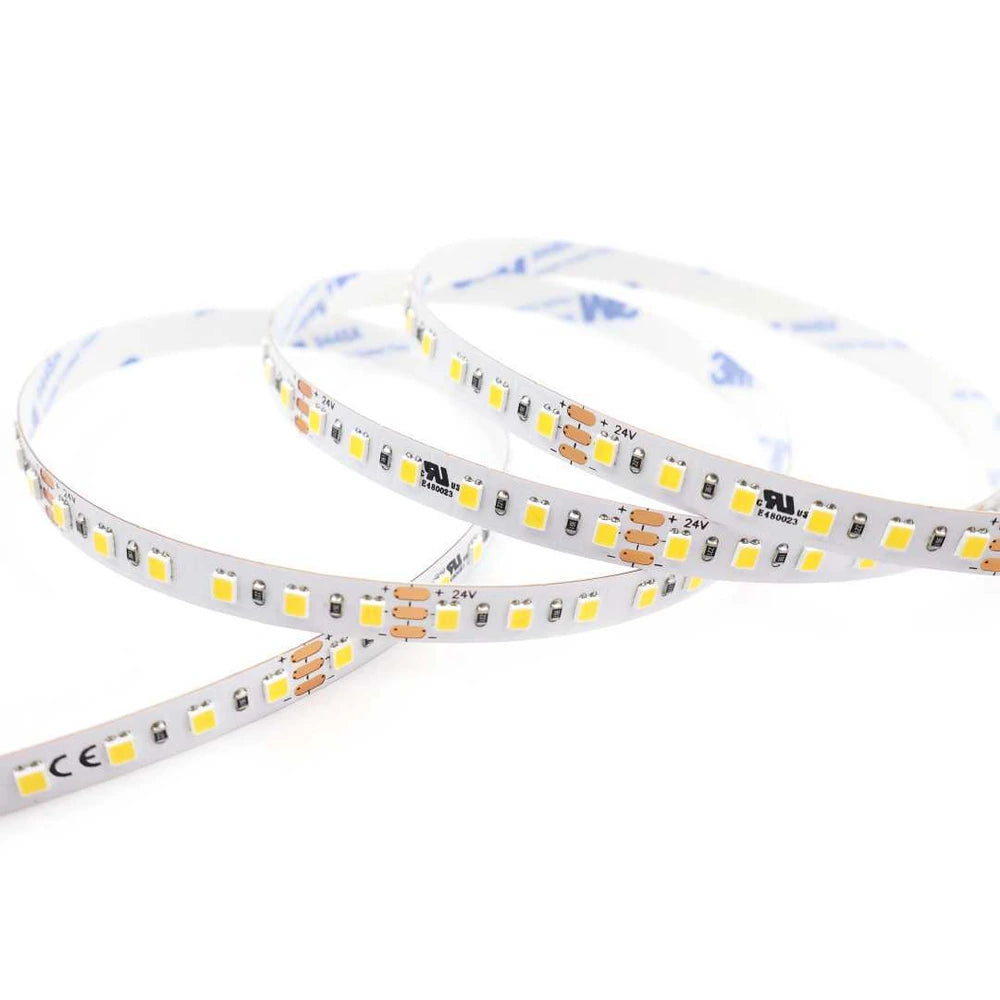

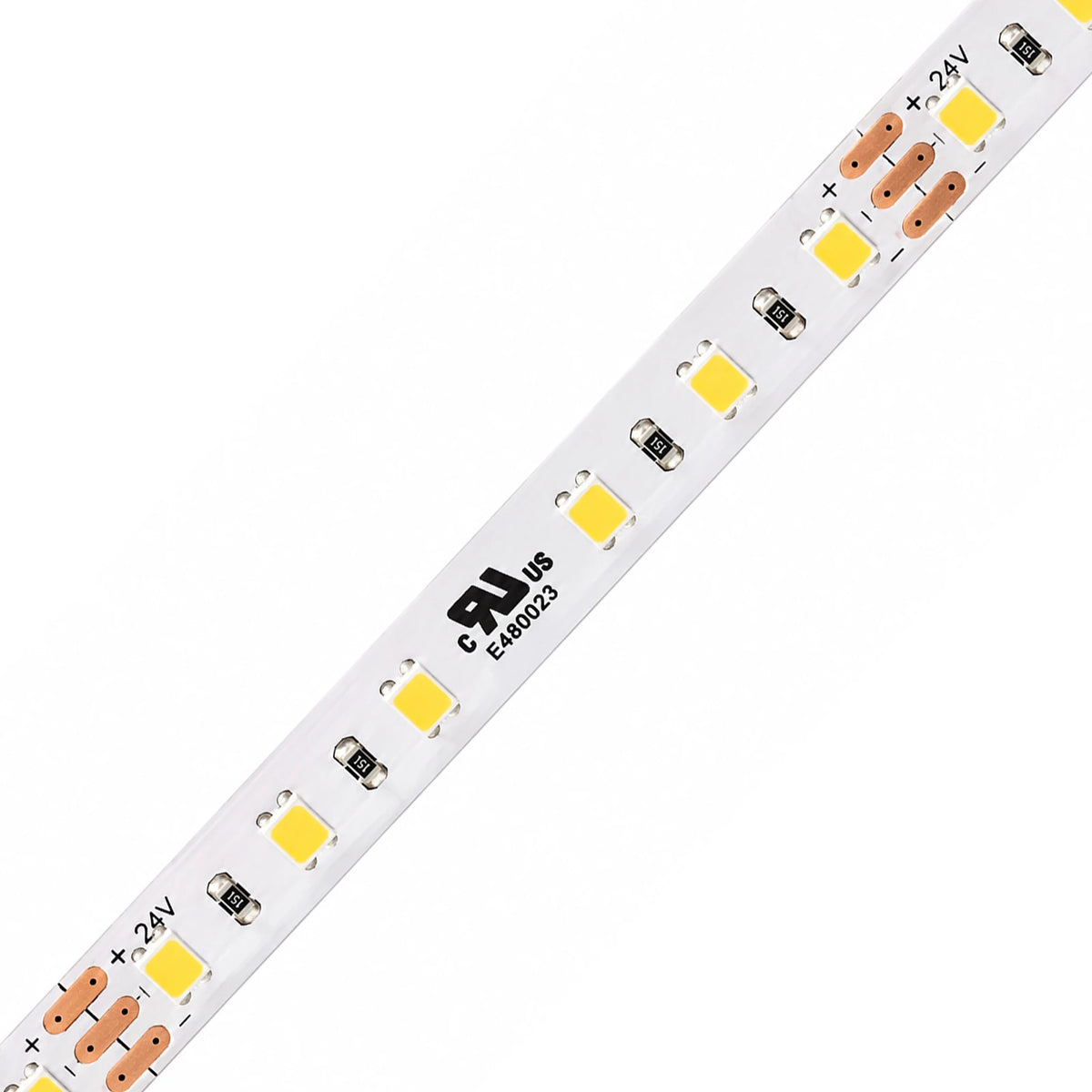

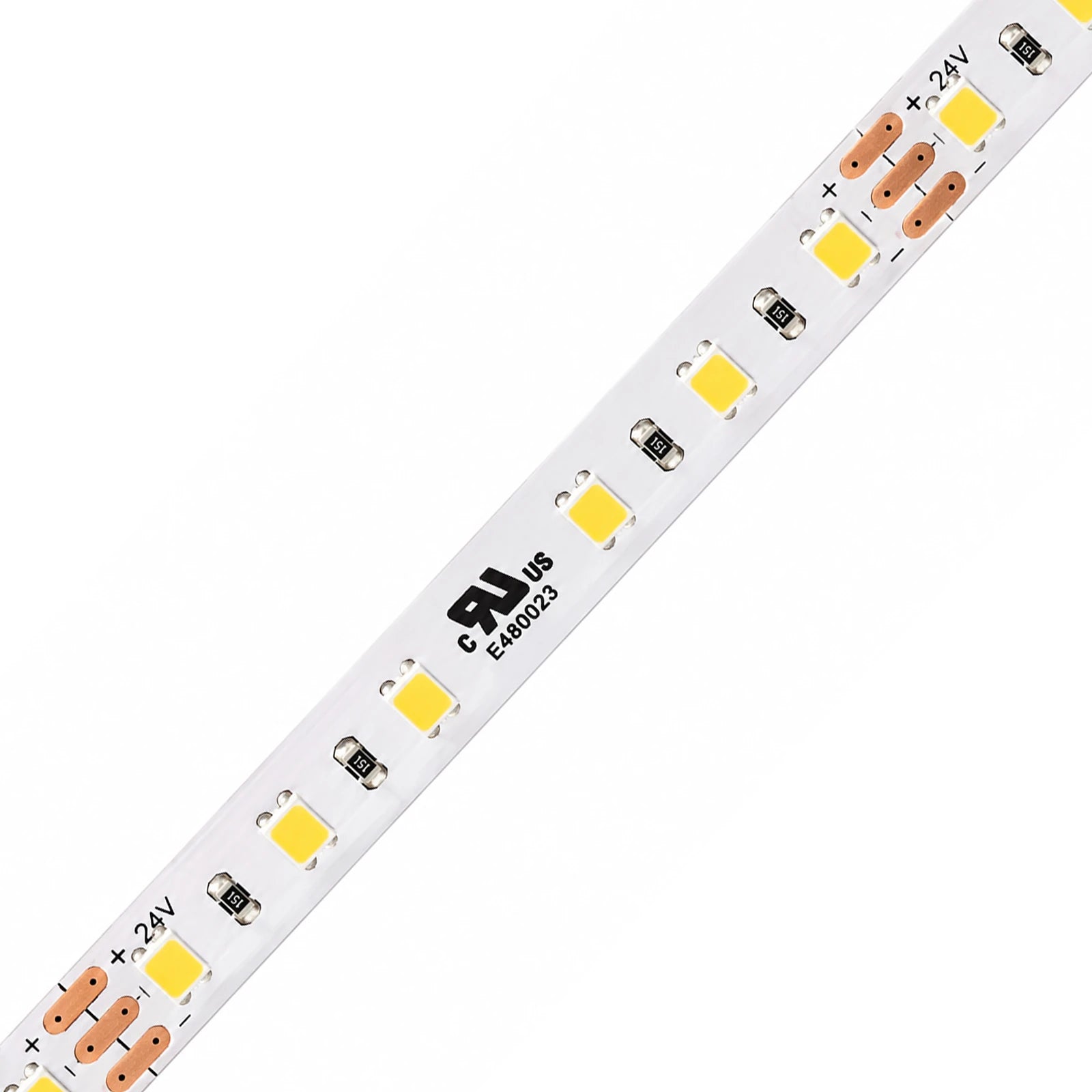

8mm SMD 2835 3-Level Power-Selectable White LED Strip Light, 120 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 8mm 2835 white LED strip is switchable between three power levels — 5W, 8W, or 13W per meter — on a single 24V board, so you can dial output from soft accent to high-brightness (up to 1463 lm/m) without changing product or rewiring.
Why Choose This LED Strip?
- Three brightness levels: select 5W, 8W, or 13W/m from one strip.
- Up to 1463 lm/m: reaches high-output brightness at the top setting.
- One SKU, many jobs: covers accent to task lighting without swapping strips.
- 24V circuit: supports the higher-power setting across longer runs.
Technical Specifications
| Catalog Model | 2835-120-8mm-24V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | 5W / 8W / 13W per meter selectable (Up to 13W/m) |
| Luminous Output | 589/886/1463lm/m |
| Color Rendering | 95 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |
| LED Pitch | 8.3mm |
| Cutting Interval | 50mm / 1.97in, 6 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

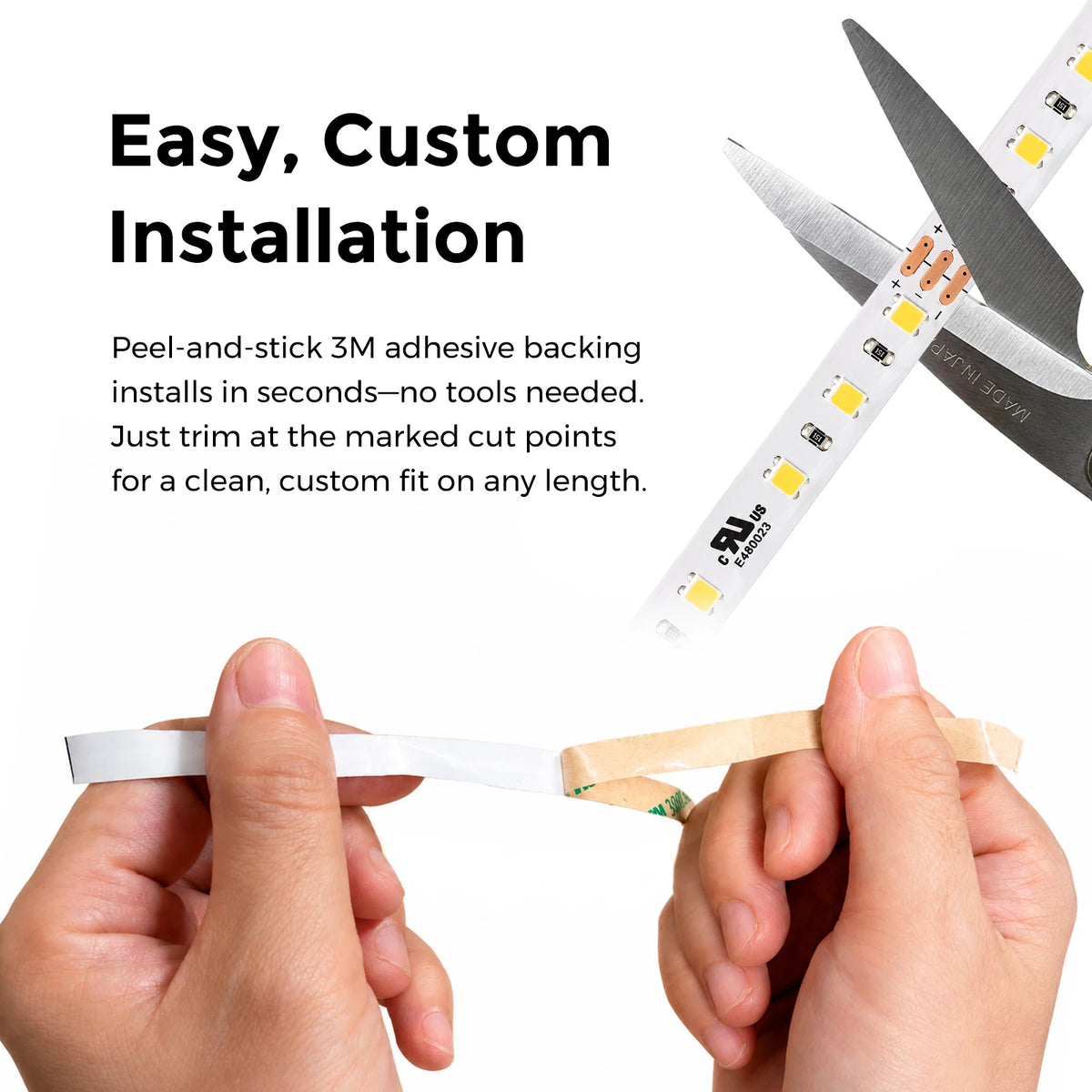

Cutting & Installation
Set the power level (5W, 8W, or 13W/m) before installation per the product marking, then cut only at the marked points (50mm / 1.97in, 6 LEDs per cut) and observe polarity. Size the 24V constant-voltage supply for the highest setting you plan to use, with at least 20% reserve, and add feed points on long runs.

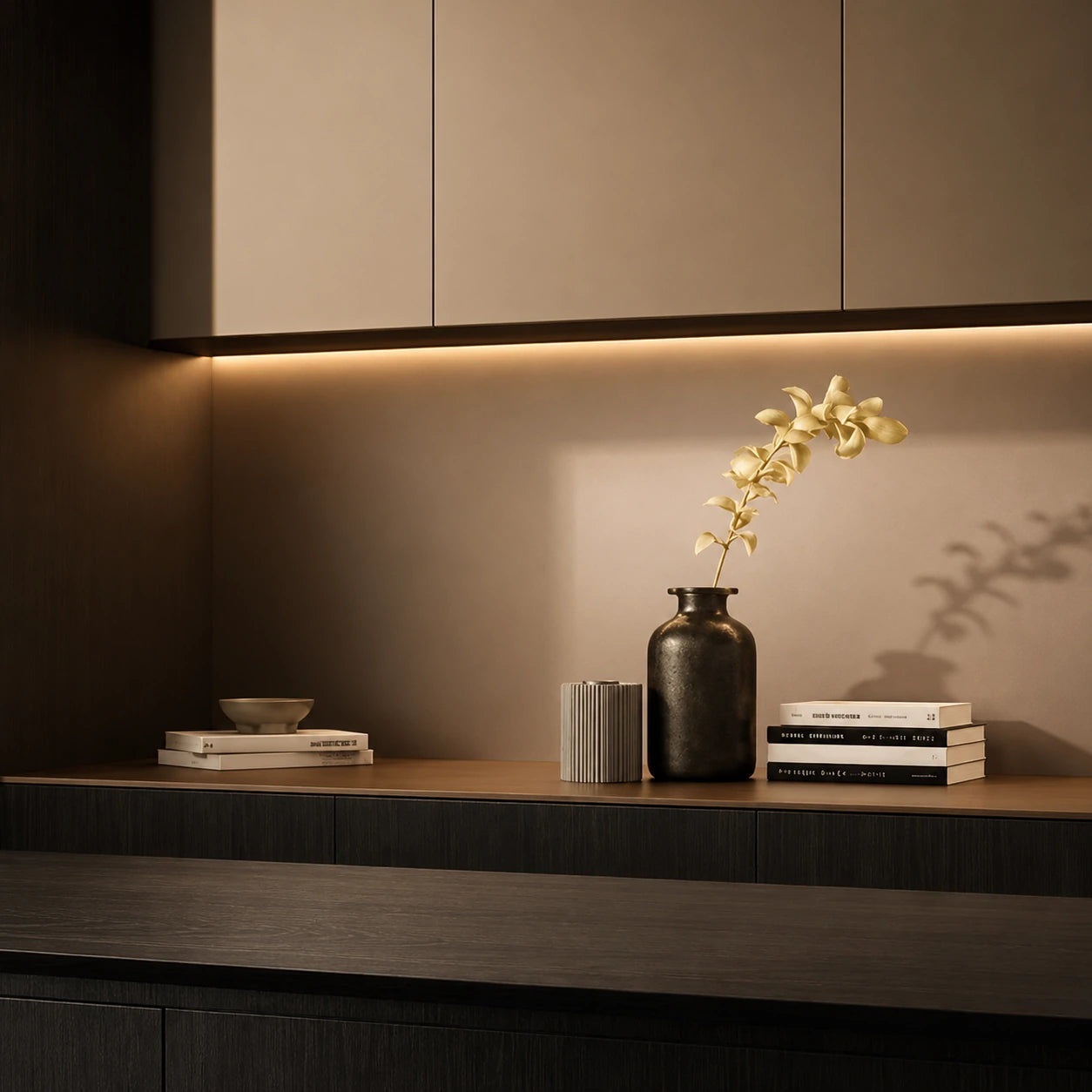

Recommended Applications
- Projects needing adjustable brightness
- Mixed accent-and-task commercial lighting
- Installs where output is tuned on site
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
