8/10mm COB RGB LED Strip Light, 576 LEDs/m, 12V/24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The COB-576-8/10mm-12/24V-RGB combines 576 LEDs/m COB LEDs with a 8/10mm format and DC12/24V operation. It uses COB technology for a continuous dot-free light line with a wide emitting angle. Its listed color option is RGB Color Changing. This listed 8/10mm COB RGB LED Strip Light, 576 LEDs/m, 12V/24V configuration is catalogued for that application.
Why Choose These LED Strip Lights?
- Continuous dot-free light: COB construction creates a smooth, uninterrupted linear light effect.
- Wide emission: The catalog highlights wide-angle output, high color rendering, and flexible installation.
- Refined display lighting: Designed for close-range cabinet, mirror, showcase, and architectural detailing.
- LED density: 576 LEDs/m LED layout for the catalog configuration.
- Color rendering: Catalog CRI shown where specified.
- Power: 14W/m.
- Luminous output: Output varies by color temperature and configuration.
Technical Specifications
| Catalog Model | COB-576-8/10mm-12/24V-RGB |
|---|---|
| LED Type | COB |
| LED Density | 576 LEDs/m |
| PCB / Product Width | 8/10mm |
| Input Voltage | DC12/24V |
| Power | 14W/m |
| Luminous Output | Output varies by color temperature and configuration |
| Color Rendering | Catalog CRI shown where specified |
| Color / CCT | RGB Color Changing |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Observe polarity, use the specified constant-voltage power supply, and test the strip before final mounting. For longer runs, add feed points where voltage drop becomes visible. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

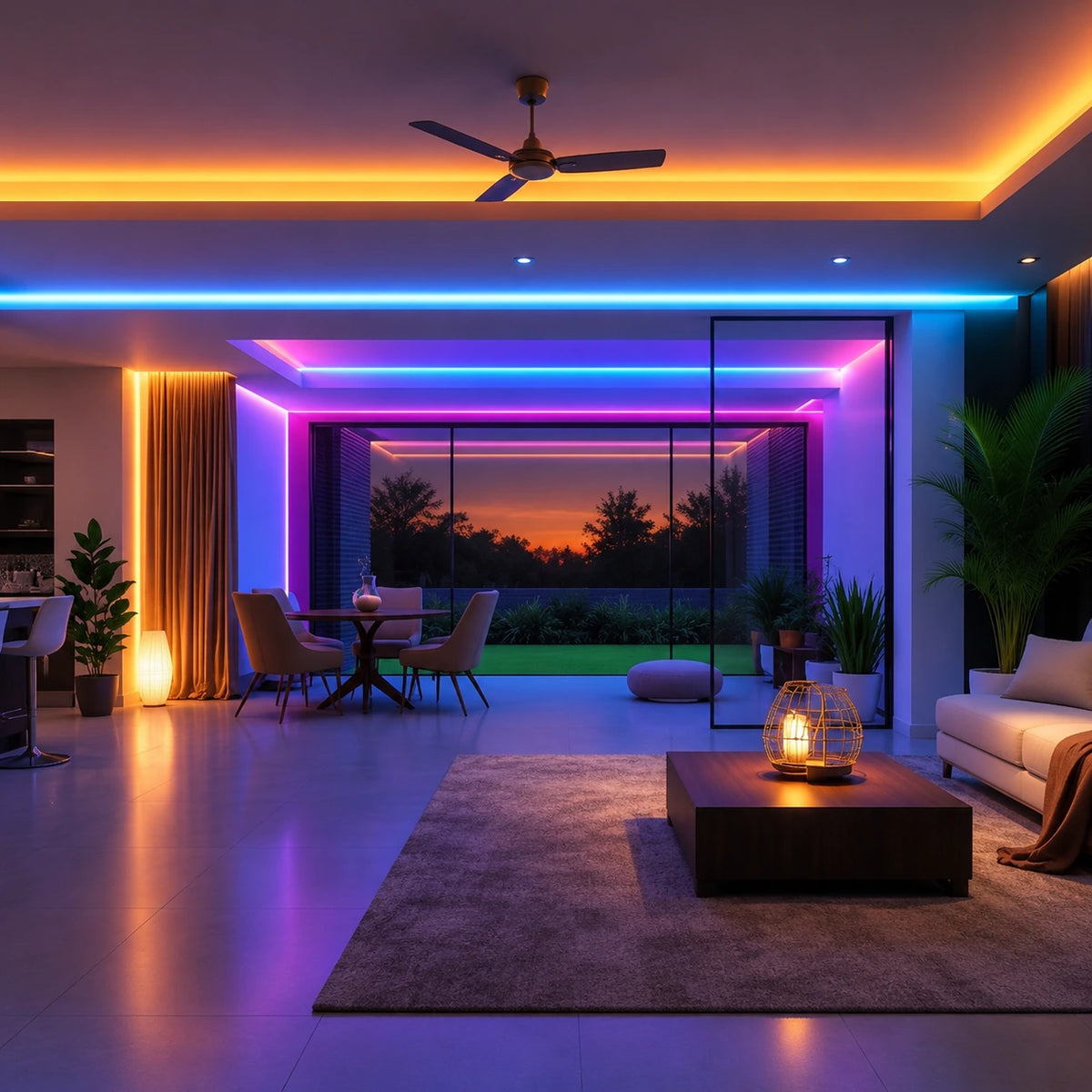

Recommended Applications
- Jewelry, watch, cosmetics, museum, gallery, and glass-display lighting
- Ceilings, TV backdrops, entryways, stairs, mirrors, cabinets, wardrobes, and bar lighting
- Offices, workstations, hospitals, hotels, models, counters, and refined architectural details
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT or color mode, CRI, output level, PCB width, reel length, adhesive backing, cable, connector, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
