12mm SMD 5050 RGBW LED Strip Light, 96 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This RGBW LED strip combines a 12mm 5050 platform with 96 LEDs/m and a dedicated white LED on every segment, running on 12V. Because it's a true 4-in-1 rgbw led strip lights design, you get saturated RGB color and clean, usable white from the same strip - no muddy "RGB white." As a flexible strip led rgbw, it's offered in IP20 or IP67 waterproof construction on a 5m reel.
Why Choose This RGBW LED Strip?
- RGB + real white: A separate white channel gives you proper white light for everyday use, plus full color scenes on demand.
- 5050 4-in-1 chips: Bright, well-mixed color from a proven 5050 rgbw led strip platform.
- 12V flexible: Simple DIY wiring for home and accent projects (rgbw led strip 12v).
- 96 LEDs/m: Even output across the 12mm PCB.
- IP20 or IP67: Choose IP67 as a waterproof rgbw led strip.
- 5m reel: Cut-to-fit at marked points.
Technical Specifications
| Catalog Model | 5050-96-12mm-12V-RGBW |
|---|---|
| LED Type | SMD 5050 (RGBW 4-in-1) |
| LED Density | 96 LEDs/m |
| PCB Width | 12mm |
| Input Voltage | DC12V |
| Power | 7W/m |
| Color | RGBW (RGB + White) |
| Control | Compatible 12V RGBW controller (sold separately) |
| LED Spacing | 10.4 mm (0.41 in) |
| Cutting Interval | 31.25 mm (1.23 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Connect to a compatible 12V RGBW (4-channel) controller and a 12V constant-voltage power supply, matching R/G/B/W markings. Keep 12V runs short or inject power at both ends of longer spans. Mount on a clean surface or into a 12mm aluminum channel.

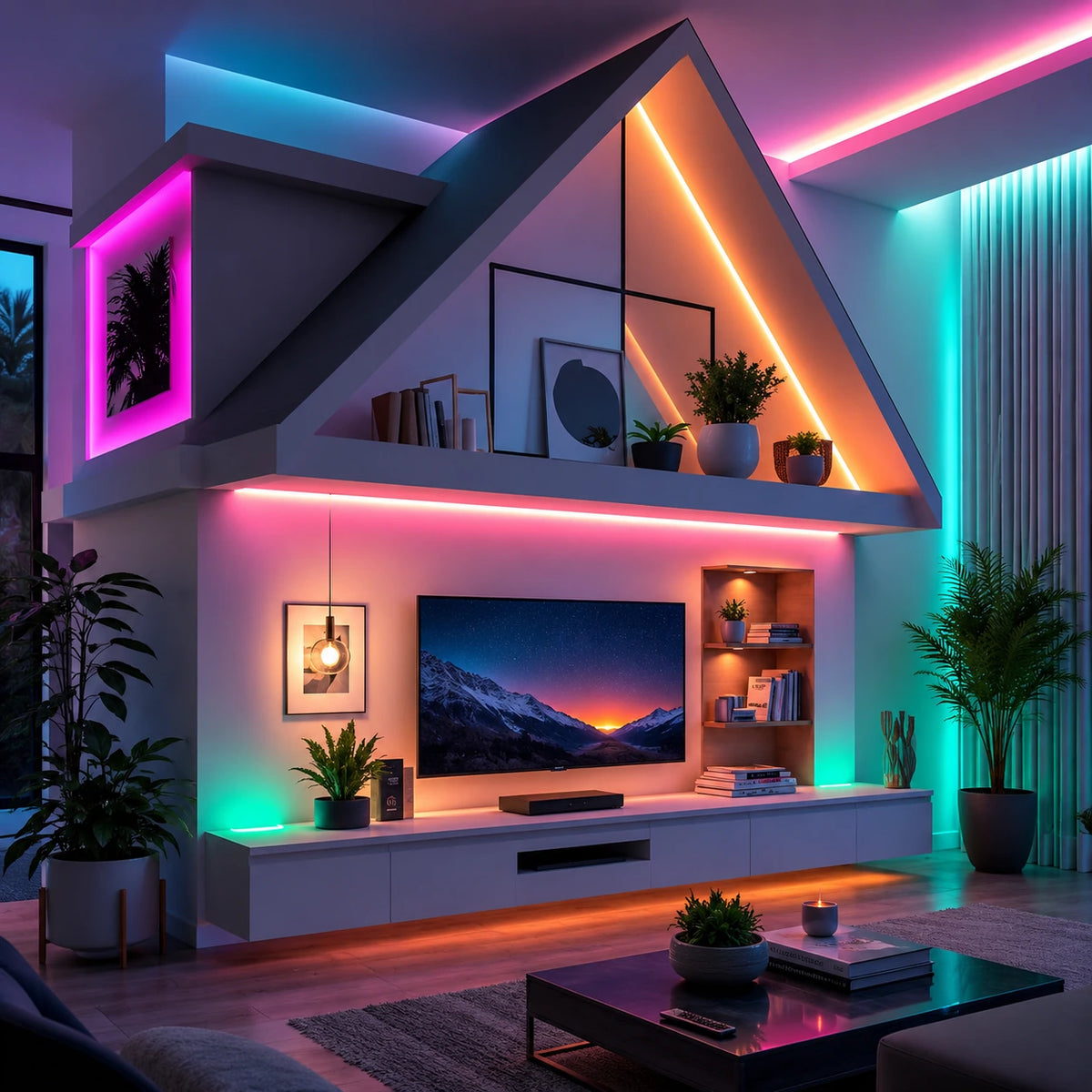

Recommended Applications
- Living rooms, bedrooms, and kitchens needing both white task light and color ambience
- Home theaters and gaming rooms with switchable white/color scenes
- Retail and hospitality accents that alternate between clean white and color
Purchase Options and Customization
Standard length is a 5m reel (16.4ft). We can quote RGBW controller, voltage, cable, connector, IP20/IP67 construction, and packaging for project volumes.
Compliance
Manufactured to CE, RoHS, UKCA, and additional international compliance standards. Contact us for the full certification package (including UL where applicable to your SKU) or project-specific support.
