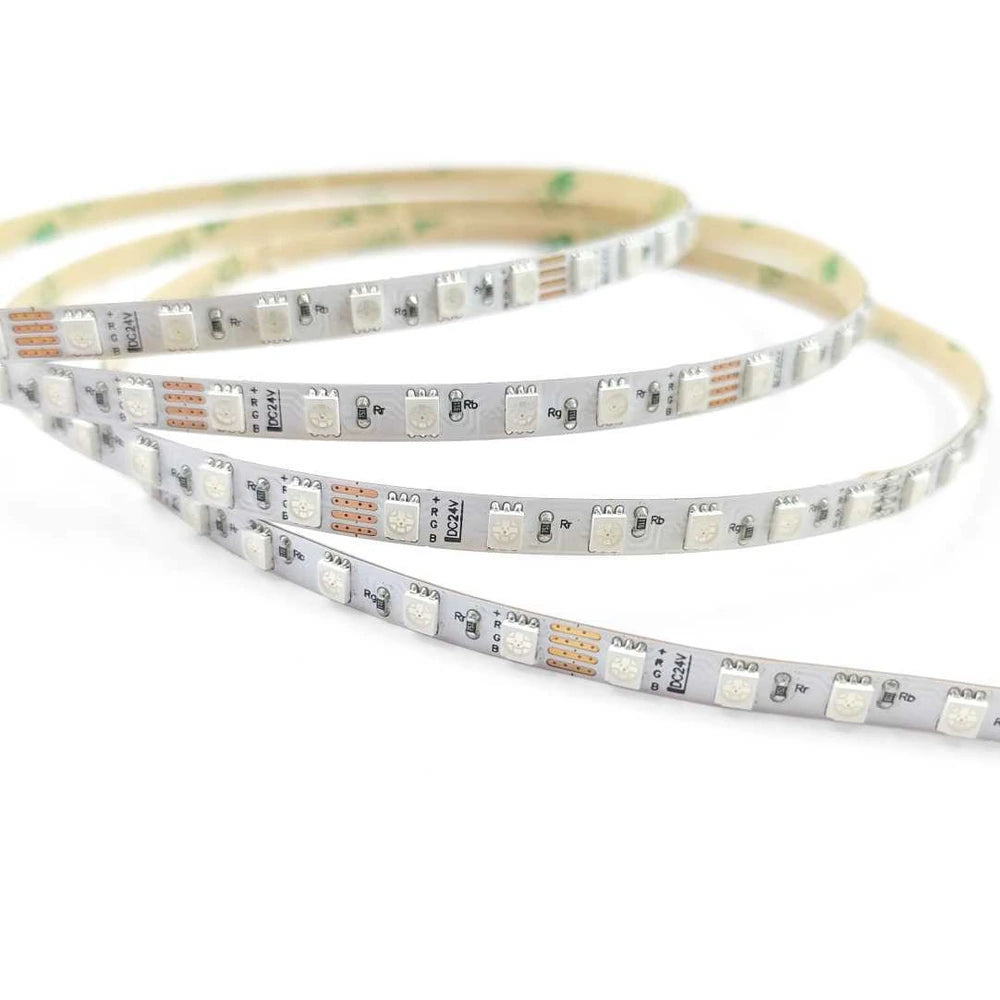

5mm SMD 2835 RGB LED Strip Light, 120 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
These 24V RGB LED strip lights pair a slim 5mm 2835 profile with 120 LEDs/m for color-changing accent light over longer runs. Choosing 24V over 12V means lower current, less voltage drop, and longer continuous runs from a single feed - ideal for room-length installs. This 24v rgb led strip is offered in IP20 or IP67 silicone-coated waterproof construction on a 5m reel, with the same low-profile 5mm width for narrow channels.
Why Choose This 24V RGB LED Strip?
- Longer runs, less drop: 24V carries color evenly over longer distances than 12V - fewer power injection points.
- Slim 5mm profile: Fits narrow channels and reveals as a discreet color accent.
- Color-changing RGB: Full-spectrum RGB scenes via any compatible 24V controller.
- IP67 silicone option: A 24v silicone coated rgb color changing led strip build for damp and outdoor-adjacent areas.
- 120 LEDs/m: Dense, uniform color output.
- 5m reel: Cut-to-fit at marked points.
Technical Specifications
| Catalog Model | 2835-120-5mm-24V-RGB |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB Width | 5mm (slim) |
| Input Voltage | DC24V |
| Color | RGB Color Changing |
| Control | Compatible 24V RGB controller (sold separately) |
| Power | Up to 7W/m |
| LED Pitch | 8.3mm |
| Cutting Interval | 50mm / 1.97in, 6 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof (silicone-coated) |

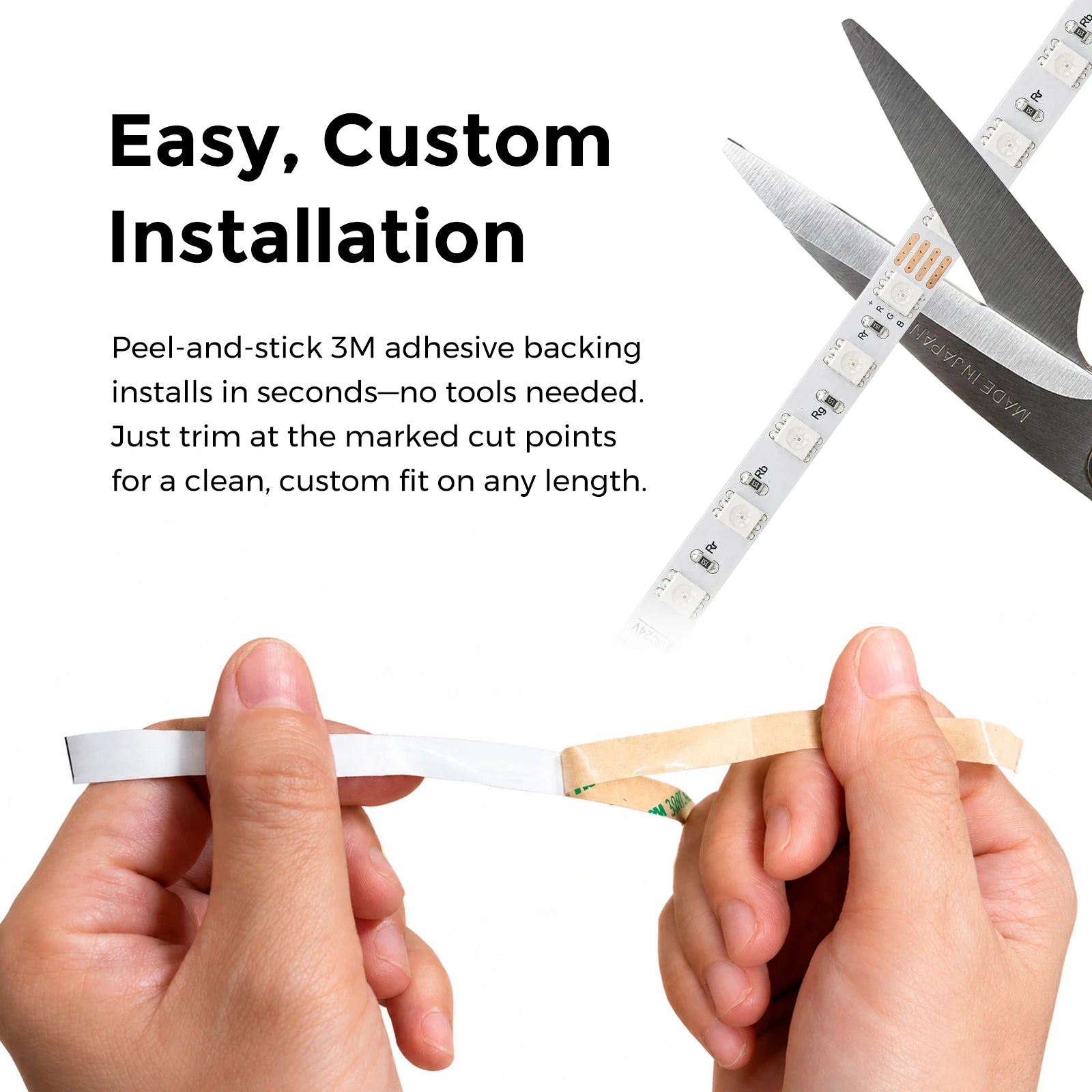

Cutting and Installation
Cut only at the marked cut points (50mm / 1.97in, 6 LEDs per cut). Connect to a compatible 24V RGB controller and a 24V constant-voltage power supply, matching R/G/B markings. The 24V design supports longer single runs than 12V; still size the supply with at least 20% reserve. Mount on a clean surface or into a 5-6mm aluminum channel.

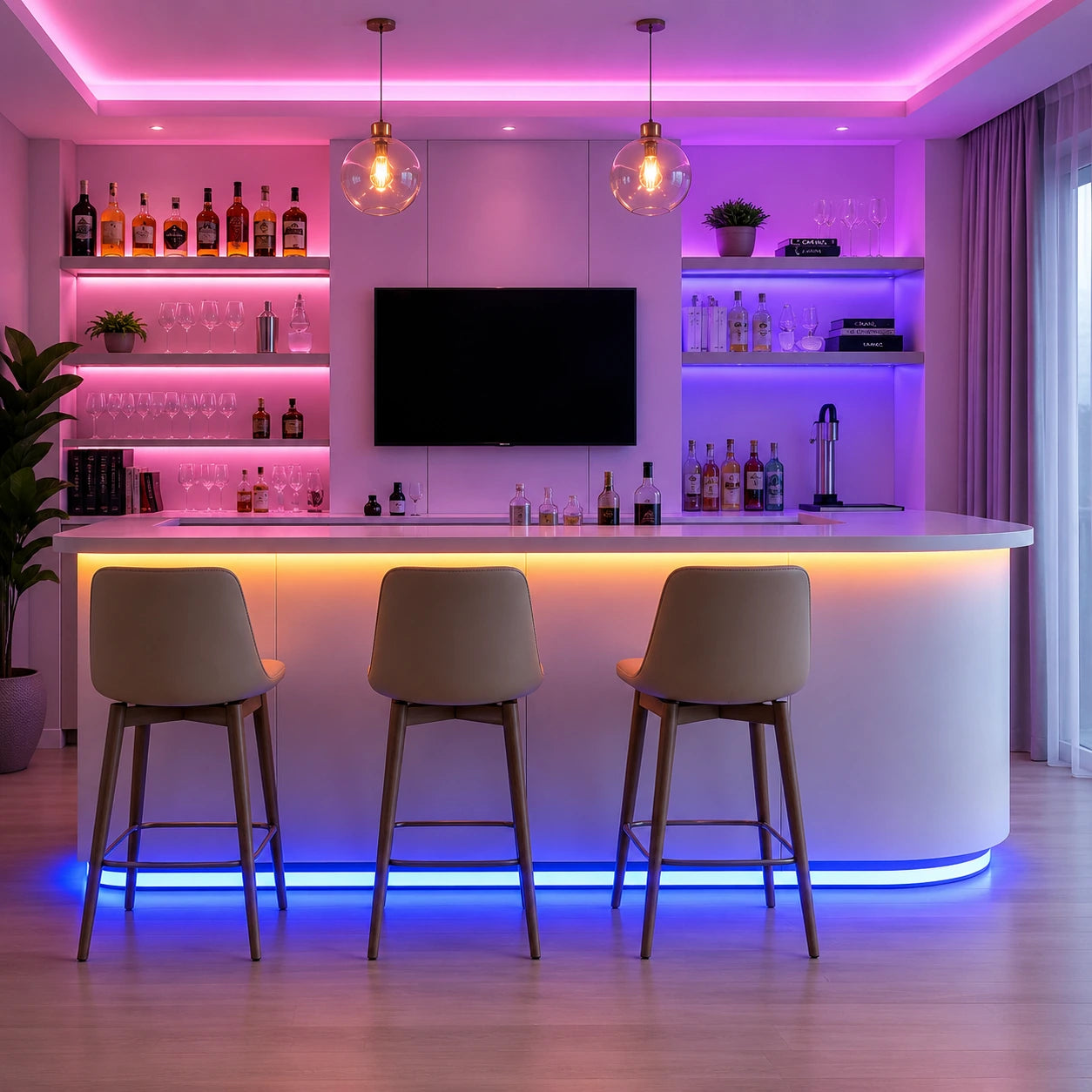

Recommended Applications
- Room-length cove, ceiling, and perimeter color accents
- Retail, hospitality, and display runs that need one feed over a long span
- Damp or splash-prone areas using the IP67 silicone-coated build
Purchase Options and Customization
Standard length is a 5m reel (16.4ft). We can quote RGB controller, voltage, cable, connector, IP20/IP67 construction, and packaging for project volumes.
Compliance
Manufactured to CE, RoHS, UKCA, and additional international compliance standards. Contact us for the full certification package (including UL where applicable to your SKU) or project-specific support.
