5mm SMD 2835 RGB LED Strip Light, 120 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

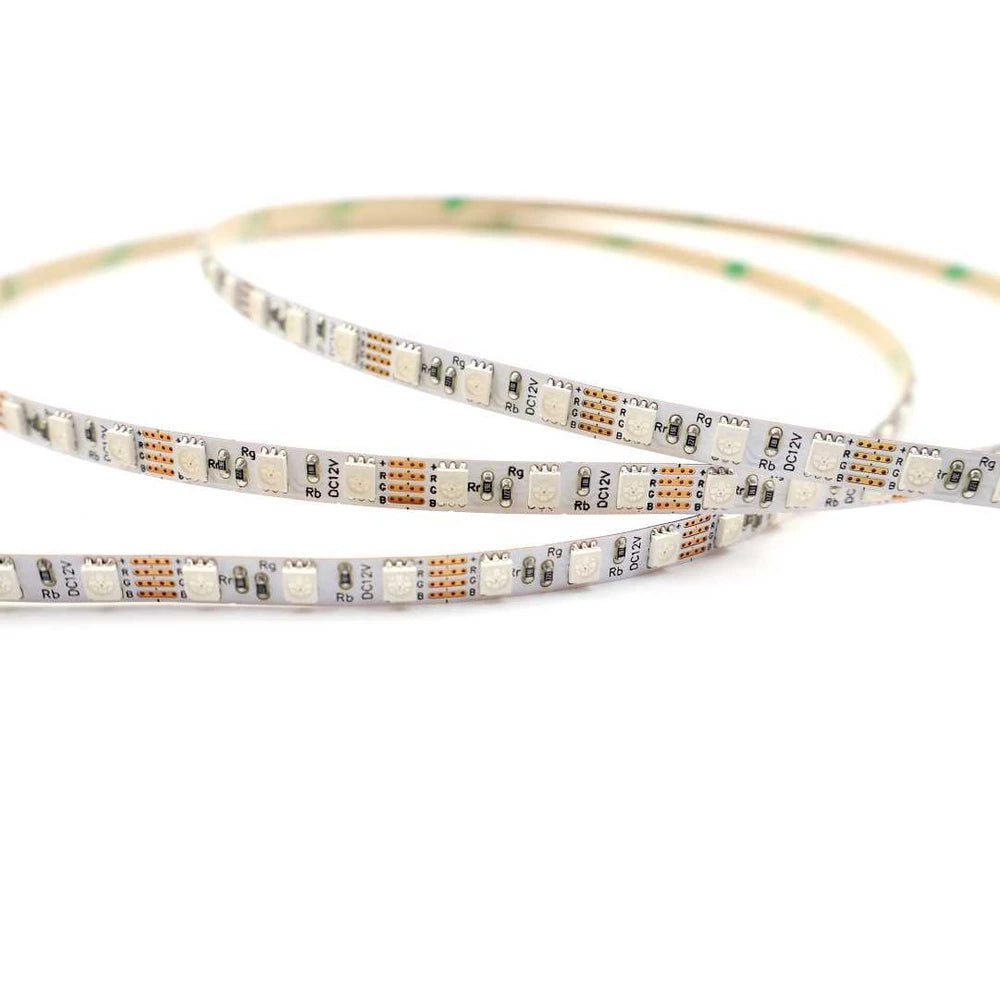

These 12V RGB LED strip lights use a slim 5mm 2835 profile at 120 LEDs/m for color-changing accent light in the tightest channels. At just 5mm wide, this RGB LED tape light tucks into narrow aluminum profiles, cove edges, and cabinet reveals where a standard 10mm strip won't fit. Running on 12V as a flexible rgb led strip 12v, it's offered in IP20 or IP67 waterproof construction on a 5m reel.
Why Choose This 12V RGB LED Strip?
- Ultra-slim 5mm width: Fits narrow channels, edges, and reveals that wider strips can't - a true low-profile rgb led tape light.
- Color-changing RGB: Full-spectrum color and dynamic scenes via any compatible 12V RGB controller.
- 12V flexible design: Easy DIY wiring for home, retail, and accent projects (led strip 12v rgb).
- 120 LEDs/m: Dense, even color with minimal dotting.
- IP20 or IP67: Choose IP67 for a waterproof rgb led strip in kitchens, baths, and outdoors.
- Cut-to-fit: Ships on a 5m reel; trim at marked cut points.
Technical Specifications
| Catalog Model | 2835-120-5mm-12V-RGB |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB Width | 5mm (slim) |
| Input Voltage | DC12V |
| Color | RGB Color Changing |
| Control | Compatible 12V RGB controller (sold separately) |
| Power | Up to 7W/m |
| LED Pitch | 8.3mm |
| Cutting Interval | 25mm / 0.98in, 3 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points (25mm / 0.98in, 3 LEDs per cut). Connect to a compatible 12V RGB controller and constant-voltage 12V power supply, matching the R/G/B markings. Because this is a 12V strip, keep individual runs short to avoid voltage drop, or inject power at both ends of longer runs. Mount on a clean surface or into a 5-6mm aluminum channel.

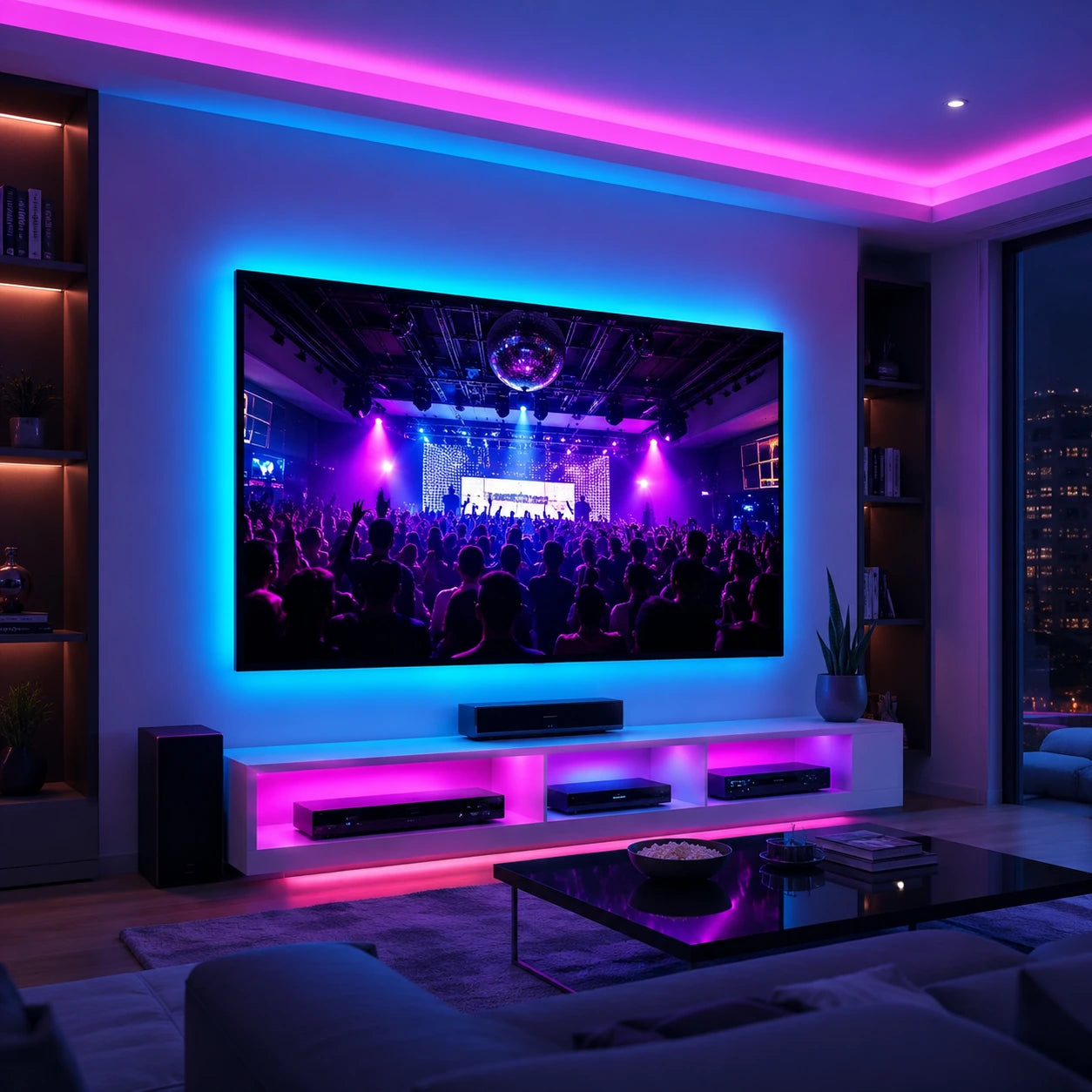

Recommended Applications
- Under-cabinet, cove, and toe-kick accent lighting in tight channels
- Gaming setups, shelving, and display cases needing slim color accents
- Signage, model-making, and detail work where a narrow tape light is essential
Purchase Options and Customization
Standard length is a 5m reel (16.4ft). We can quote RGB controller, voltage, cable, connector, IP20/IP67 construction, and packaging for project volumes.
Compliance
Manufactured to CE, RoHS, UKCA, and additional international compliance standards. Contact us for the full certification package (including UL where applicable to your SKU) or project-specific support.
