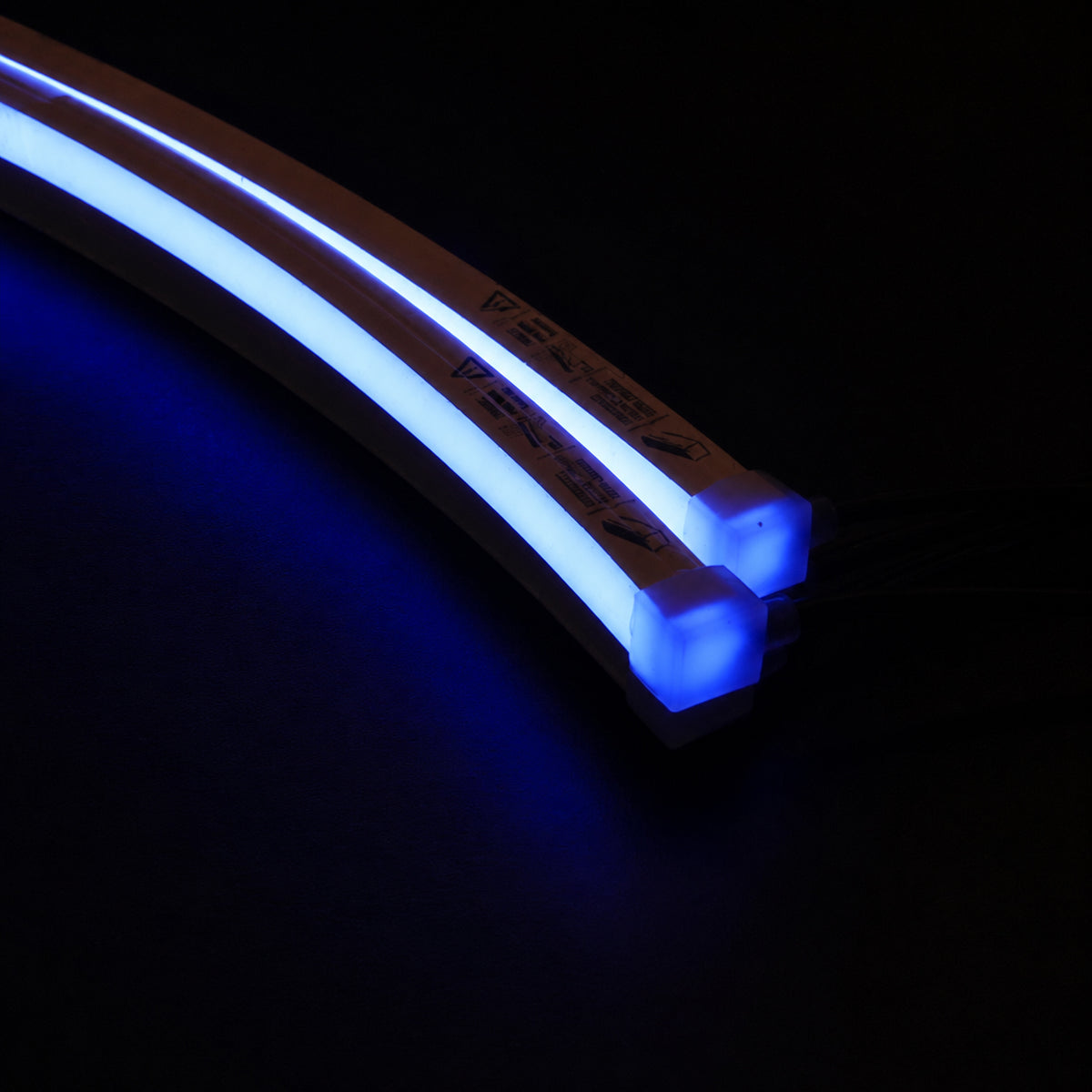

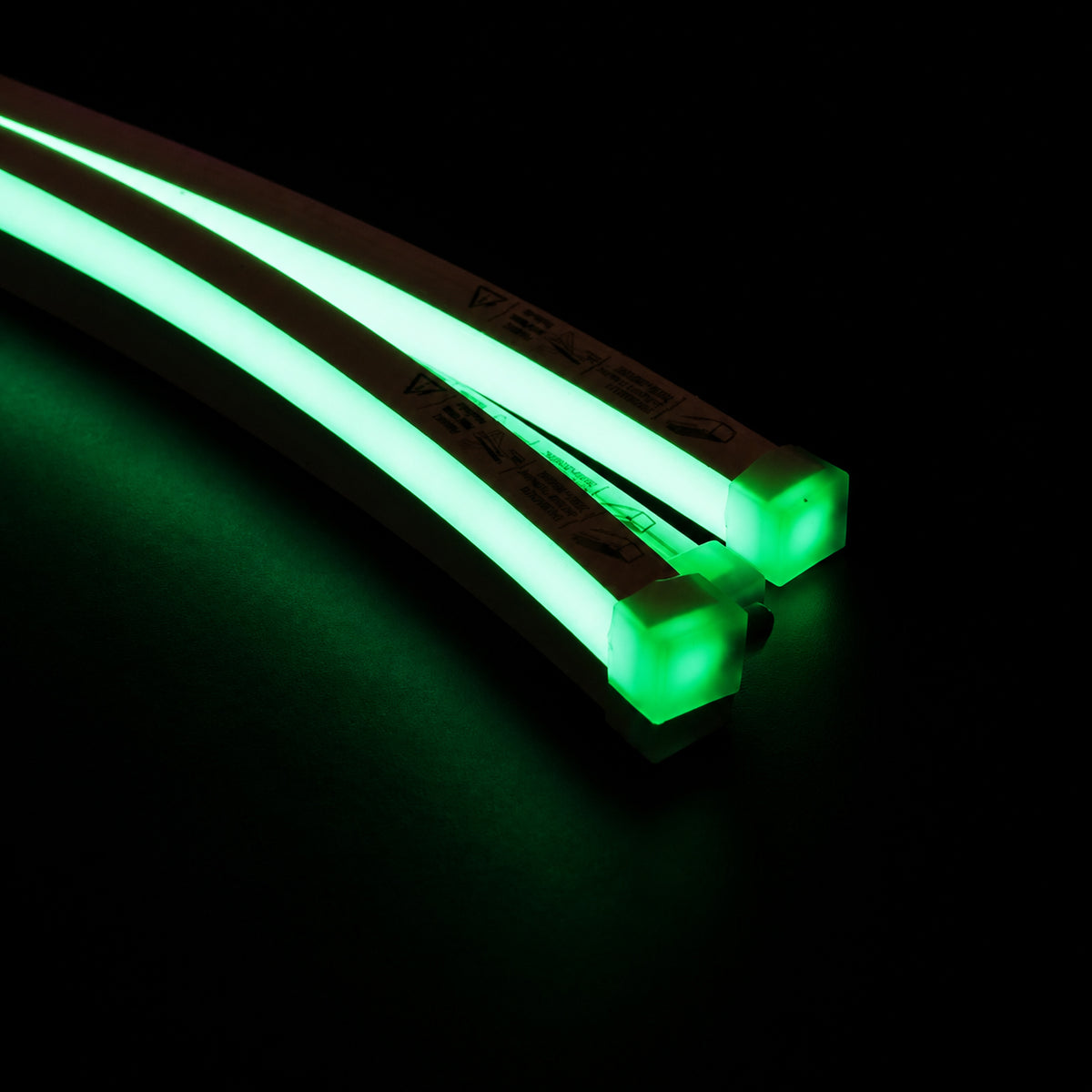

The NE1615T-CV24-RGB is a 16 × 15 mm IP68 RGB silicone neon flex for smooth color-changing linear illumination. It uses a 24V constant-voltage architecture, 120 LEDs/m, and a vertical-bend silicone profile for bars, entertainment spaces, architectural accents, signage, and outdoor decorative lighting.
Why Choose This Neon Flex?
- Full RGB color mixing: Create red, green, blue, blended colors, fades, and dynamic effects with a compatible RGB controller.
- 24V RGB operation: Rated at 3.3 W/m per color channel and 10 W/m with RGB combined.
- IP68 construction: Silicone housing is designed for UV, saltwater, and demanding environmental exposure when correctly terminated.
- 120 LEDs/m: High LED density supports a smooth neon-style luminous surface.
- Vertical-bend profile: 16 × 15 mm body with a 200 mm minimum bending diameter.
- 62.5 mm cut interval: Allows project-specific sizing while maintaining circuit integrity.
Technical Specifications
| Catalog Model | NE1615T-CV24-RGB |
|---|---|
| Input Voltage | 24V DC |
| Power | 3.3 W/m per R/G/B channel; 10 W/m RGB combined |
| Product Series | NE1615 Silicone Neon Lights |
| Material | 100% food-grade silicone |
| Cross Section | 16 × 15 mm (0.63 × 0.59 in) |
| LED Density | 120 LEDs/m |
| Light Emission | 120° |
| IP Rating | IP68 with appropriately rated accessories |
| Bending Direction | Vertical bending |
| Minimum Bending Diameter | 200 mm |
| Warranty | 3 years |
| Power Feed | One-end / two-end feed |
| Cable Entry | Front |
| Humidity | 0–95% non-condensing |
| Maximum Run from One-End Feed | 5 m |
| Cut Interval | 62.5 mm |
Photometric Data
| Red | 170 lm/m · 17 lm/W |
|---|---|
| Green | 610 lm/m · 61 lm/W |
| Blue | 120 lm/m · 12 lm/W |
| RGB combined | 300 lm/m · 30 lm/W |
Cutting and Installation
Cut only at the designated 62.5 mm cut marks. Use a compatible 24V RGB controller and power supply. Maintain vertical bending and use appropriately rated waterproof end caps/connectors for IP68 installations.
Recommended Applications
- Bars, clubs, gaming rooms and entertainment venues
- Architectural facade and contour lighting
- Color-changing retail and hospitality features
- Outdoor decorative lighting and RGB signage
Accessories
Compatible accessories shown for this series include aluminum channel, mounting clips, stainless-steel flexible mounting channel, IP68 end caps, waterproof cable, and IP68 waterproof connectors. Accessories may be selected separately to match the installation.
