16x15mm IP68 Pixel RGB Neon Flex – 24V, UCS1903, 8 Pixels/m
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

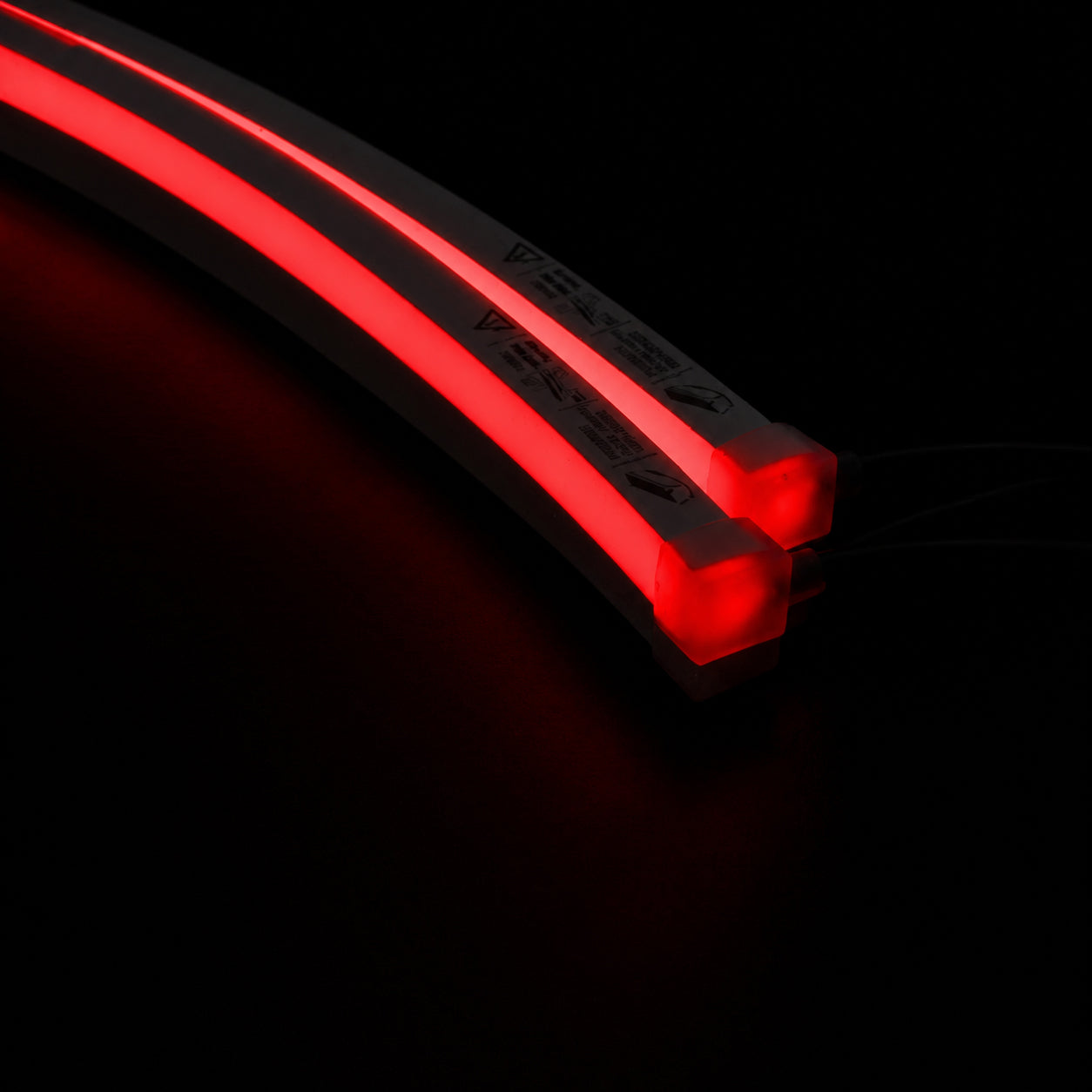

The NE1615-Pixel RGB is a 16 × 15 mm IP68 addressable silicone neon flex built around the UCS1903 IC. With 8 controllable pixels per meter, 24V operation, and a 125 mm cut interval, it is designed for animated color effects, chasing patterns, synchronized architectural features, and programmable commercial lighting.
Why Choose This Neon Flex?
- Addressable Pixel RGB: Control sequential color effects and animated patterns instead of changing the entire run as one color.
- UCS1903 IC: Integrated digital control for programmable RGB lighting systems.
- 8 pixels/m: Pixel spacing supports dynamic effects while retaining a continuous silicone neon appearance.
- 24V operation: Up to 11.5 W/m with RGB combined; individual R/G/B channel data is provided in the technical table.
- IP68 silicone profile: Designed for robust indoor or outdoor project use with appropriately rated terminations.
- 125 mm cut interval: Cut points align with the addressable pixel sections.
Technical Specifications
| Catalog Model | NE1615-Pixel RGB |
|---|---|
| Input Voltage | 24V DC |
| IC Type | UCS1903 |
| Pixel Density | 8 pixels/m |
| Power | 4.8 W/m per R/G/B channel; 11.5 W/m RGB combined |
| Product Series | NE1615 Silicone Neon Lights |
| Material | 100% food-grade silicone |
| Cross Section | 16 × 15 mm (0.63 × 0.59 in) |
| LED Density | 120 LEDs/m |
| Light Emission | 120° |
| IP Rating | IP68 with appropriately rated accessories |
| Bending Direction | Vertical bending |
| Minimum Bending Diameter | 200 mm |
| Warranty | 3 years |
| Power Feed | One-end / two-end feed |
| Cable Entry | Front |
| Humidity | 0–95% non-condensing |
| Maximum Run from One-End Feed | 5 m |
| Cut Interval | 125 mm |
Photometric Data
| Red | 172.5 lm/m · 15 lm/W |
|---|---|
| Green | 437 lm/m · 38 lm/W |
| Blue | 78.2 lm/m · 6.8 lm/W |
| RGB combined | 287.5 lm/m · 25 lm/W |
Cutting and Installation
Cut only at the designated 125 mm cut marks. Use a controller compatible with the UCS1903 pixel protocol together with a suitable 24V power supply. Observe signal direction and wiring order, keep bends vertical, and use IP68-rated accessories when waterproofing is required.
Recommended Applications
- Dynamic facade and architectural lighting
- Bars, clubs, stages and entertainment installations
- Chasing-light signage and programmable feature walls
- Interactive displays and synchronized RGB projects
Accessories
Compatible accessories shown for this series include aluminum channel, mounting clips, stainless-steel flexible mounting channel, IP68 end caps, waterproof cable, and IP68 waterproof connectors. Accessories may be selected separately to match the installation.
