480x240mm SMD 5050 Diamond Backlight RGBW LED Strip Light, 288 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

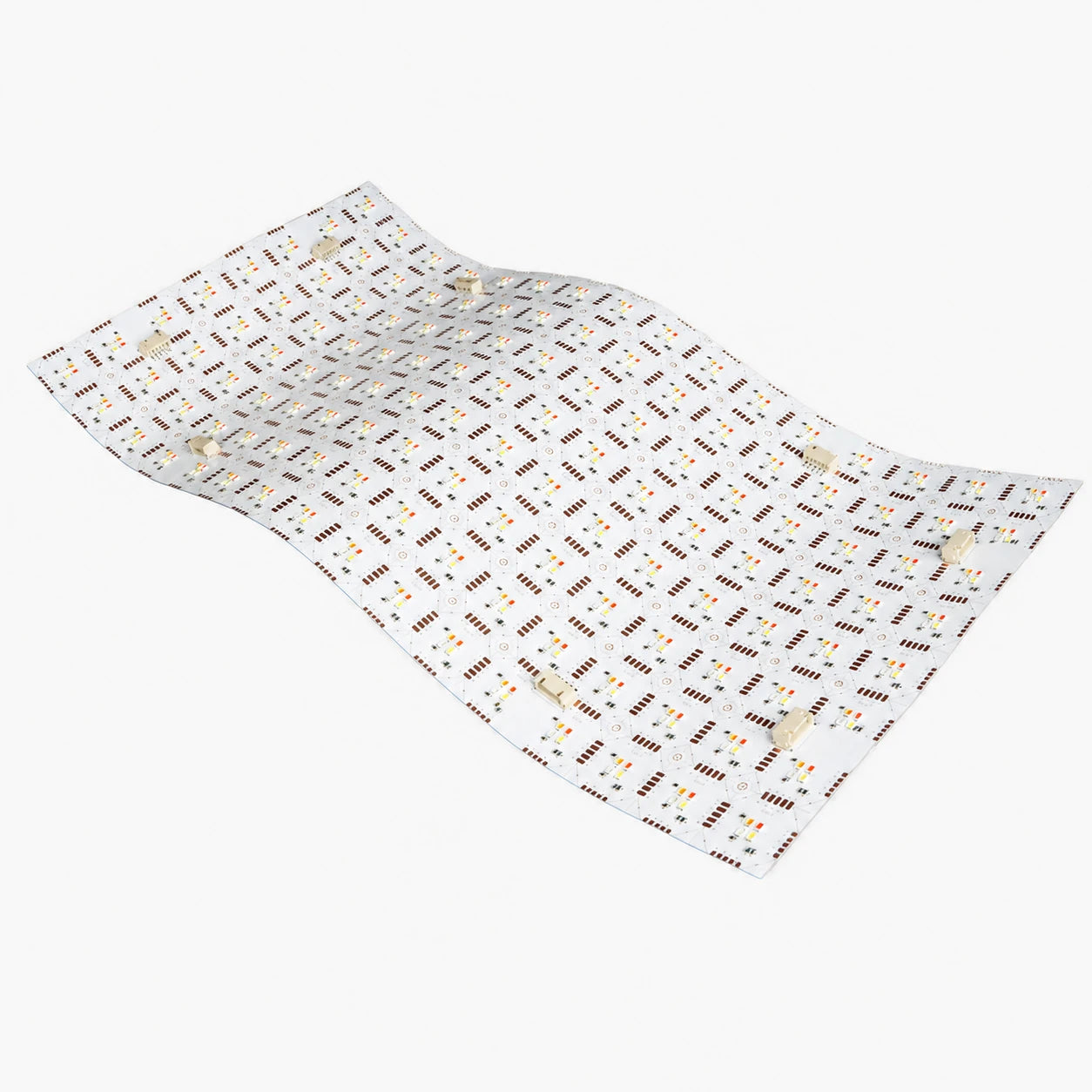

This 5050 RGBW LED strip ships as a 480x240mm diamond-backlight panel on 24V with 288 LEDs/m. Unlike plain RGB, this 24V RGBW LED strip lights panel adds a dedicated white LED alongside red, green, and blue - so you get clean, usable white light and saturated color from one module. It's the RGBW diamond-backlight variant in our led strip rgbw range, available in IP20 or IP67 on a 5m reel.
Why Choose This 5050 RGBW LED Strip?
- RGB + true white: A separate white channel delivers crisp task/ambient white that plain RGB "white" can't match.
- Diamond-backlight grid: Even 480x240mm illumination behind stone, resin, and translucent surfaces - no hot spots.
- 24V performance: Longer runs and lower current for wide backlit areas.
- IP20 or IP67: Pick the IP67 build as a waterproof rgbw led strip for damp locations.
- High density: 288 LEDs/m for bright, continuous coverage.
- 5m reel: Cut at marked points to fit the panel layout.
Technical Specifications
| Catalog Model | 5050-288-480x240mm-24V-RGBW |
|---|---|
| LED Type | SMD 5050 (RGBW 4-in-1) |
| LED Density | 288 LEDs/m |
| Format | 480x240mm Diamond Backlight Panel |
| Input Voltage | DC24V |
| Color | RGBW (RGB + White) |
| Control | Compatible RGBW controller (sold separately) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Connect to a compatible RGBW controller and a 24V constant-voltage power supply, observing the R/G/B/W channel markings. Mount to a clean backing or behind translucent stone, glass, or resin. Size the power supply with at least 20% reserve.
Recommended Applications

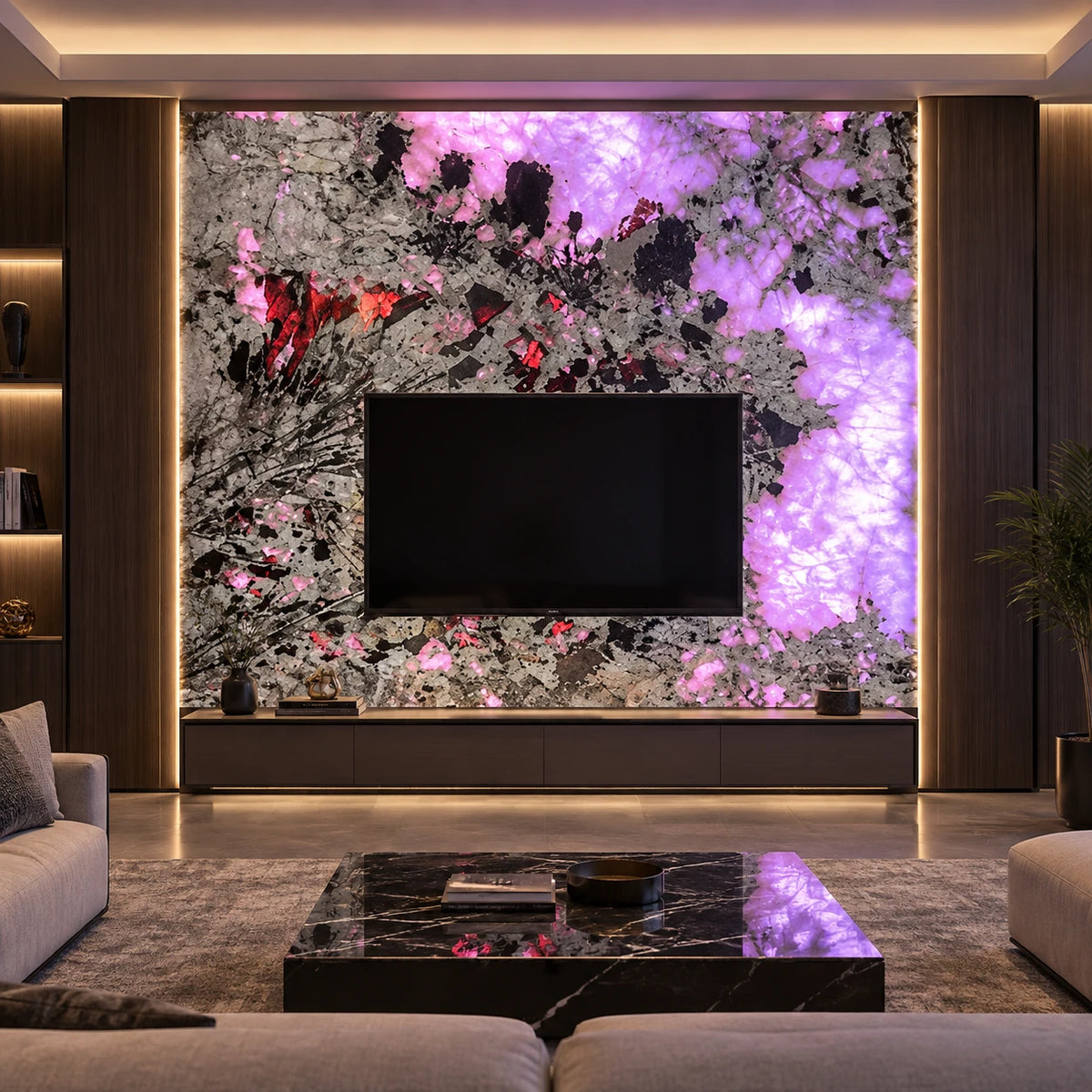

- Backlit stone and onyx walls where both color and white light are needed
- Retail displays, bars, and reception desks needing switchable ambience
- Architectural accent and signage that mixes color scenes with clean white
Purchase Options and Customization
Standard length is a 5m reel (16.4ft). We can quote RGBW controller, voltage, cable, connector, IP20/IP67 construction, and packaging for project volumes.
Compliance
Manufactured to CE, RoHS, UKCA, and additional international compliance standards. Contact us for the full certification package (including UL where applicable to your SKU) or project-specific support.
