15mm 24V WS2805 Addressable RGB+CCT COB LED Strip Lights, 840 LEDs/m
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

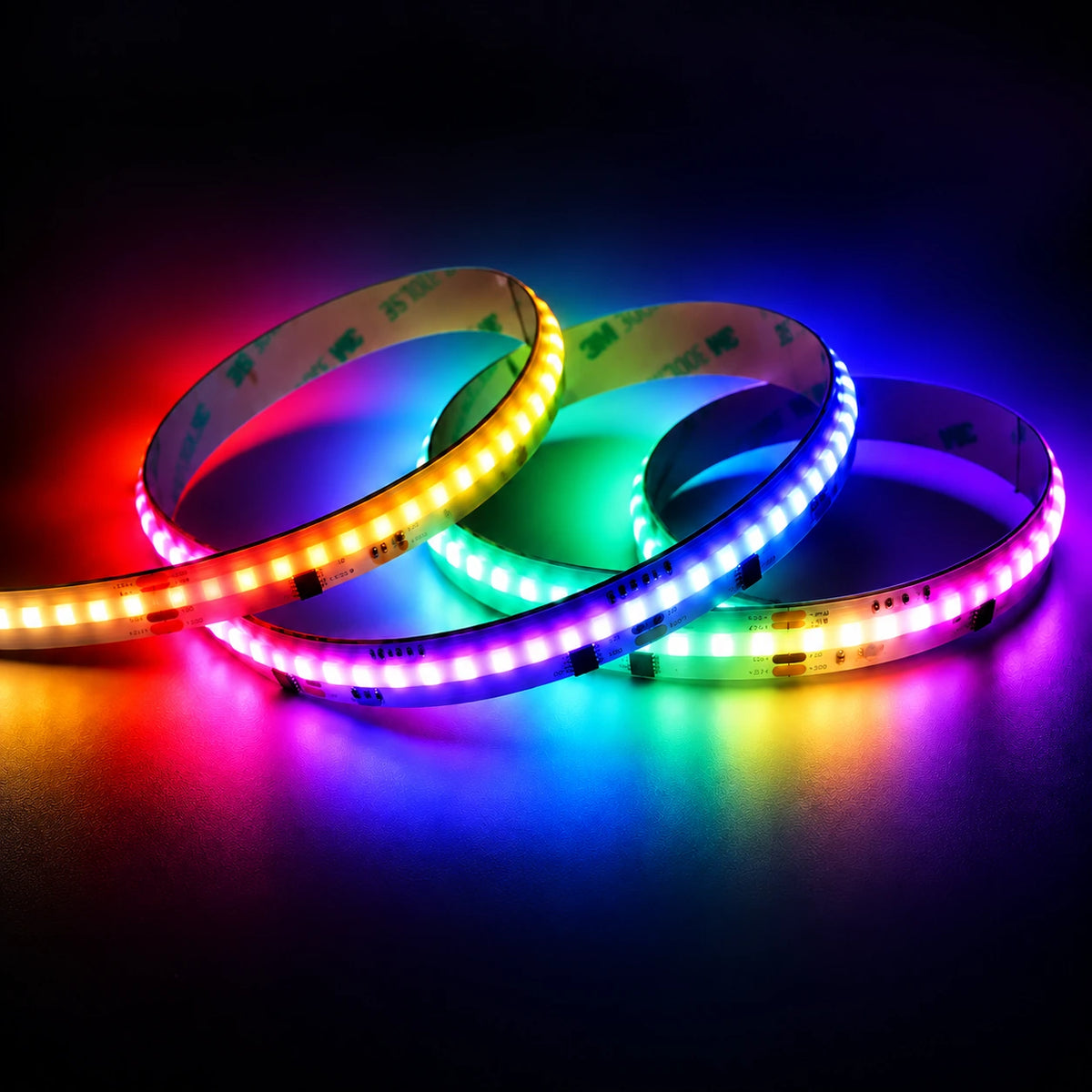

This 15mm 24V WS2805 addressable RGB+CCT COB LED strip combines dynamic RGB color effects with adjustable white light from warm white to cool white. With 840 LEDs/m, a high-density COB design, and WS2805 programmable control, it is designed for decorative, entertainment, stage, and ambient lighting projects that need both colorful effects and usable white light.
Why Choose This RGB+CCT Addressable COB LED Strip?

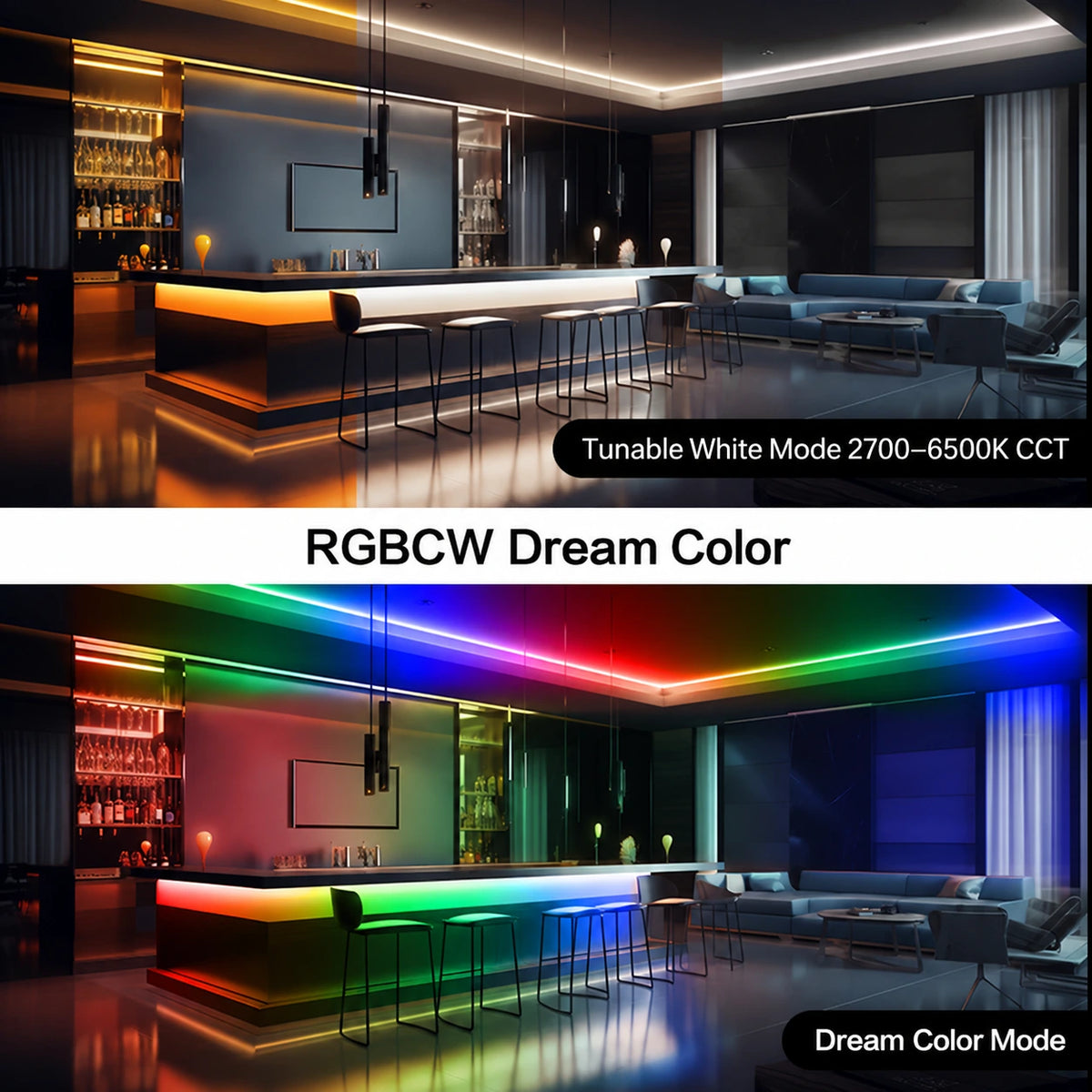

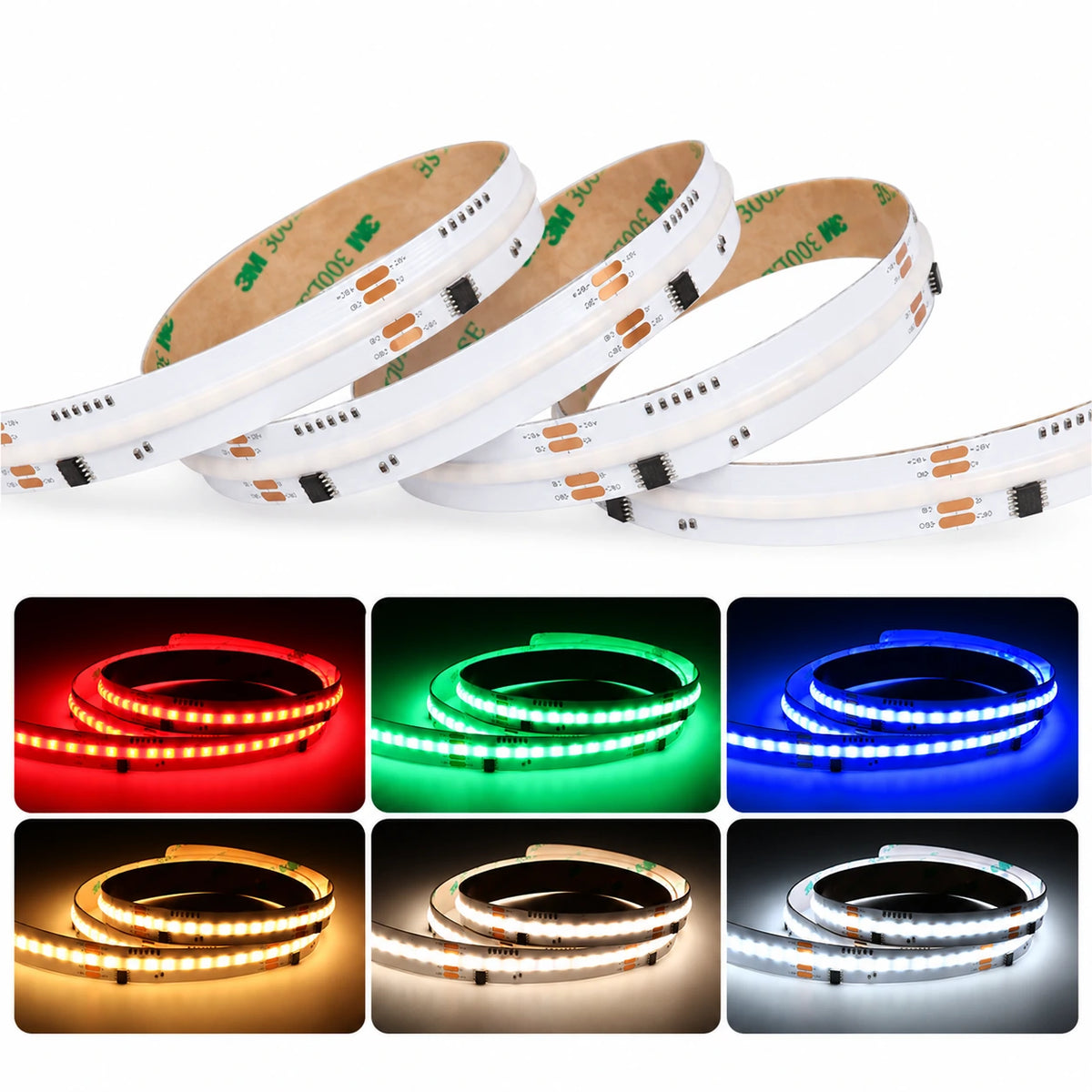

- RGB + dual white: Combines RGB color with 2700K warm white and 6500K cool white for colorful effects and tunable white lighting.
- WS2805 programmable control: Supports addressable chasing, flowing, and dynamic lighting effects with a compatible controller.
- 840 LEDs/m: High-density COB construction creates a smooth, continuous-looking light line.
- 24V operation: Designed for 24V constant-voltage lighting systems.
- 71mm cutting interval: Cut at the marked points for project-specific installation lengths.
- CRI 90 white light: High color rendering for the white-light channels.
Technical Specifications
| Catalog Model | WS2805-840-15MM-24V-RGBCCT-COB |
|---|---|
| LED Type | COB |
| IC Type | WS2805 |
| Color | Addressable RGB+CCT |
| White CCT | 2700K + 6500K |
| Input Voltage | DC24V |
| Power | 26W/m |
| LED Density | 840 LEDs/m |
| PCB Width | 15mm |
| Cutting Interval | 71mm / 2.80in |
| Beam Angle | 180° |
| Dimmable | Yes |
| CRI | 90 |
| Power Factor | 0.9 |
| Control | Programmable / Addressable |
| Standard Length | 5m Reel / 16.4ft |
| Rated Life | 50,000 Hours |
Cutting and Installation

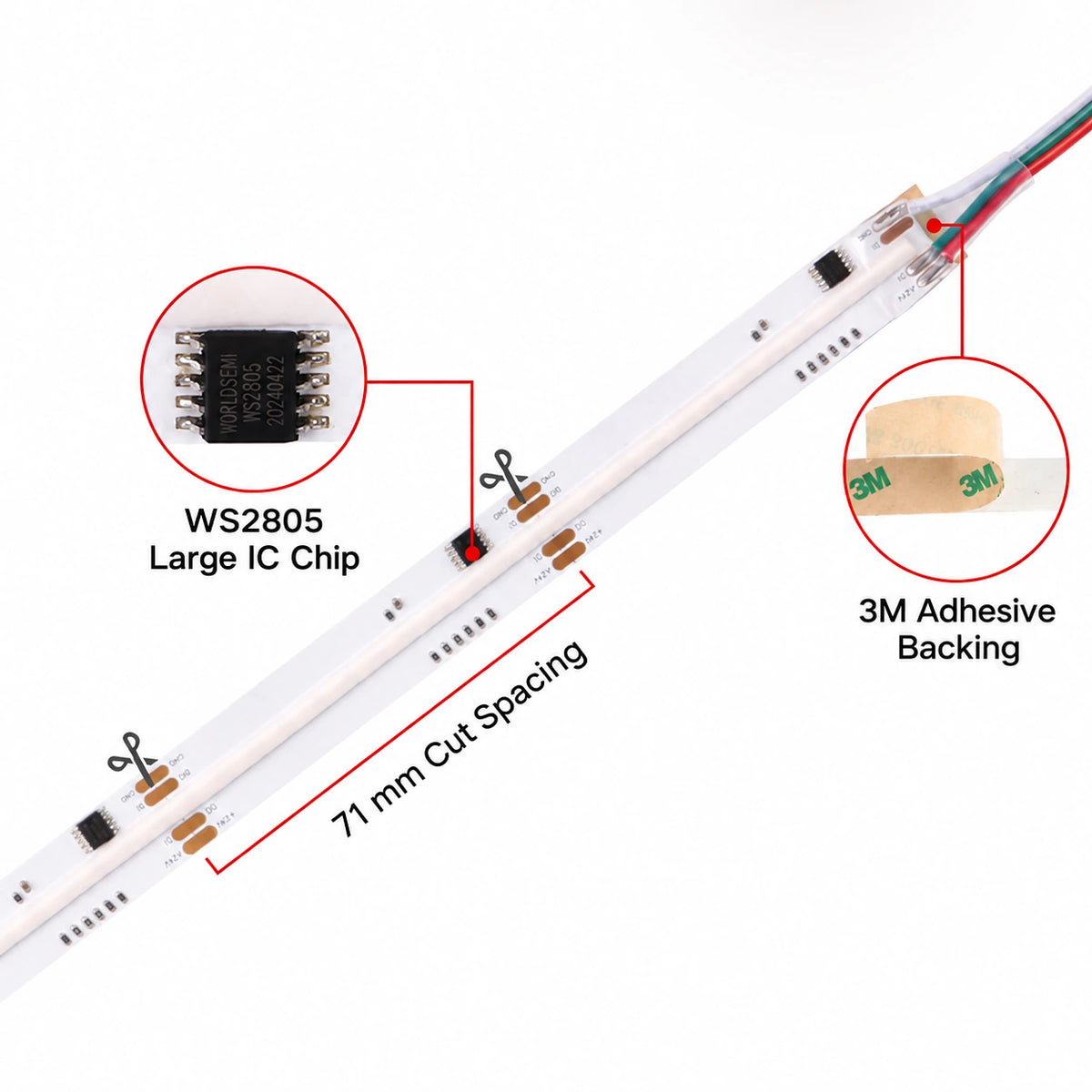

Cut the strip only at the marked 71mm / 2.80in cutting points. Use a compatible WS2805 addressable controller and a regulated 24V DC power supply. Size the power supply and wiring appropriately for the installation length and total load.
Recommended Applications
- Home ambient and decorative lighting
- Bars, KTV rooms, and entertainment spaces
- Stage and event atmosphere lighting
- Holiday and themed decorative installations
- Commercial displays and programmable lighting projects
Purchase Information
Standard length is 5m Reel / 16.4ft. A compatible WS2805 controller and regulated 24V DC power supply are required for operation.
