5mm SMD 2835 2-in-1 Tunable White LED Strip Light, 168 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

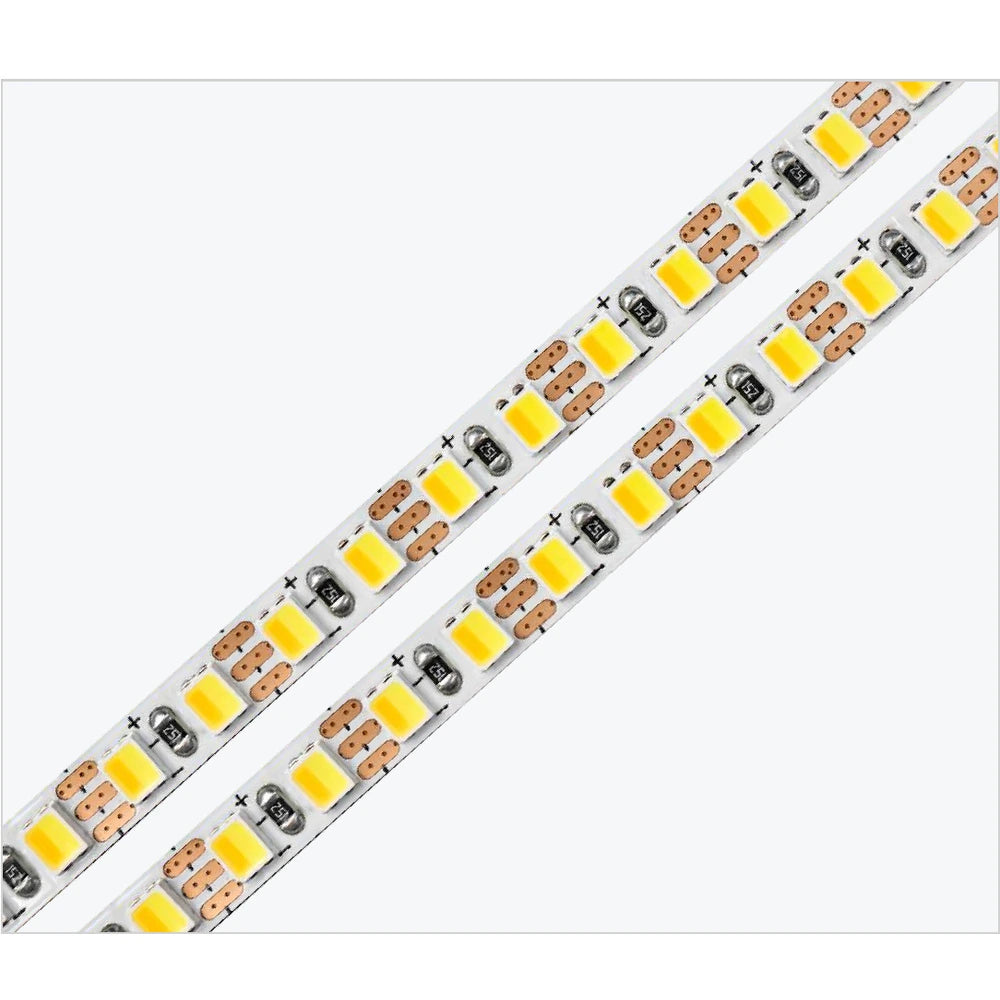

At 5mm wide, this ultra-thin 2-in-1 tunable white LED strip light runs 168 LEDs/m of 2835 chips — a slim, even option for reveals, shelves, and under-cabinet lines. Running on 24V constant voltage, it dims from warm to cool white with a compatible CCT controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Warm-to-cool tunable white: Two white channels on one strip adjust from 2700K to 6500K with a CCT controller — warm ambient, neutral, or cool task light on demand.
- Ultra-thin 5mm profile: A slim 5mm board fits narrow channels, reveals, and slim under-cabinet edges where wider strips won't sit.
- High-density 168 LEDs/m: Tightly spaced 168 LEDs/m minimize hot spots for an even, dot-free line of light, even close to a diffuser.
- 24V operation: Constant-voltage 24V input works with standard 24V drivers, dimmers, and low-voltage lighting systems.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-168-5mm-24V-CCT |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 5mm |
| Wire Configuration | 3-Wire |
| Input Voltage | DC24V |
| Power | 10W/m |
| Luminous Output | 1097lm/m |
| Color Rendering | 95 |
| Color / CCT | 2700K-6500K Tunable White |
| LED Spacing | 5.9 mm (0.23 in) |
| Cutting Interval | 11.9 mm (0.47 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

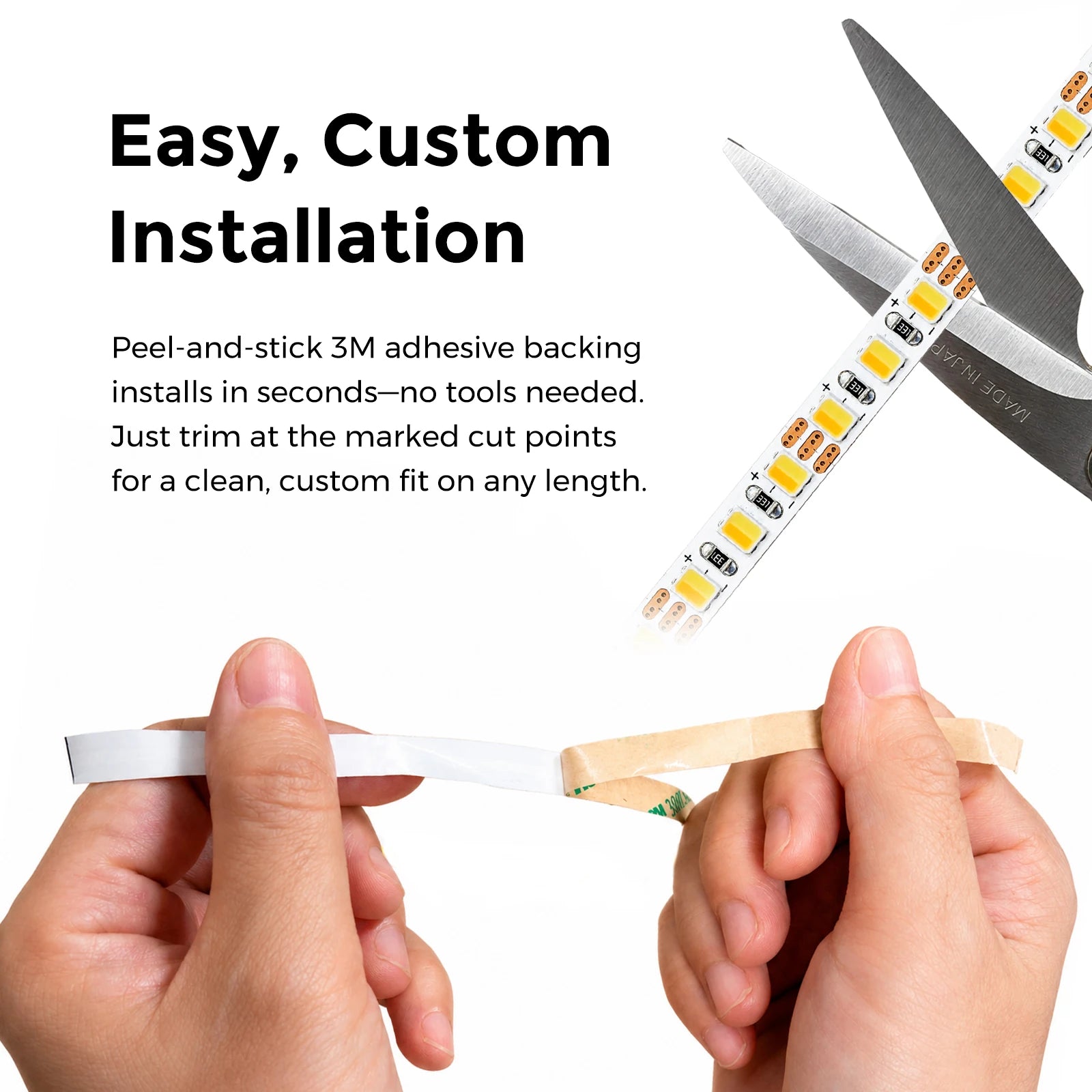

Cutting and Installation
Cut only at the marked cut points. Observe polarity, use the specified constant-voltage power supply, and test the strip before final mounting. For longer runs, add feed points where voltage drop becomes visible. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

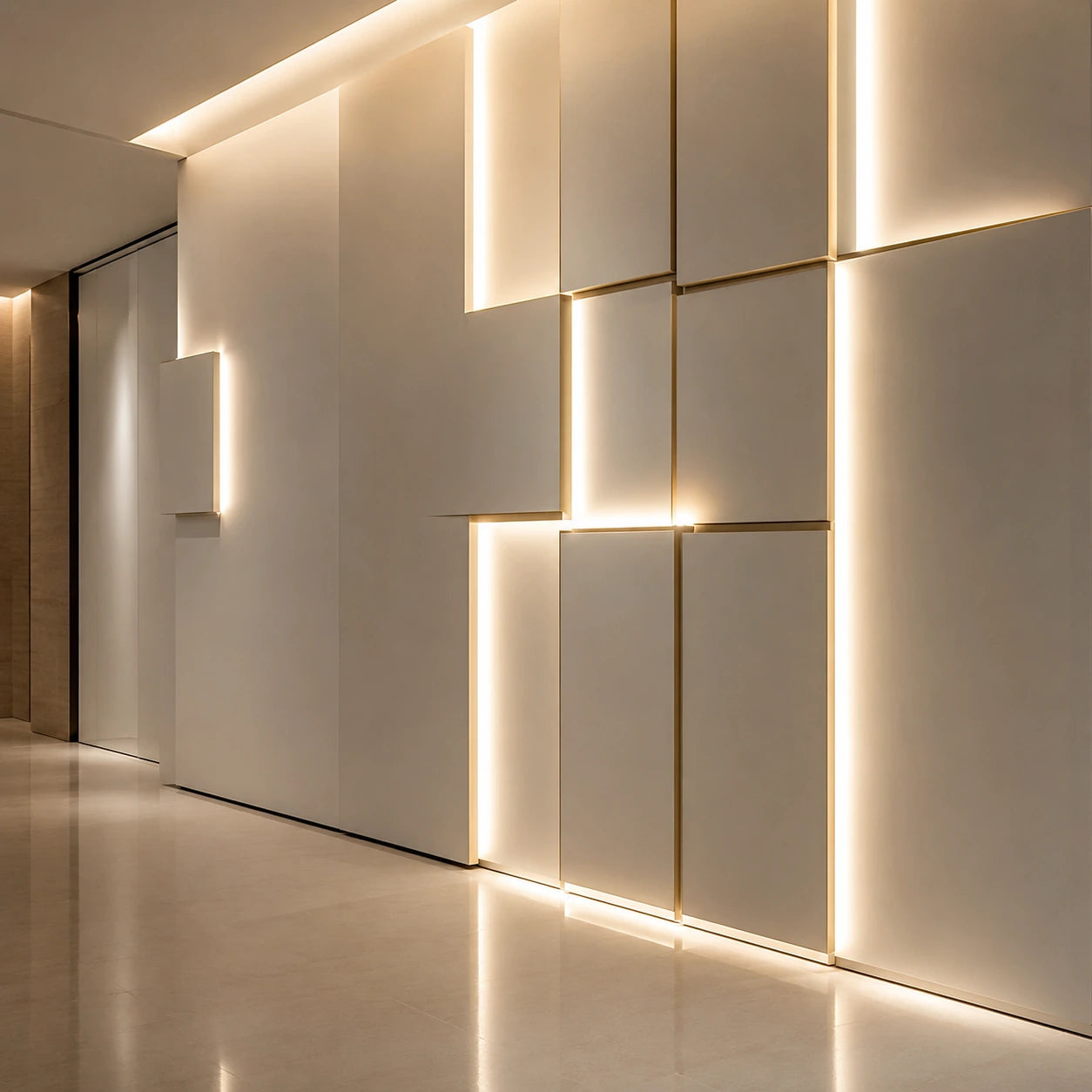

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and led strips for cabinet lighting
- Mirror with led strip
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote emitting direction, CCT or dual-white option, cut length, lead and connector arrangement, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
