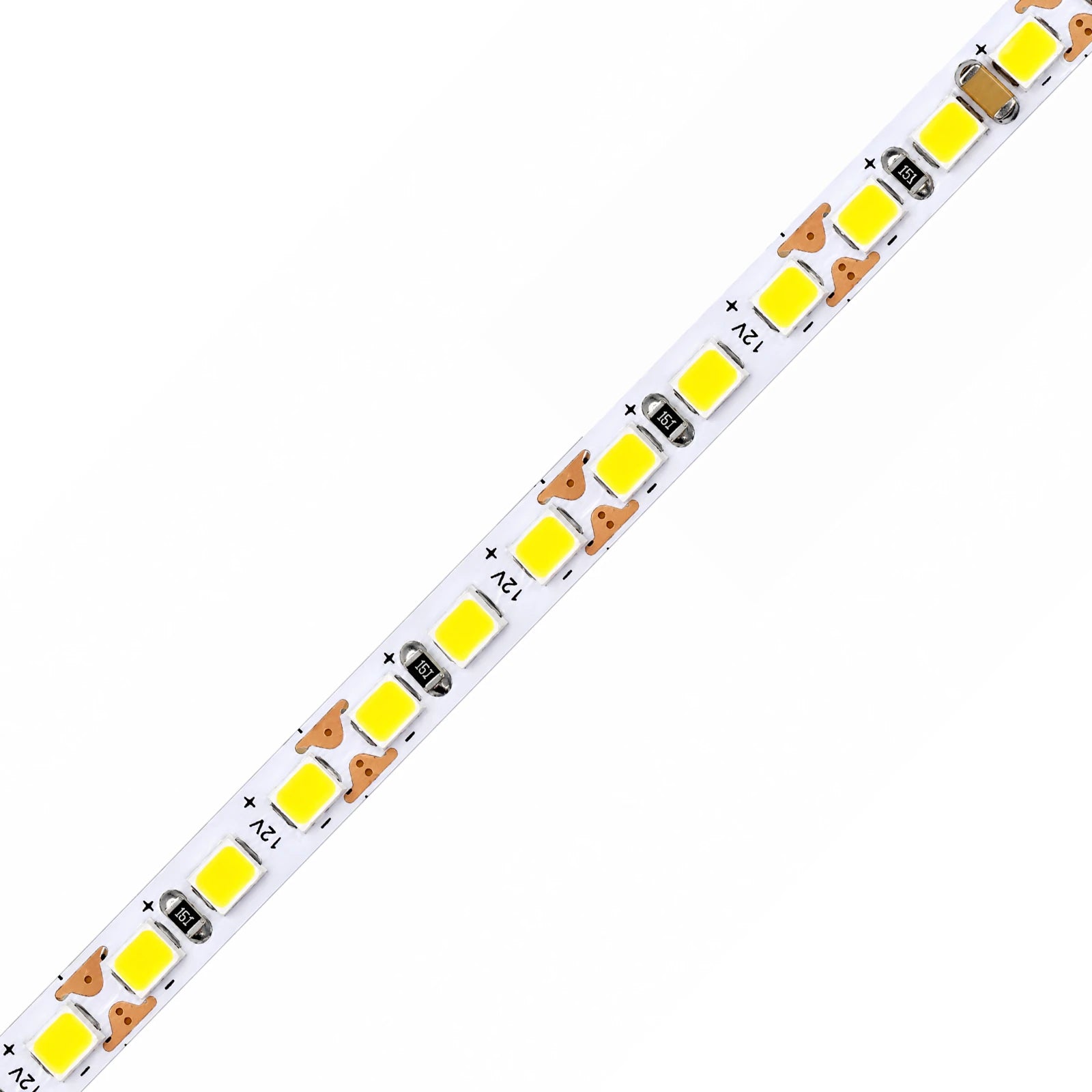

5mm SMD 2835 3-LED Cuttable White LED Strip Light for Light Guide Panels, 168 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 5mm 2835 white LED strip carries a dense 168 LEDs per meter on 12V and cuts every 3 LEDs, so you can size it precisely to any acrylic light guide panel edge — the flexible, cuttable building block for custom illuminated signage.
Why Choose This LED Strip?
- Cuttable every 3 LEDs: trim to the exact panel-edge length you need.
- Light guide optimized: injects even light into acrylic LGP edges.
- Dense 168 LEDs/m: bright, streak-free panel glow.
- 12V circuit: straightforward wiring for custom signage.
Technical Specifications
| Catalog Model | 2835-168-5mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | Up to 10W/m |
| Luminous Output | 1190lm/m |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 4000K, 5000K, 6500K |
| LED Pitch | 5.9mm |
| Cutting Interval | 17.8mm / 0.70in, 3 LEDs per cut |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

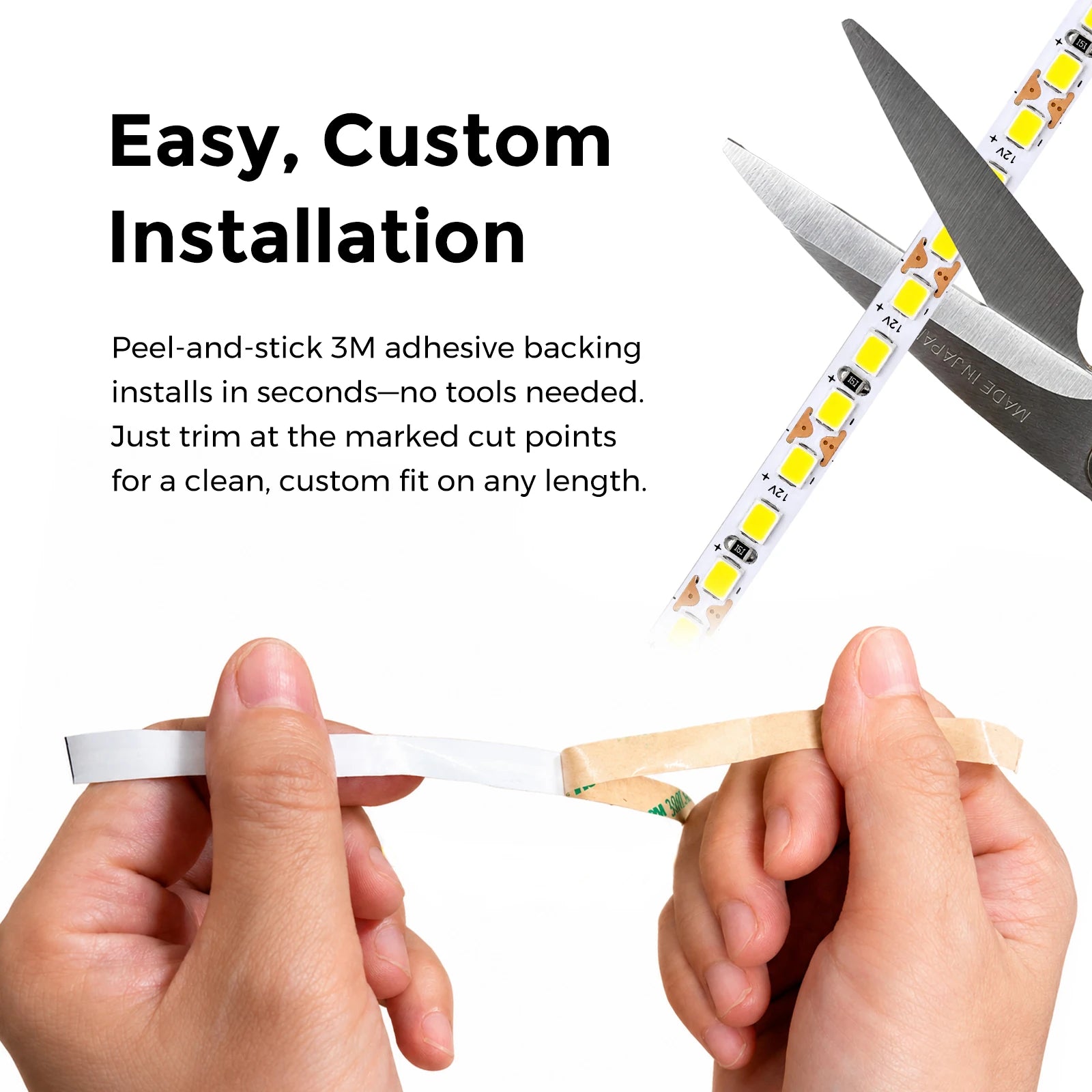

Cutting & Installation
Handle as an edge-light source: seat the strip along the acrylic light guide panel edge so light couples evenly into the panel. Cut only at the marked points (17.8mm / 0.70in, 3 LEDs per cut), observe polarity, and use a matched constant-voltage supply with at least 20% reserve. Keep the emitting edge clean and flush against the panel for a streak-free glow.

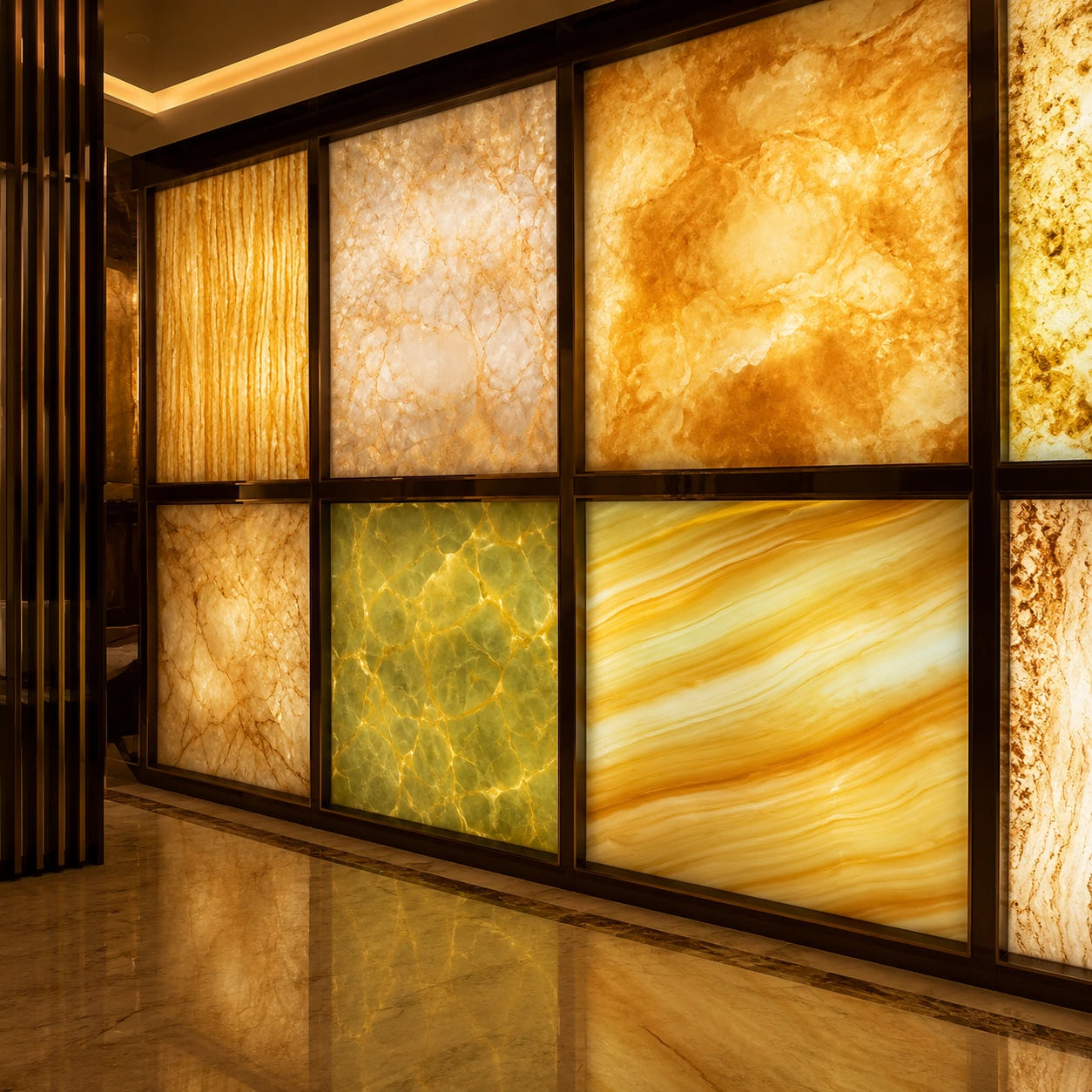

Recommended Applications
- Custom-sized edge-lit acrylic panels
- Made-to-fit illuminated signage
- Backlit displays needing precise strip lengths
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
