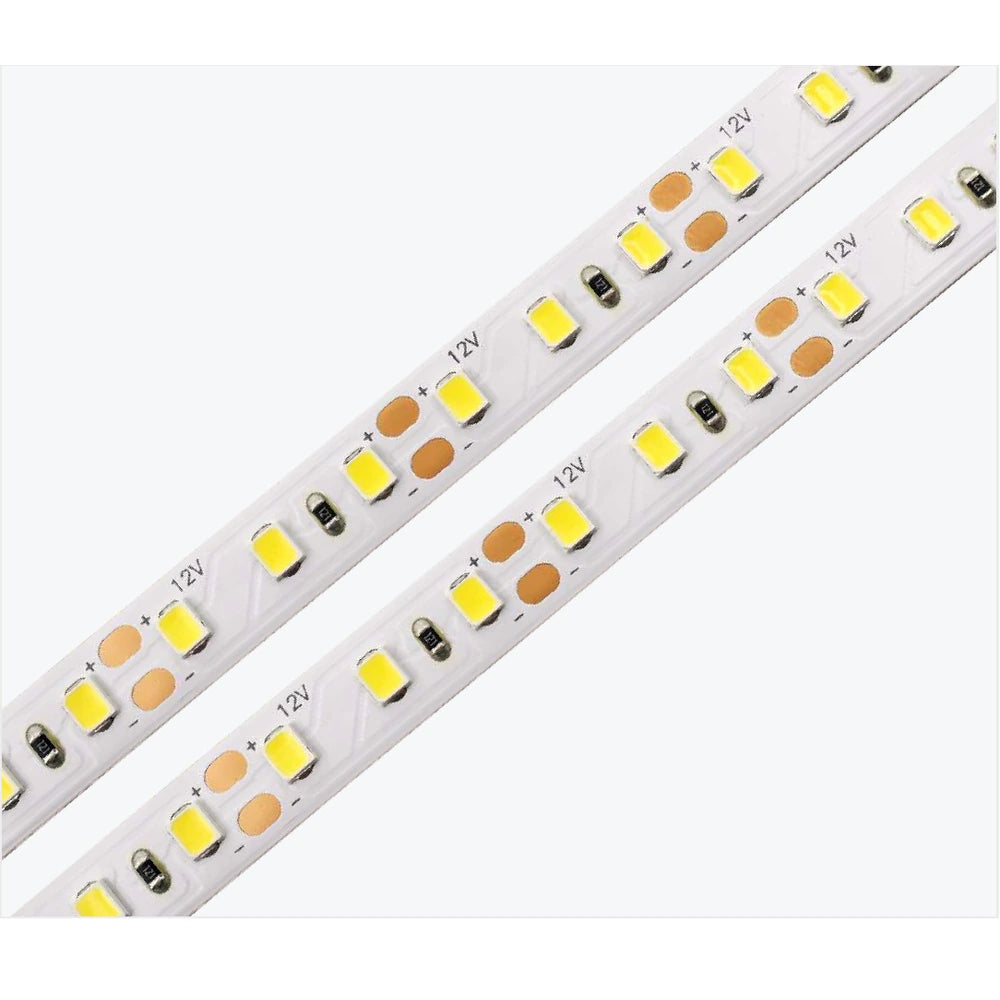

12V White LED Strip Lights – 8mm, 120 LEDs/m, 12V, SMD 2835
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
The 2835-120-8mm-12V-WHITE is a standard 12V constant-voltage white LED strip — compatible with the widest range of low-voltage drivers, dimmers, and 12V DC power systems already installed in residential and commercial projects. With 120 LEDs/m SMD 2835 LEDs on a 8mm PCB and 12V constant-voltage input, it is well-suited to cabinet, display, furniture, and architectural accent lighting, available in 2200K, 2700K, 3000K, 3500K, 4000K, 5000K.
Why Choose These LED Strip Lights?
- 12V universal compatibility: 12V DC constant-voltage input works with virtually any LED driver, transformer, or dimmer on the market.
- 8mm PCB width: The 8mm board fits standard aluminum channels and surface-mount extrusion profiles.
- 120 LEDs/m LED density: 120 LEDs/m delivers smooth, even white-light coverage for general and accent lighting.
- SMD 2835 chip technology: SMD 2835 LEDs provide consistent colour output and long operating life at 12V.
- White-light CCT selection: Available from warm 2200K to cool daylight 6500K — choose the CCT for the application.
- IP20 or IP67 options: Open PCB for dry interiors; encapsulated option for damp and humid environments.
- Certified & compliant: UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks for professional projects.
- Custom project supply: Custom CCT, length, connector, adhesive, and packaging for project quantities.
Technical Specifications
| Catalog Model | 2835-120-8mm-12V-WHITE |
|---|---|
| LED Type | SMD 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC12V |
| Power | 8 W/m |
| Luminous Output | 905 lm/m |
| Color Rendering | 97 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K |

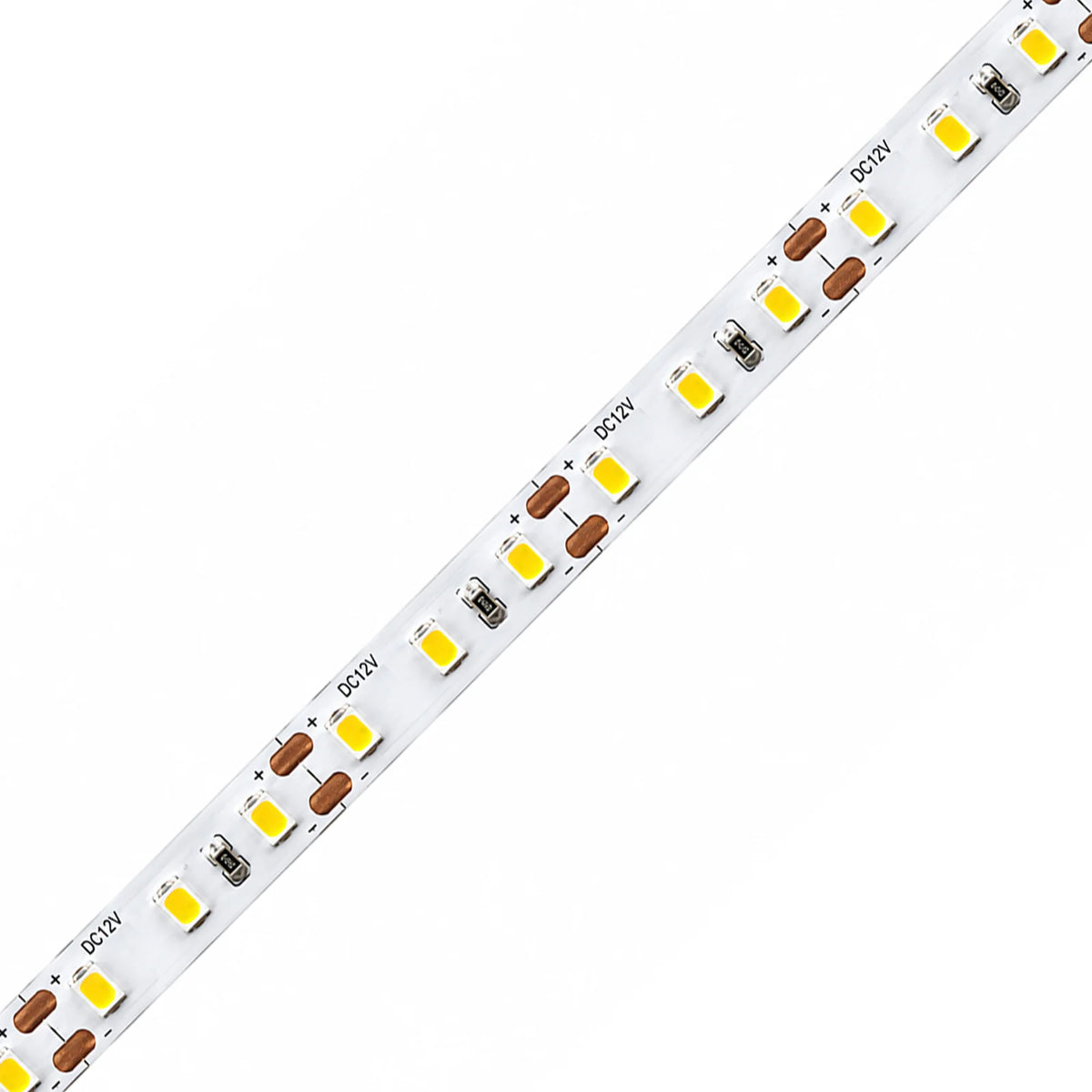

| LED Spacing | 8.3 mm (0.33 in) |
| Cutting Interval | 25 mm (0.98 in) |

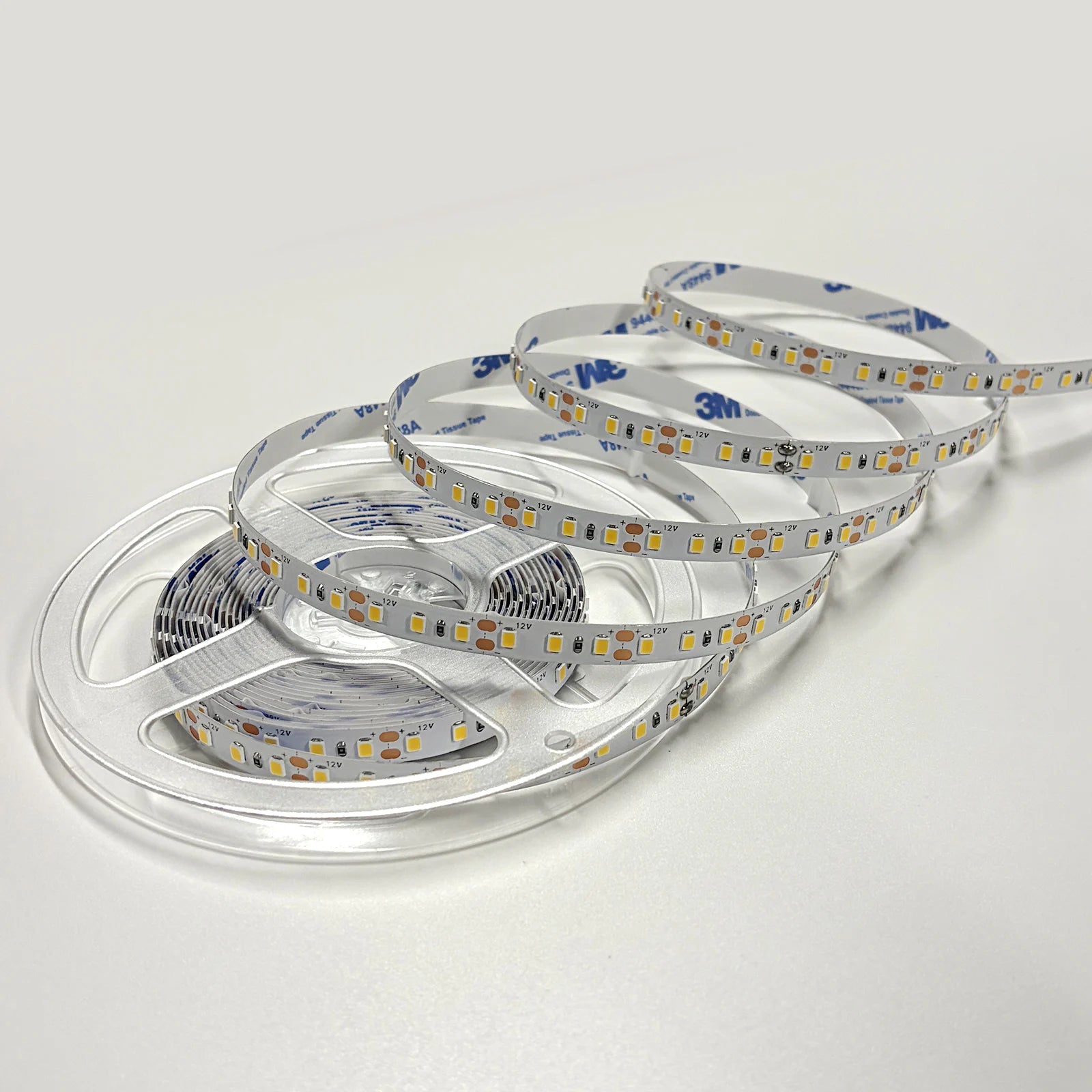

| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at marked cut points. Pair with a 12V constant-voltage driver rated for the total strip wattage with at least 20% reserve. Add feed points on runs over 5m where voltage drop becomes visible.

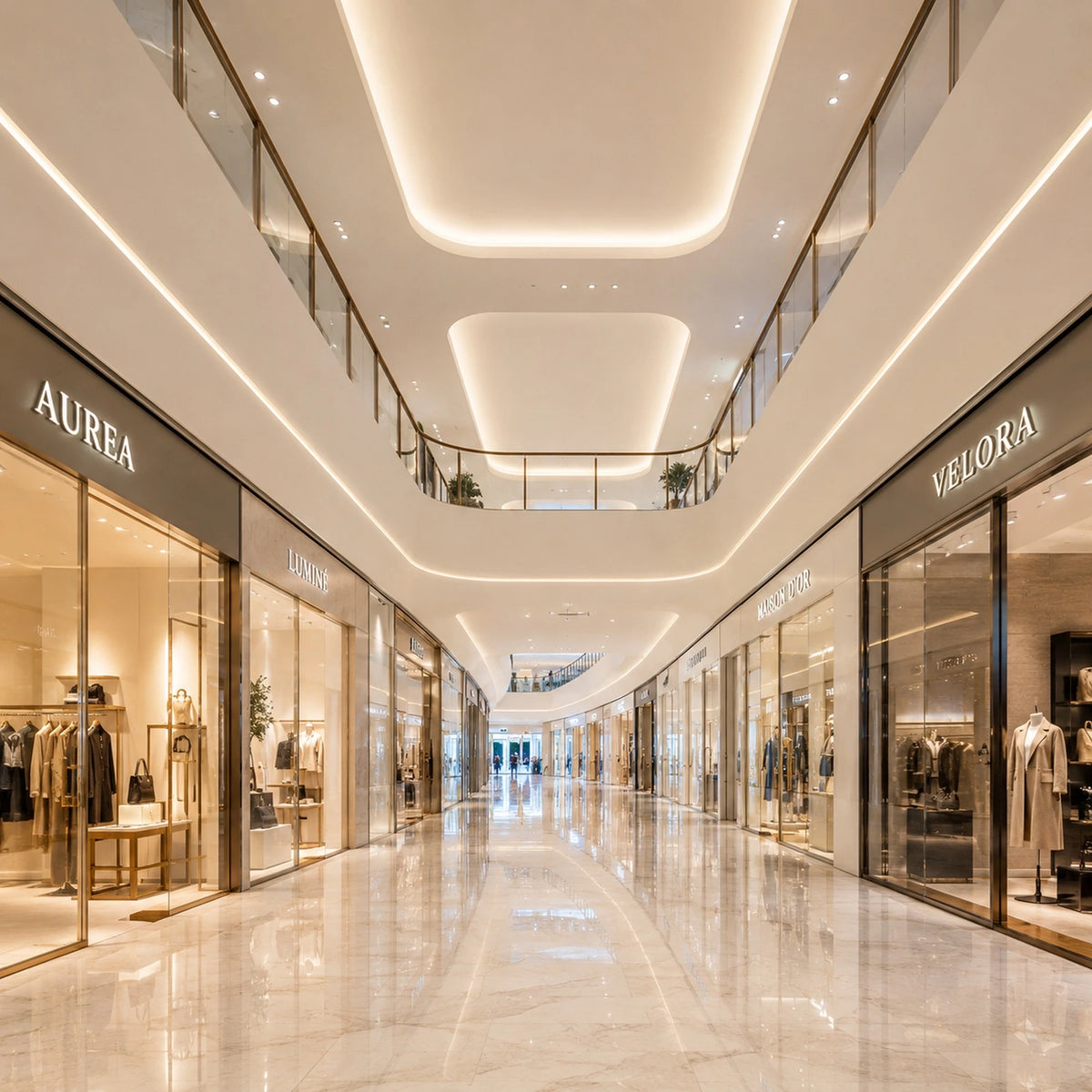

Recommended Applications
- Cabinet, wardrobe, shelving, and furniture lighting in residential interiors
- Under-counter, under-cabinet, and retail display lighting in kitchens and commercial environments
- Architectural accent, cove, and perimeter lighting compatible with 12V DC low-voltage systems
Purchase Options and Customization
Select the required color temperature or color mode and the appropriate IP20 non-waterproof or IP67 waterproof construction. The standard length is 5m Reel / 16.4ft. Custom size, CCT, power, adhesive backing, cable, connector, packaging, and project quantities can be quoted separately.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
