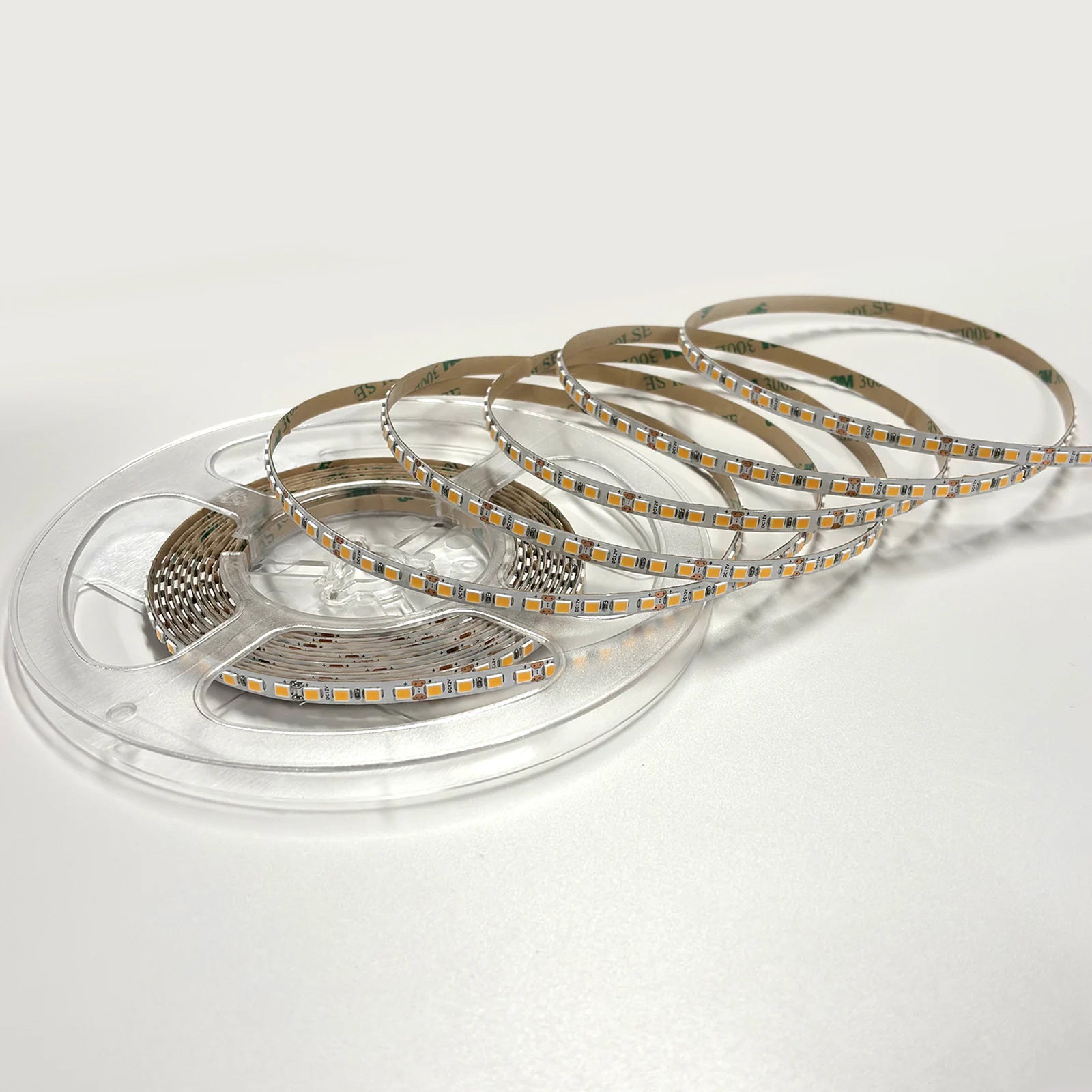

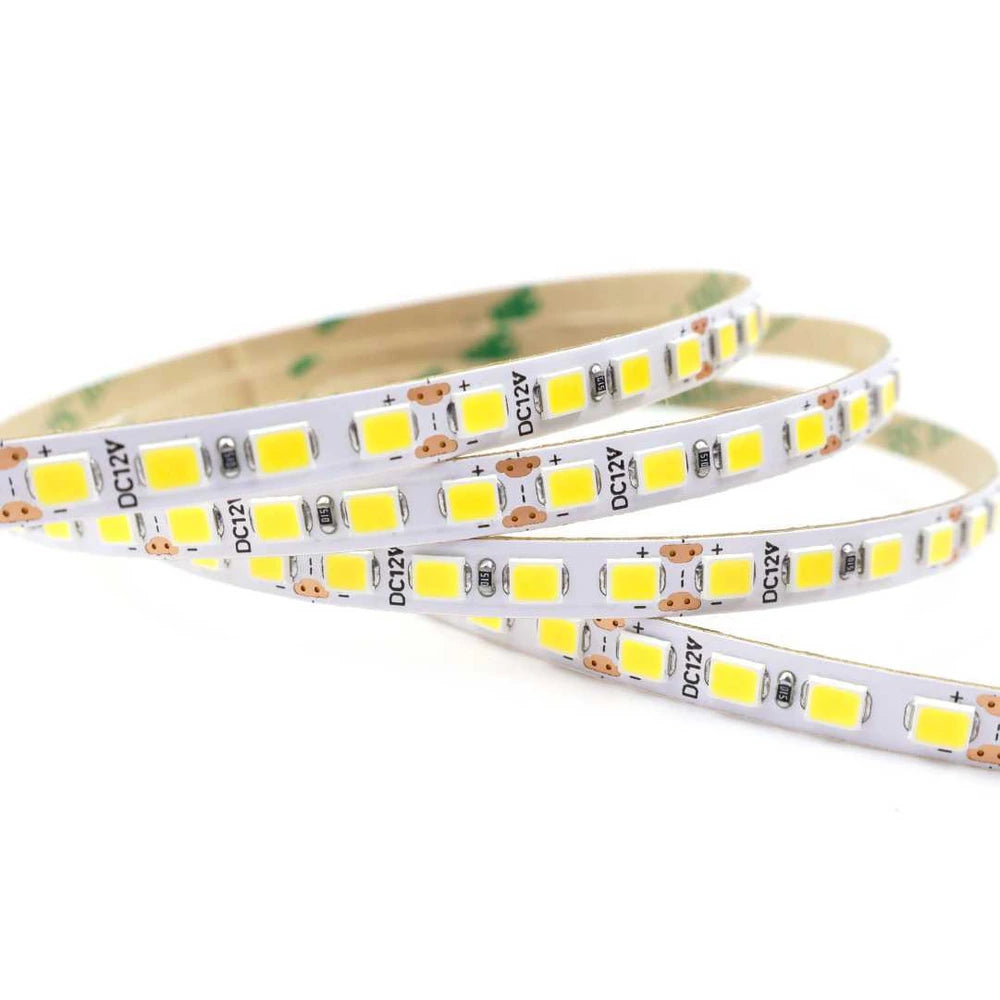

5mm SMD 2835 High-Efficacy White LED Strip Light, 168 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
At 168 LEDs per meter and 11W/m on a slim 5mm 12V board, this is the highest-output, highest-density 5mm 12V white strip in the range — built for bright, dotless accent lighting where a narrow profile still has to deliver serious light.
Why Choose This LED Strip?
- Maximum density: 168 LEDs/m for the smoothest line in the 5mm 12V range.
- High efficacy: 11W/m with up to 185 lm/W in a slim 5mm format.
- Dotless up close: tight spacing hides individual LEDs in shallow diffusers.
- 12V wiring: simple to power for demanding short accent runs.
Technical Specifications
| Catalog Model | 2835-168-5mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 168 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | 11W/m |
| Luminous Efficacy | 140–185 lm/W |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 6500K |
| LED Spacing | 5.9 mm (0.23 in) |
| Cutting Interval | 23.8 mm (0.94 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Cut only at the marked cut points and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.

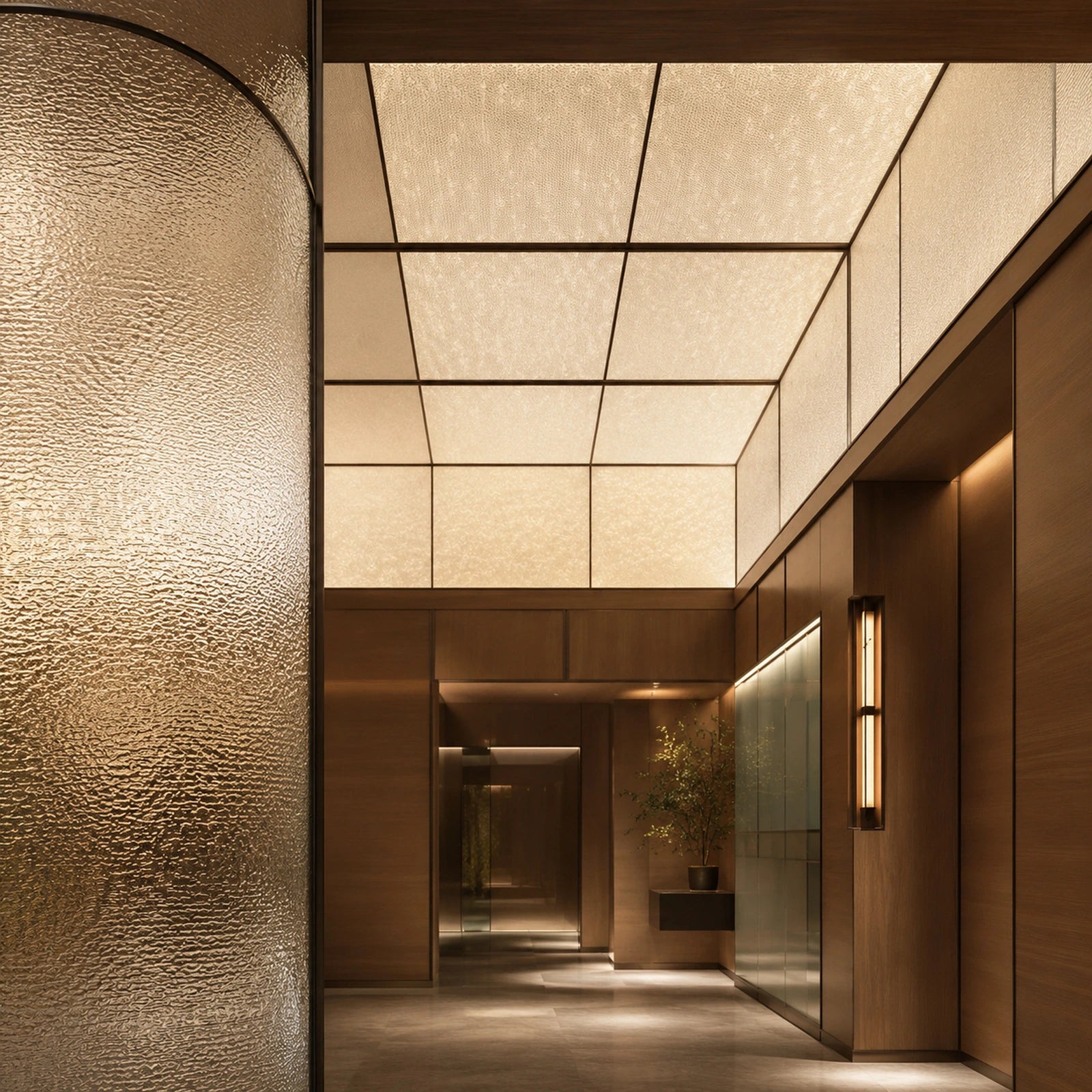

Recommended Applications
- Bright cabinet and showcase lighting
- Detail and task accent lighting
- Retail display where brightness matters
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
