This dual-white LED strip light pairs warm and cool channels on a 8mm 2835 board at 144 LEDs/m, tuned from cozy 2700K to crisp 6500K. Running on 24V constant voltage, it blends warm and cool white with a compatible dual-white controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Dual-white channels: Independent warm and cool white channels let you blend any color temperature between 2700K and 6500K.
- 8mm width: The 8mm 2835 board balances output and a low-profile footprint for clean, hidden installs.
- 144 LEDs/m layout: A 144 LEDs/m spacing gives smooth coverage for general and accent lighting.
- 24V operation: Constant-voltage 24V input works with standard 24V drivers, dimmers, and low-voltage lighting systems.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-144-8mm-24V-DUAL-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 144 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC24V |
| Power | 7.5W+7.5W/m |
| Luminous Output | 750lm/m |
| Color Rendering | 80/90 |
| Color / CCT | 3000K + 6500K Dual White |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

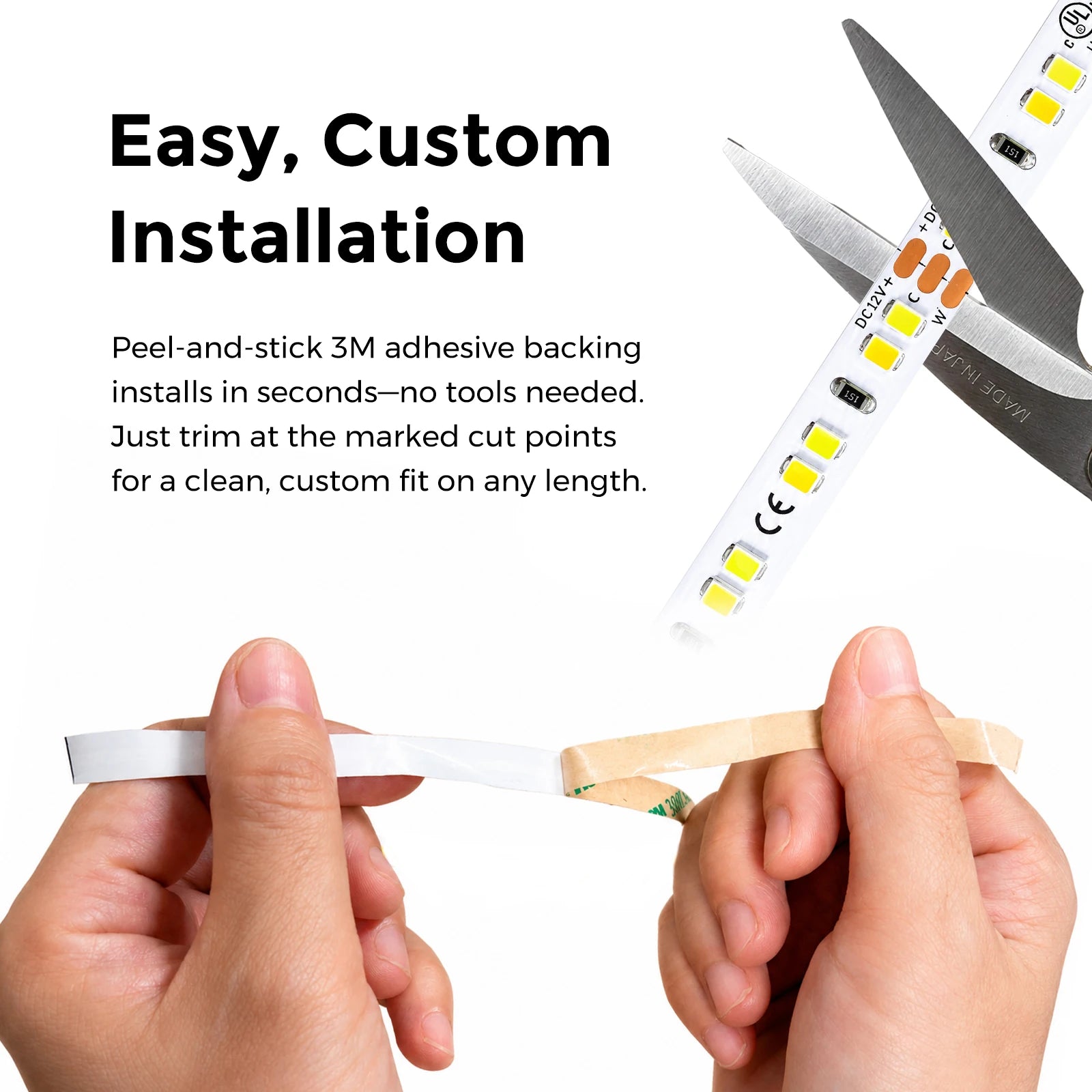

Cutting and Installation
Cut only at the marked cut points. Observe polarity, use the specified constant-voltage power supply, and test the strip before final mounting. For longer runs, add feed points where voltage drop becomes visible. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

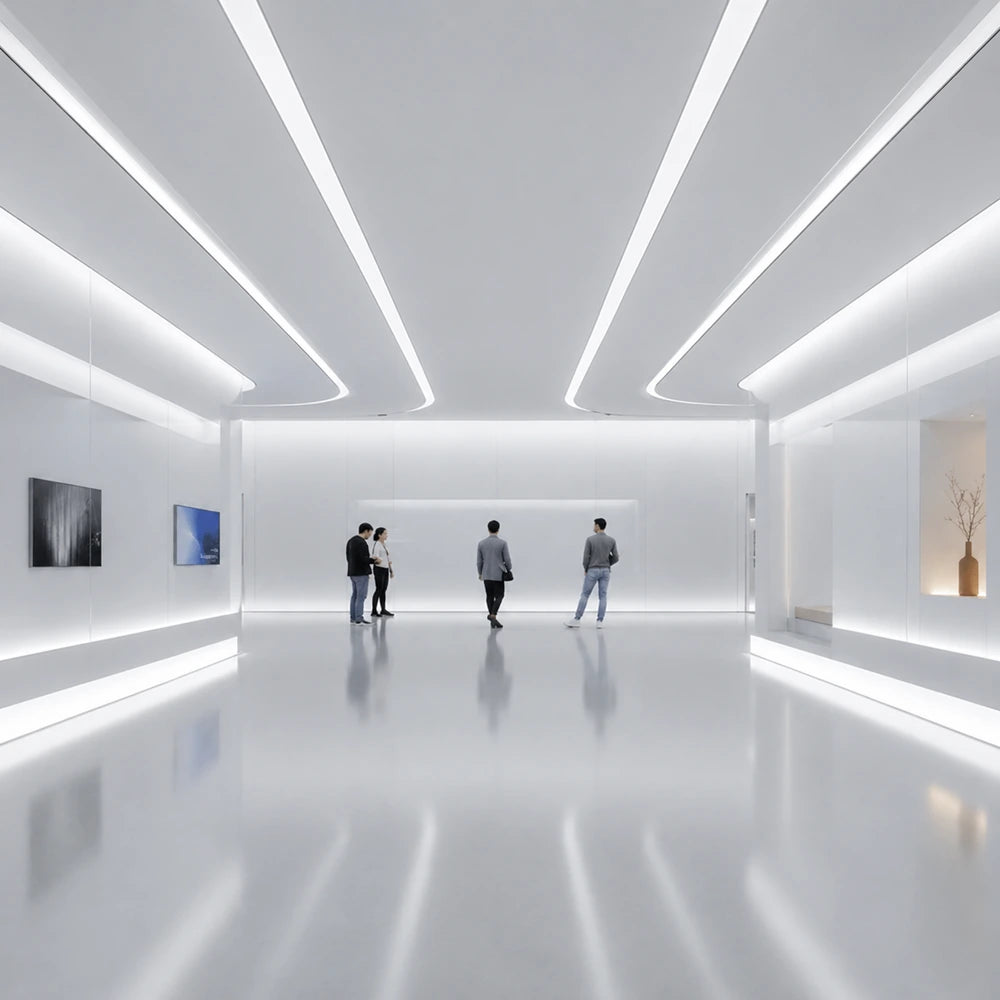

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and strip lighting for under cabinets
- Under counter light strip
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT, CRI, output level, PCB width, reel length, adhesive backing, cable, connector, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
