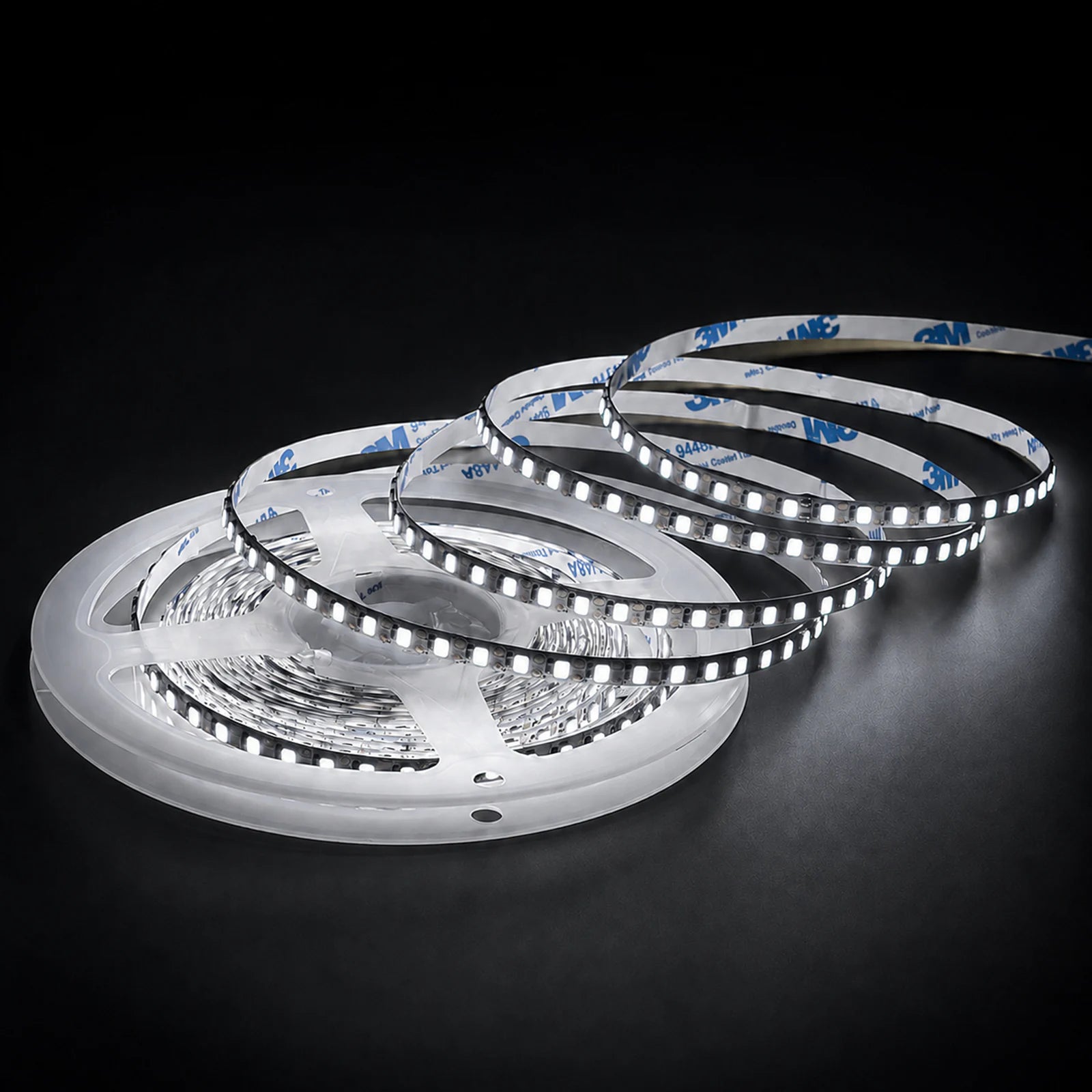

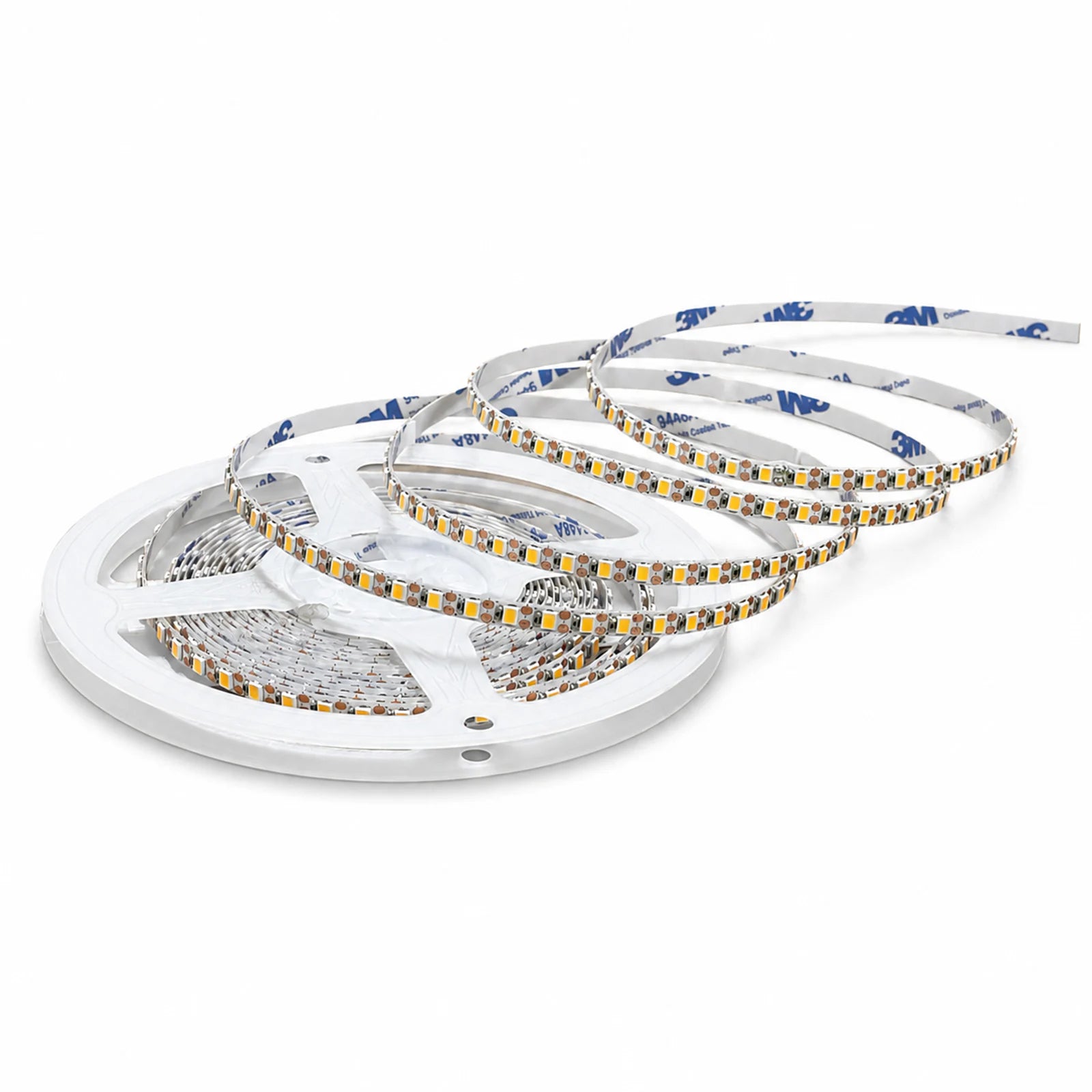

5mm SMD 2835 High-Efficacy White LED Strip Light, 144 LEDs/m, 12V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 5mm-wide 2835 white LED strip packs 144 LEDs per meter on a 12V circuit, giving you tighter LED spacing and smooth, dotless light in a slim profile — a good fit for shorter accent runs, cabinetry, and display work.
Why Choose This LED Strip?
- Denser 144 LEDs/m: tighter spacing for smoother light in shallow diffusers.
- Slim 5mm profile: slips into narrow channels and reveals.
- 12V simplicity: easy to power for short-run cabinet and display installs.
- High efficacy up to 180 lm/W: bright, even output with CRI 80/90 options.
Technical Specifications
| Catalog Model | 2835-144-5mm-12V-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 144 LEDs/m |
| PCB / Product Width | 5mm |
| Input Voltage | DC12V |
| Power | 7W/m |
| Luminous Output | 140–180 lm/W |
| Color Rendering | 90 |
| Color / CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 6500K |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting & Installation
Cut only at the marked cut points and observe polarity. Use a constant-voltage power supply matched to the strip and size it with at least 20% reserve. On long runs, add feed points where voltage drop becomes visible, and mount to a clean surface or aluminum channel for heat dissipation.
Recommended Applications
- Under-cabinet and shelf lighting
- Jewelry and retail display cases
- Short accent runs in millwork
Purchase Options & Customization
Sold on 5m (16.4ft) reels with IP20 non-waterproof or IP67 waterproof construction. Bulk quantities and project-based configurations are available — contact us for volume pricing and custom builds.
Compliance
Manufactured to CE, RoHS, and UKCA standards, with UL-listed options available where applicable. Request certification details for your specific configuration.
