10mm WS2812 Addressable RGB COB LED Strip Lights, 160 LEDs/m, 5V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
This 5V WS2812 addressable RGB COB LED strip combines a high-density 160 LEDs/m COB design with individually addressable control. Each LED has its own built-in IC, allowing independent color control for smooth chasing, flowing, rainbow, pixel, and other programmable lighting effects.
Why Choose This Addressable COB LED Strip?
- Individually addressable: 1 LED 1 IC allows each LED to be controlled independently.
- WS2812 control: Built-in WS2812 IC with a simple 3-wire +5V / Data / GND connection.
- 160 LEDs/m: High-density COB construction creates a smooth, continuous-looking RGB light line.
- Fine cutting interval: Cut every 12.5mm / 0.49in at the marked cutting points.
- Dynamic RGB effects: Supports chasing, flowing, rainbow, pixel animations, and programmable effects with a compatible controller.
- 20W/m power: High-power 20W/m configuration for bright, dynamic addressable RGB lighting.
- Low-voltage 5V operation: Suitable for gaming setups, displays, signs, entertainment spaces, and custom pixel-lighting projects.
Technical Specifications
| Catalog Model | WS2812-160-10MM-5V-ADDRESSABLE-COB |
|---|---|
| LED Type | COB |
| IC Type | WS2812 |
| Color | Addressable RGB |
| Input Voltage | DC5V |
| LED Density | 160 LEDs/m |
| PCB Width | 10mm |
| Control | Individually Addressable, 1 LED 1 IC |
| Wire Type | 3-Wire: +5V / Data / GND |
| Cutting Interval | 12.5mm / 0.49in |
| Power | 20W/m |
| Beam Angle | 180° |
| Dimmable | Yes |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Rating | IP20 Non-Waterproof |
| LED Chip Brand | Sanan Optoelectronics |
| Rated Life | 50,000 Hours |
| Compliance | RoHS |
Cutting and Installation

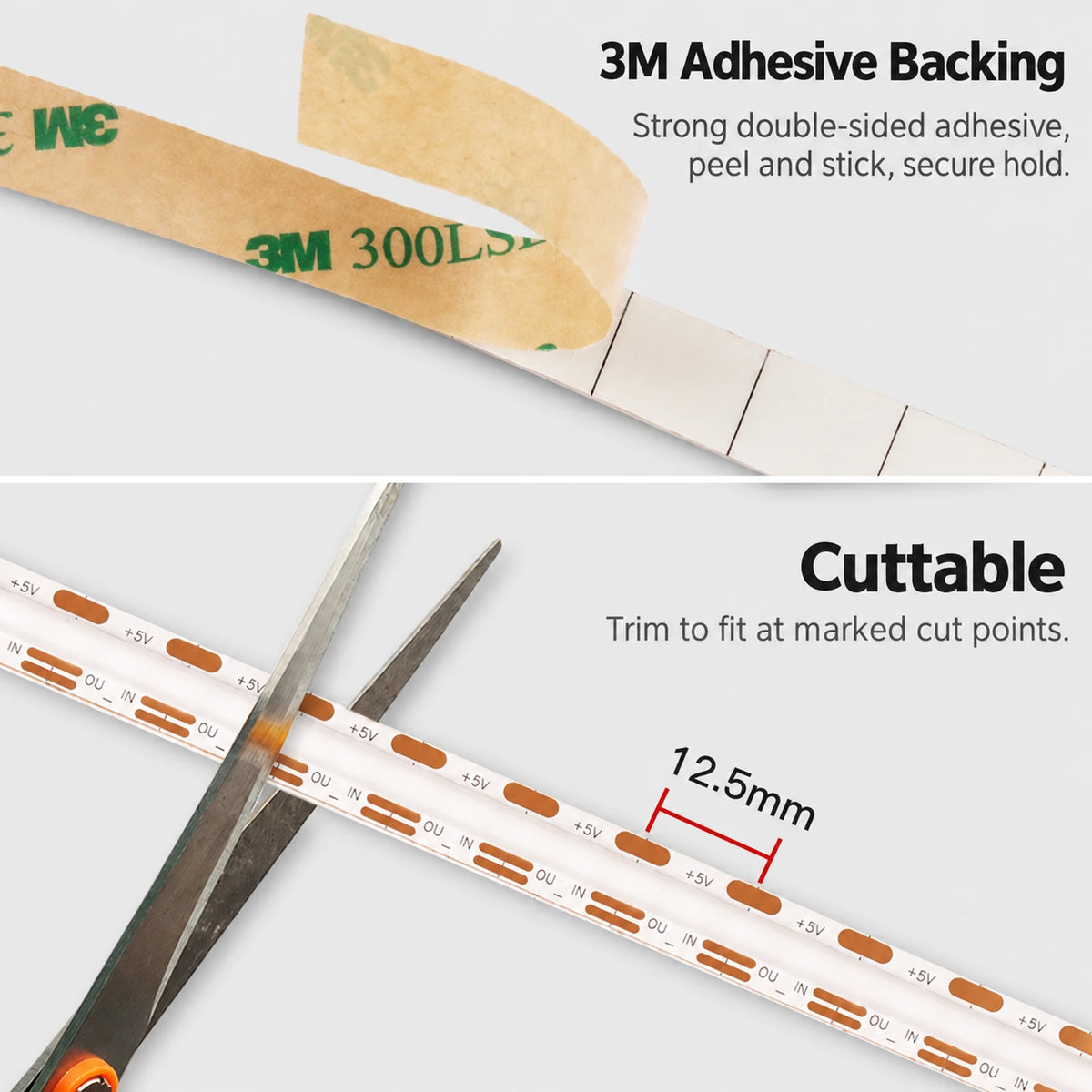

Cut the strip only at the marked 12.5mm / 0.49in cutting points. Connect +5V, Data, and GND to a compatible WS2812 addressable controller and a regulated 5V DC power supply. For longer runs or high-brightness operation, power injection may be required to reduce voltage drop.
Recommended Applications
- Gaming rooms and PC setups
- TV and home-theater ambient lighting
- Bars, KTV rooms, and entertainment spaces
- Retail displays and showcase lighting
- Signs and decorative lighting
- Programmable pixel-lighting projects
Purchase Information
Standard length is 5m Reel / 16.4ft with a 20W/m power rating. A compatible WS2812 controller and regulated 5V DC power supply are required for operation.
Compliance
RoHS compliant. Contact us for project-specific product documentation or technical support.
