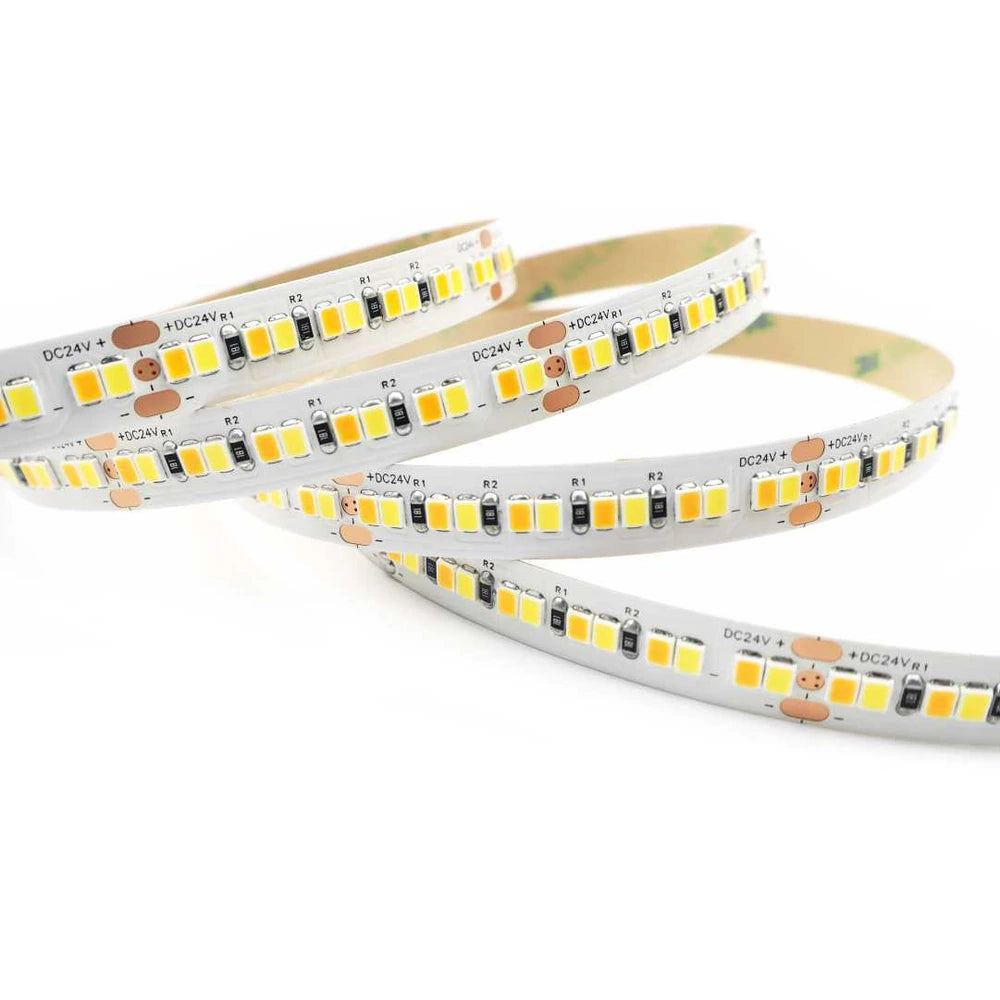

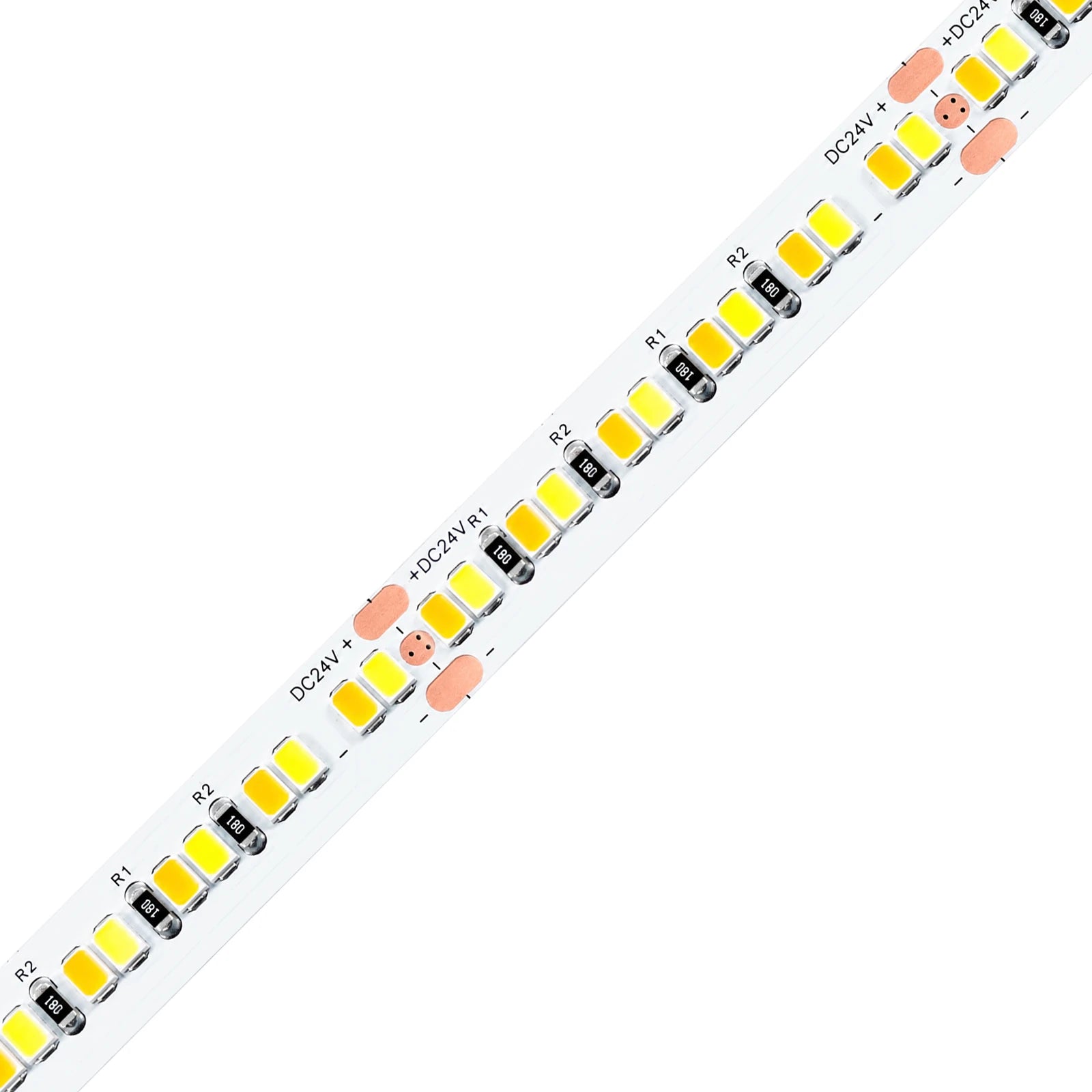

8mm SMD 2835 Dual-White LED Strip Light, 240 LEDs/m, 24V
Couldn't load pickup availability
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
With a dense 240 LEDs/m layout, this dual-white LED strip light produces a smooth, dot-free line of light on a 8mm 2835 board. Running on 24V constant voltage, it blends warm and cool white with a compatible dual-white controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Dual-white channels: Independent warm and cool white channels let you blend any color temperature between 3000K and 6500K.
- 8mm width: The 8mm 2835 board balances output and a low-profile footprint for clean, hidden installs.
- High-density 240 LEDs/m: Tightly spaced 240 LEDs/m minimize hot spots for an even, dot-free line of light, even close to a diffuser.
- 24V operation: Constant-voltage 24V input works with standard 24V drivers, dimmers, and low-voltage lighting systems.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-240-8mm-24V-DUAL-WHITE |
|---|---|
| LED Type | 2835 |
| LED Density | 240 LEDs/m |
| PCB / Product Width | 8mm |
| Wire Configuration | 3-Wire |
| Input Voltage | DC24V |
| Power | Up to 19W/m |
| Luminous Output | 827/1071lm/m |
| Color Rendering | 97 |
| Color / CCT | 3000K + 6500K Dual White |
| LED Spacing | 4.2 mm (0.17 in) |
| Cutting Interval | 50 mm (1.97 in) |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |
Cutting and Installation
Cut only at the marked cut points. Connect the strip to a compatible CCT controller and the specified constant-voltage power supply, observing the channel and polarity markings. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

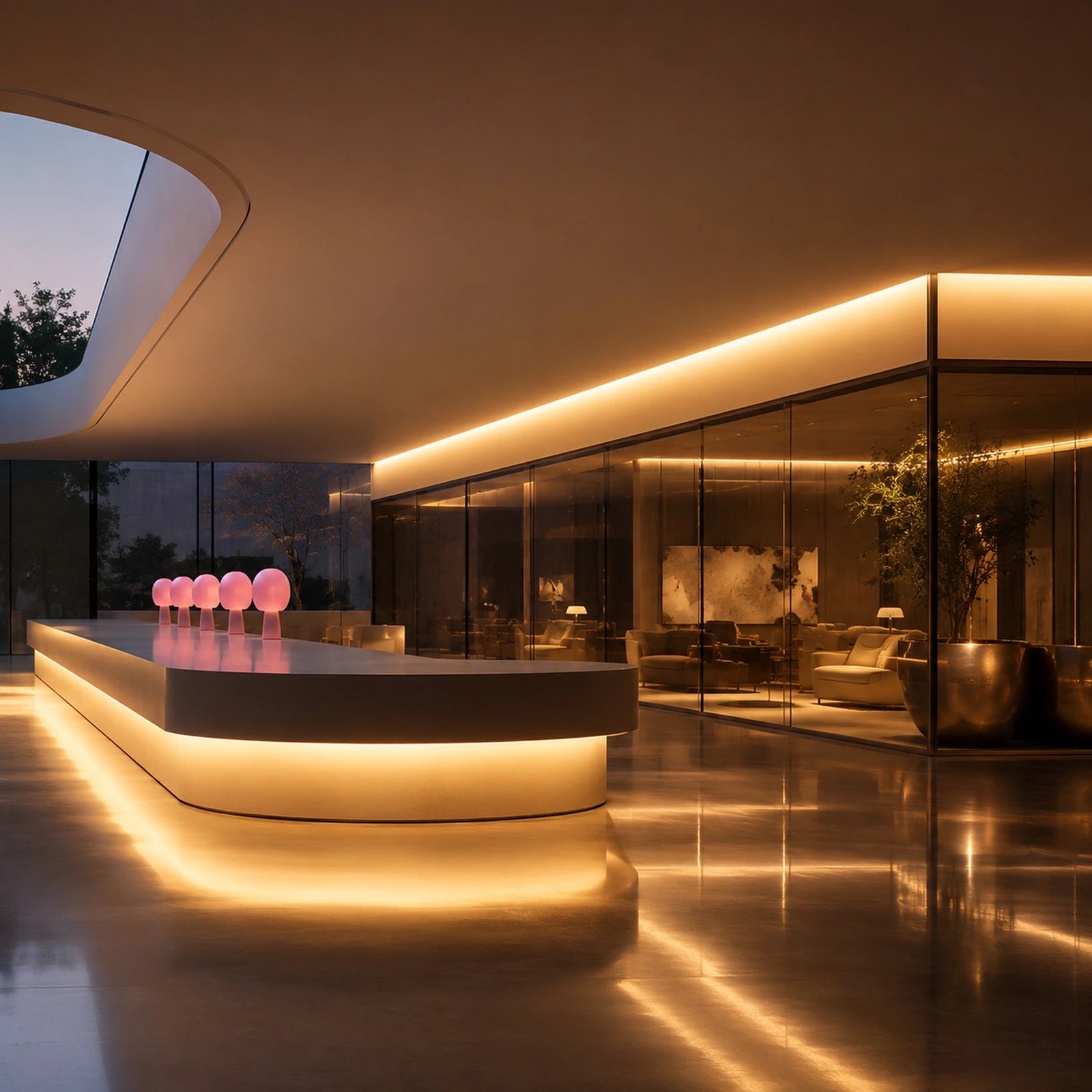

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and led strips for display cases
- Undercabinet led strips
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT range, voltage, PCB width, controller and connector arrangement, reel length, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
