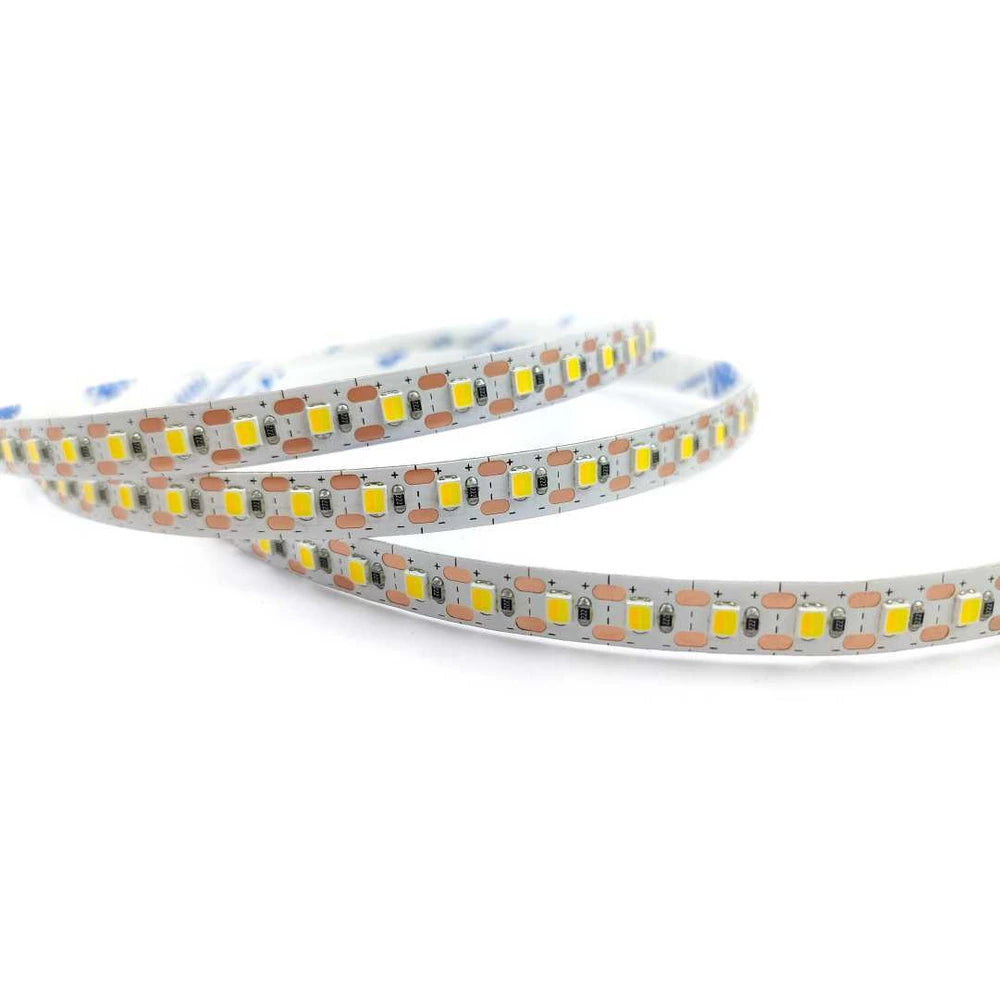

This 2-wire single-LED cuttable 2-in-1 tunable white LED strip light on a 8mm board lets you trim to length at every LED, so it fits short cabinets, steps, and custom runs exactly — and it accepts 5V, 12V, or 24V input. Running on 5V/12V/24V constant voltage, it dims from warm to cool white with a compatible CCT controller — a practical pick for kitchen led strip lights, under cabinet led strip lighting, and accent runs throughout the home.
Why Choose These LED Strip Lights?
- Warm-to-cool tunable white: Two white channels on one strip adjust from 2700K to 6500K with a CCT controller — warm ambient, neutral, or cool task light on demand.
- 8mm width: The 8mm 2835 board balances output and a low-profile footprint for clean, hidden installs.
- 120 LEDs/m layout: A 120 LEDs/m spacing gives smooth coverage for general and accent lighting.
- 5V/12V/24V operation: Constant-voltage 5V/12V/24V input works with standard 5V drivers, dimmers, and low-voltage lighting systems.

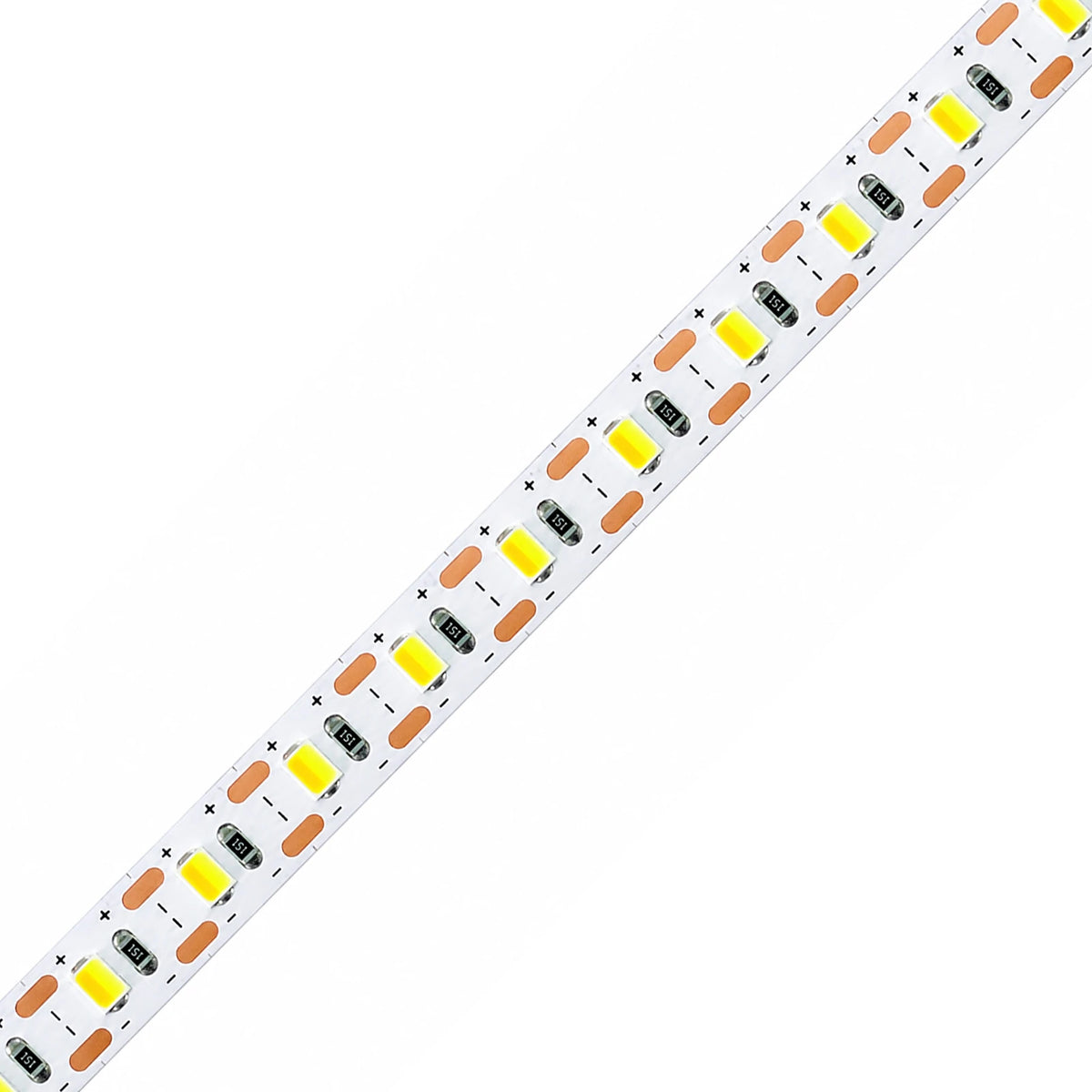

- Cut at every LED: Single-LED cutting points let you trim the strip to the exact length of each run with minimal waste.
- Certified & compliant: Carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP marks for residential and commercial installs.
- IP20 or IP67 options: Choose open IP20 for dry interiors or IP67 encapsulation for damp and wet locations.
- Custom CCT & lengths: Order custom color temperature, length, power, connectors, and adhesive backing for project quantities.
Technical Specifications
| Catalog Model | 2835-120-8mm-12V-CCT |
|---|---|
| LED Type | 2835 |
| LED Density | 120 LEDs/m |
| PCB / Product Width | 8mm |
| Input Voltage | DC5V/12V/24V |
| Power | 9W+9W/m |
| Luminous Output | 736/818lm/m |
| Color Rendering | 90/95 |
| Color / CCT | 2700K-6500K Tunable White |
| Standard Length | 5m Reel / 16.4ft |
| Waterproof Options | IP20 Non-Waterproof / IP67 Waterproof |

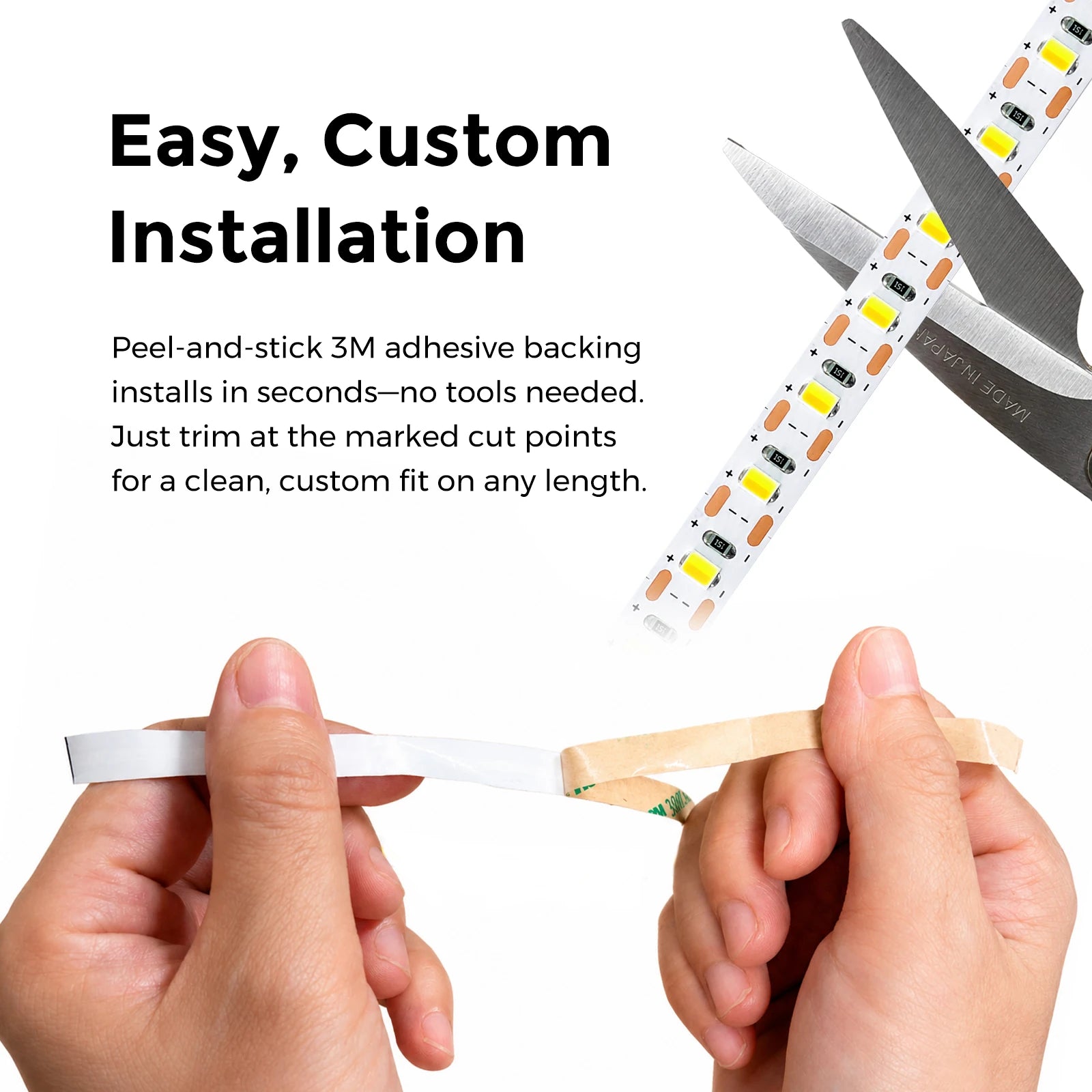

Cutting and Installation
Cut only at the marked single-LED positions. Use compatible connectors or solder pads, observe polarity, and test each custom length before final installation. Mount on a clean, suitable surface or compatible aluminum channel where required by the project. Size the power supply with at least 20% reserve capacity.

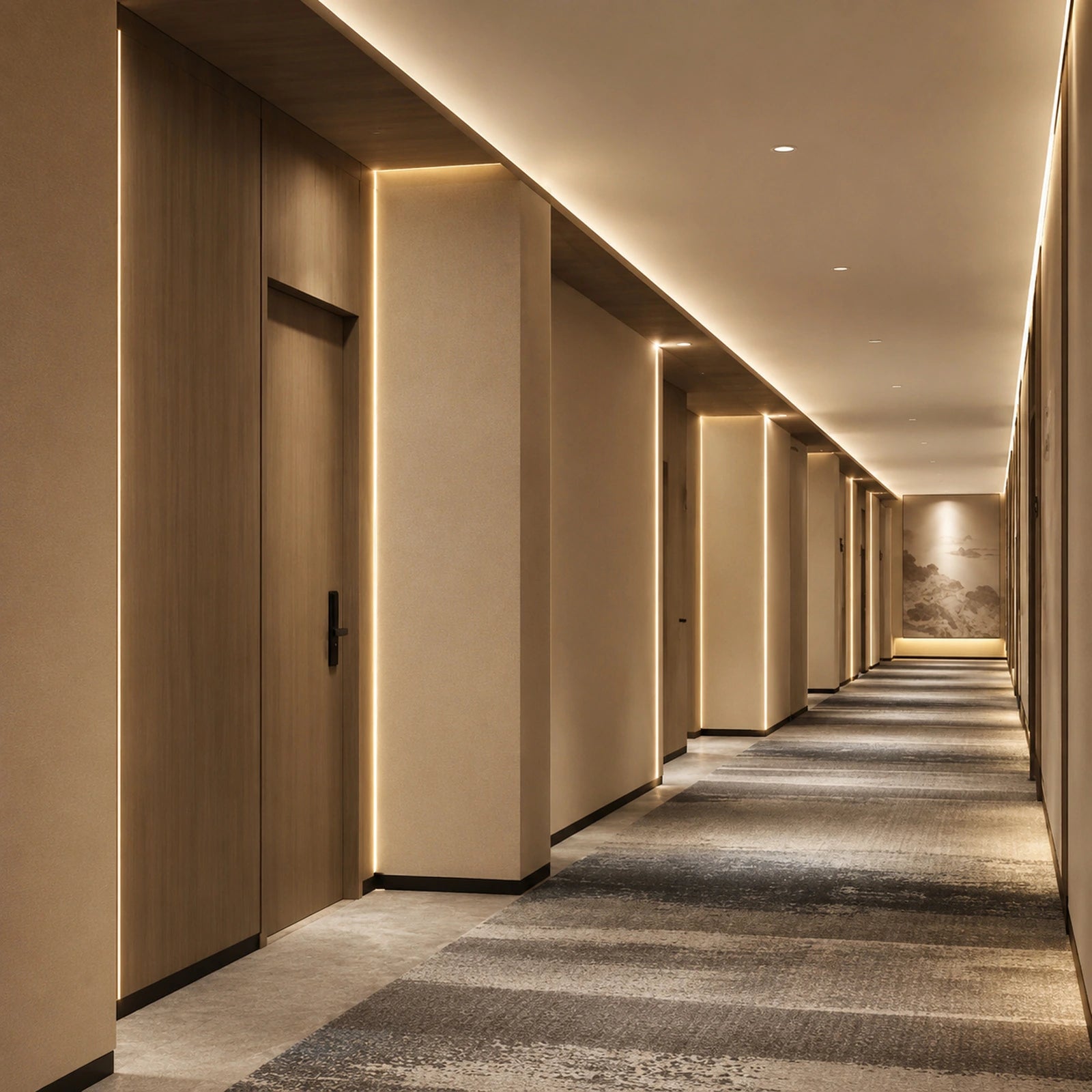

Recommended Applications
- Kitchen led strip lights, under cabinet led strip lighting, and led strip bookshelf
- Strip under counter lighting
- Residential and commercial interiors needing adjustable warm-to-cool white light
Purchase Options and Customization
The listed standard length is 5m Reel / 16.4ft. We can quote CCT range, voltage, PCB width, controller and connector arrangement, reel length, adhesive backing, and packaging for project quantities.
Compliance
This product carries UL Listed, CE, RoHS, CB, UKCA, PSE, and ErP compliance marks. Please contact us for certification documents or project-specific compliance support.
